Product Details
Material: Made of Mild Carbon Steel
Surface: Hot dip galvanized
Length and outside coil diamet can be supplied upon customers' requirements
Uses and Applications: Used for various security fencing and barriers.
Specification
| Razor Blade Type and Specification | ||||||
| Reference Type Number | Blade Style | Thickness(mm) | Wire Diameter(mm) | Barb Length(mm) | Barb Width(mm) | Barb spacing(mm) |

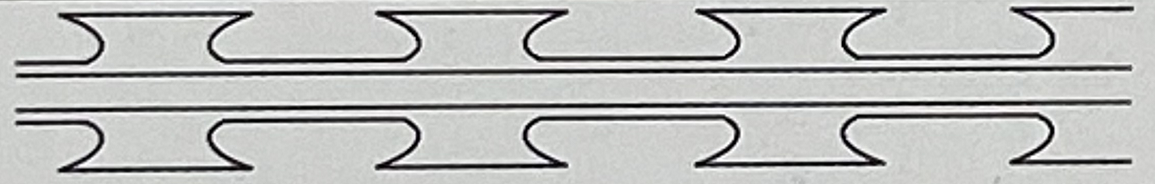

| BTO-12 |  |
0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |

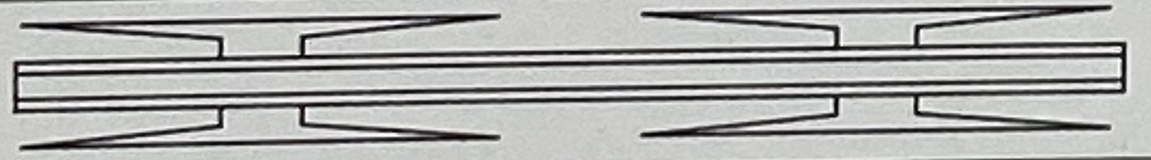

| BTO-15 |  |
0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |

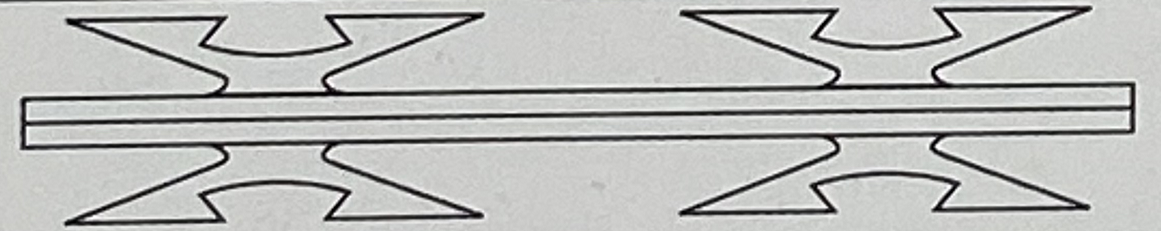

| BTO-22 |  |
0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |

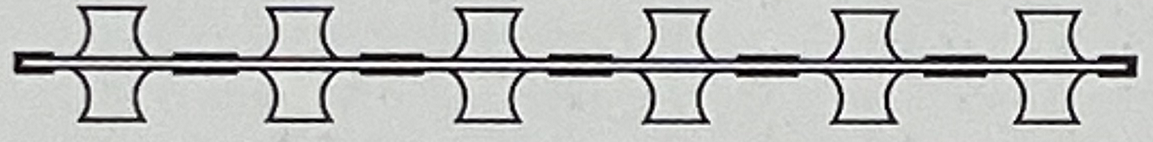

| BTO-30 |  |
0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |

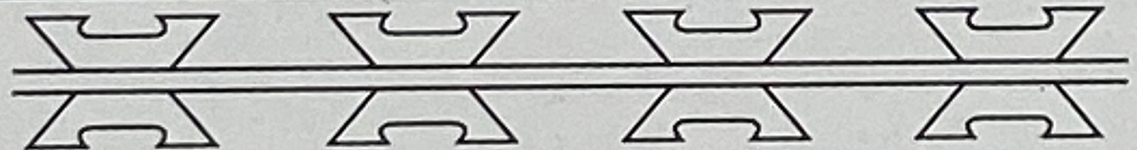

| BTO-25 |  |
0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 |

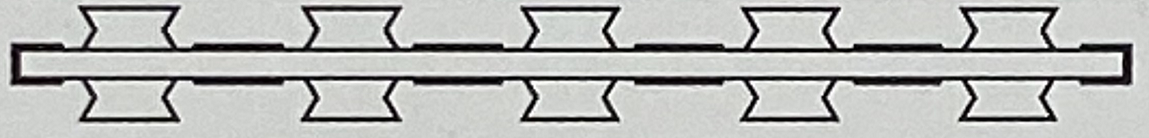

| BTO-60 |  |
0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |

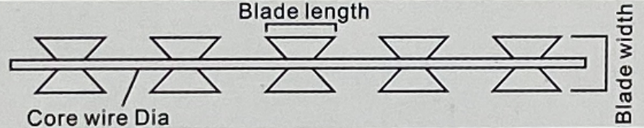

| BTO-65 |  |
0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±2 |
