Art no. 5003
Part no. CNSD-III

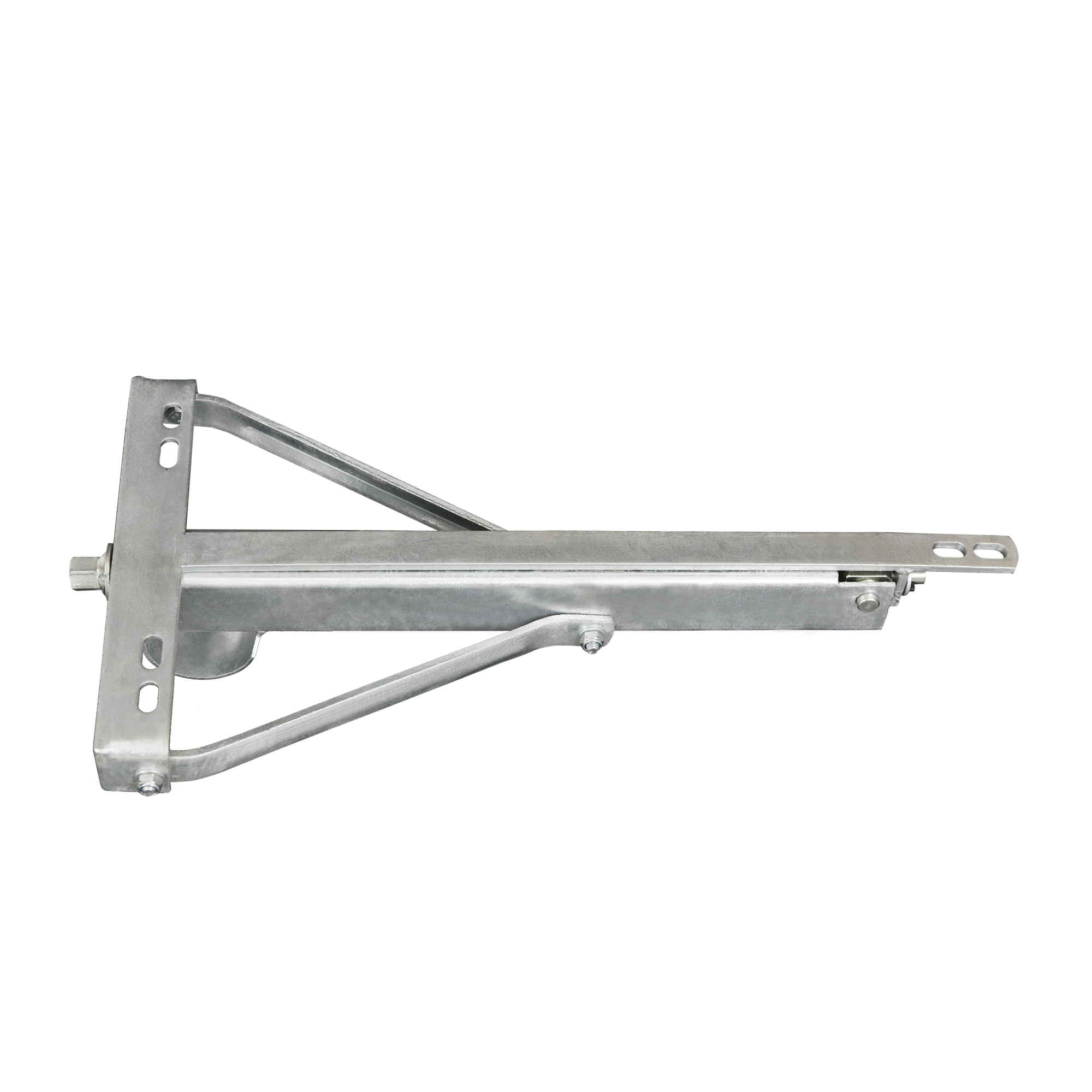

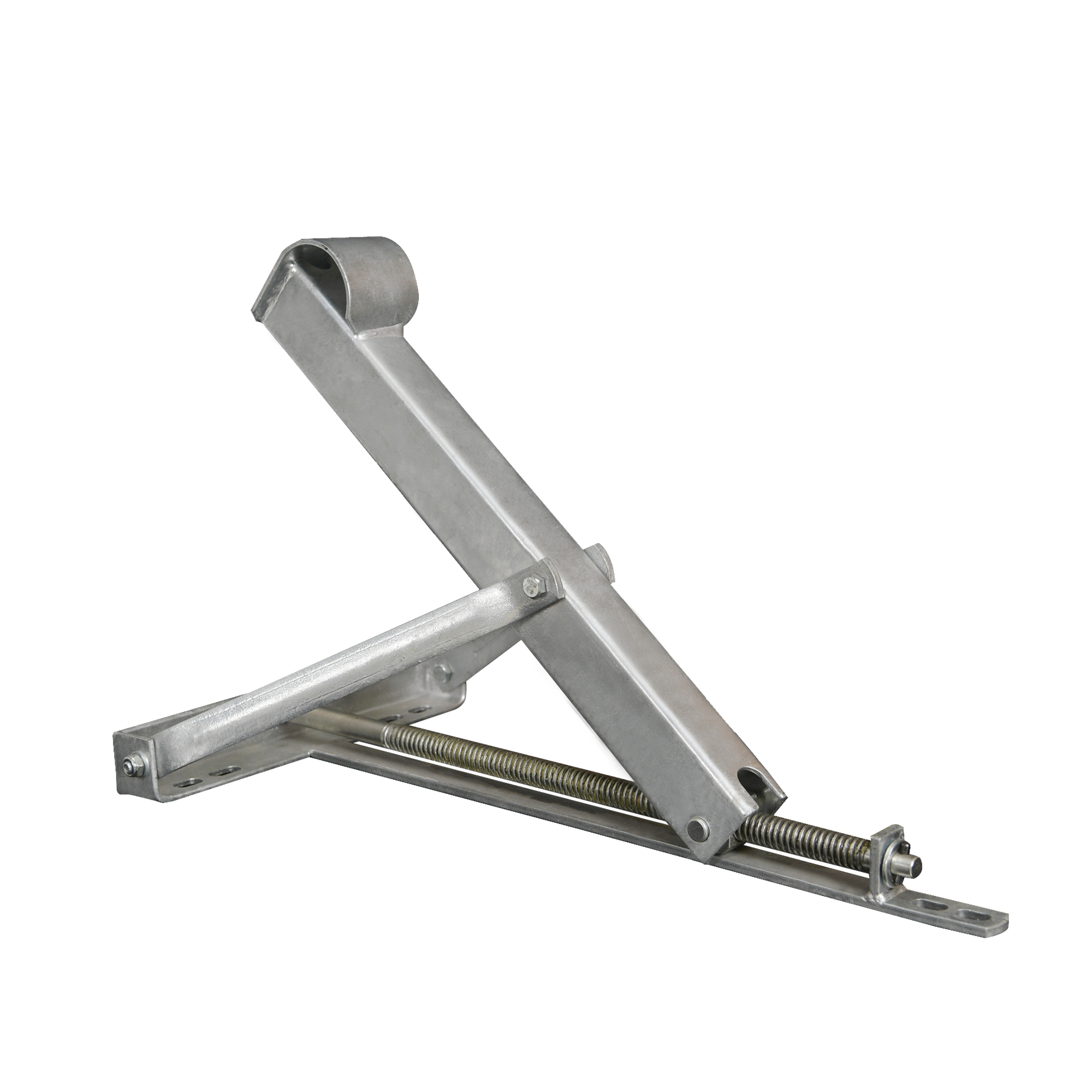

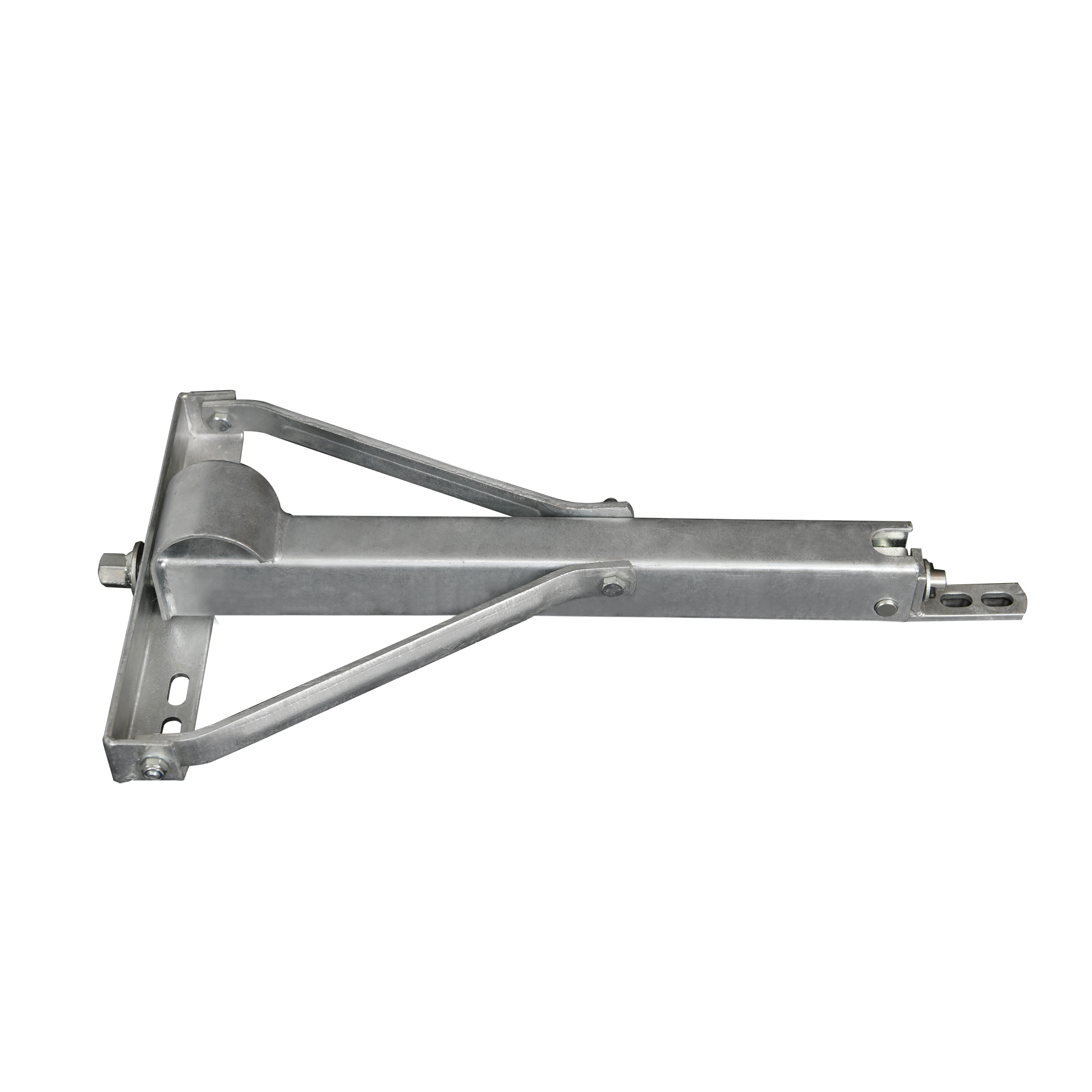

Description: Corner Steady, Left & Right Side are both available
Apply to: Caravan, Flat trailer, Box trailer, etc.
Feature:
Standard raw material with strict inspection ensures stable strength and safety operation.
High quality plating provides excellent appearance and reliable corrosion resistance.
Specification:
Application | Trailer and Caravan |
Load Capacity | 1800kgs (with 4pcs) |

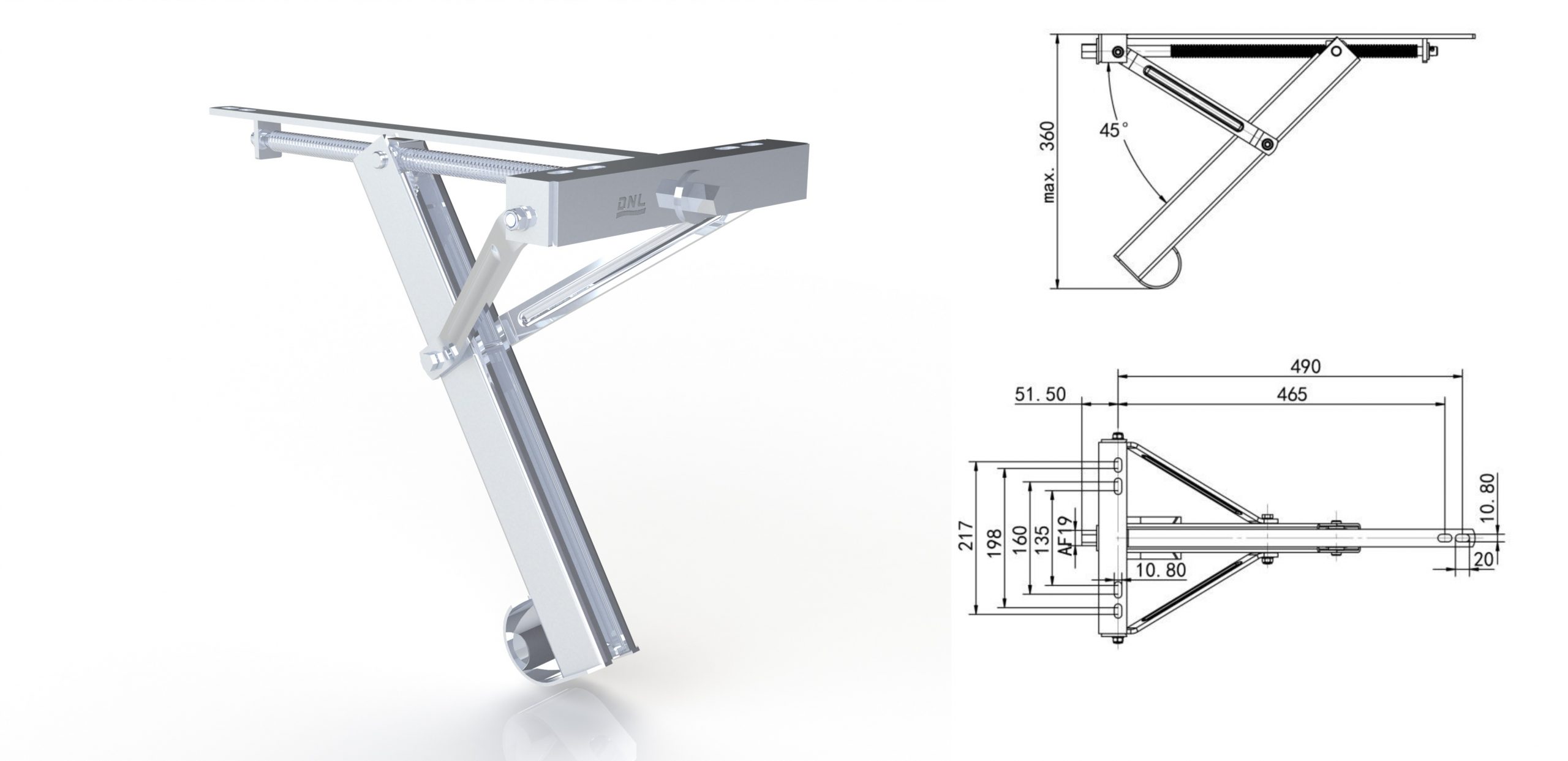

Extended length | 450mm |
Shaft | SW19 |
Weight of Unit Piece | 4.5kgs |
Finishing | Hot dip galvanized (Spindle Zinc Plating ) |
Packing | 160pcs per plywood case (123x102x113cm) |
