Art no.: 7110
Part no. : DJ10012SZ

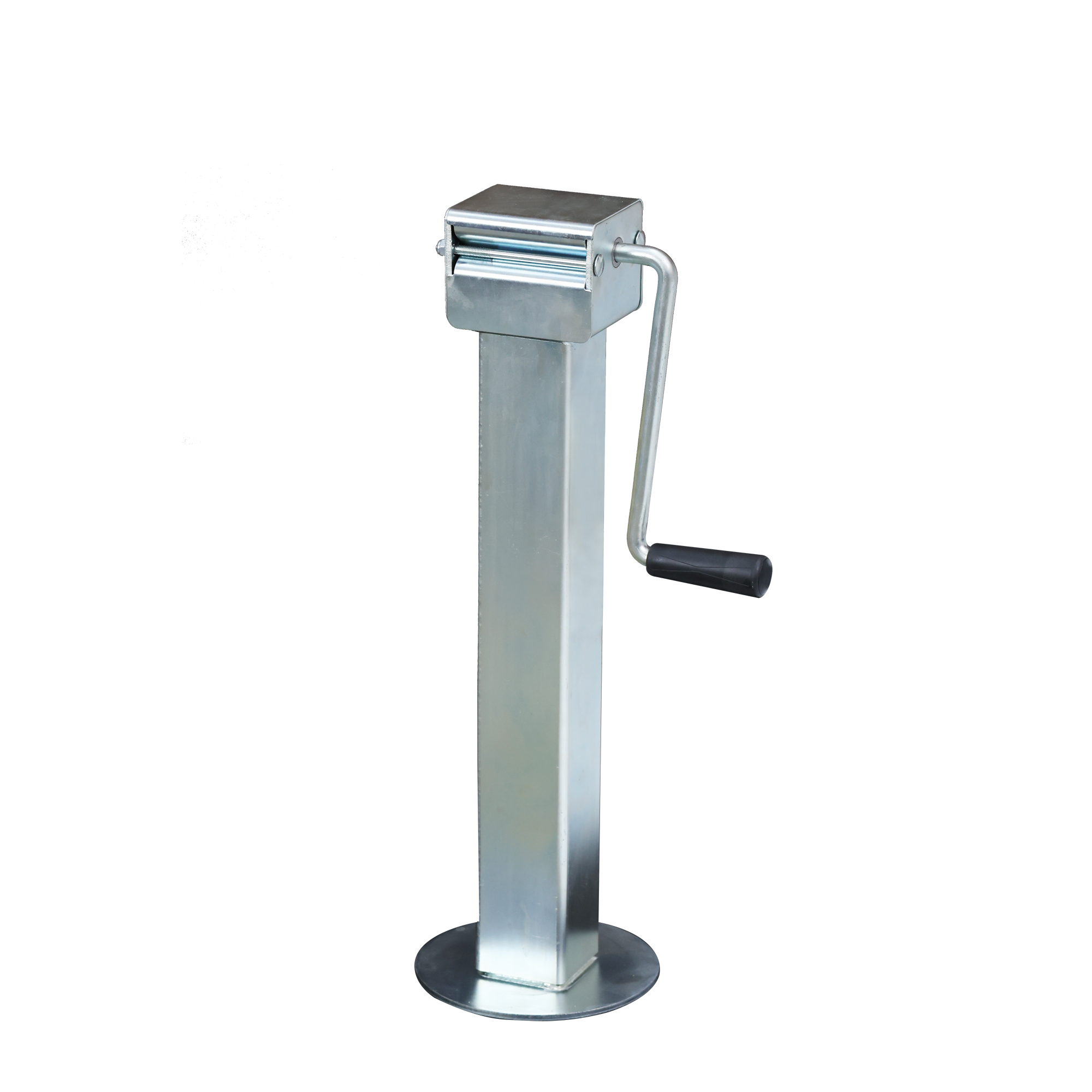

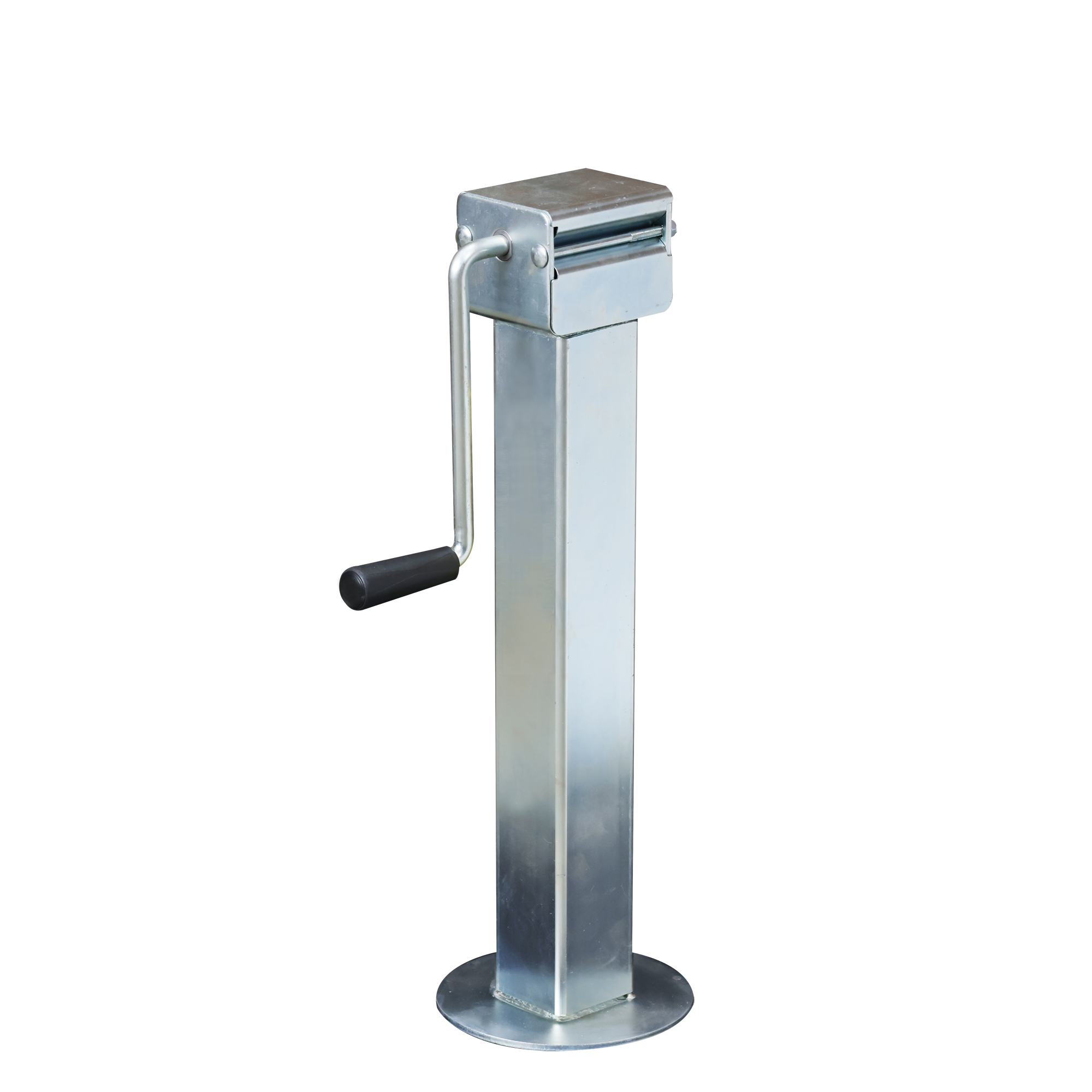

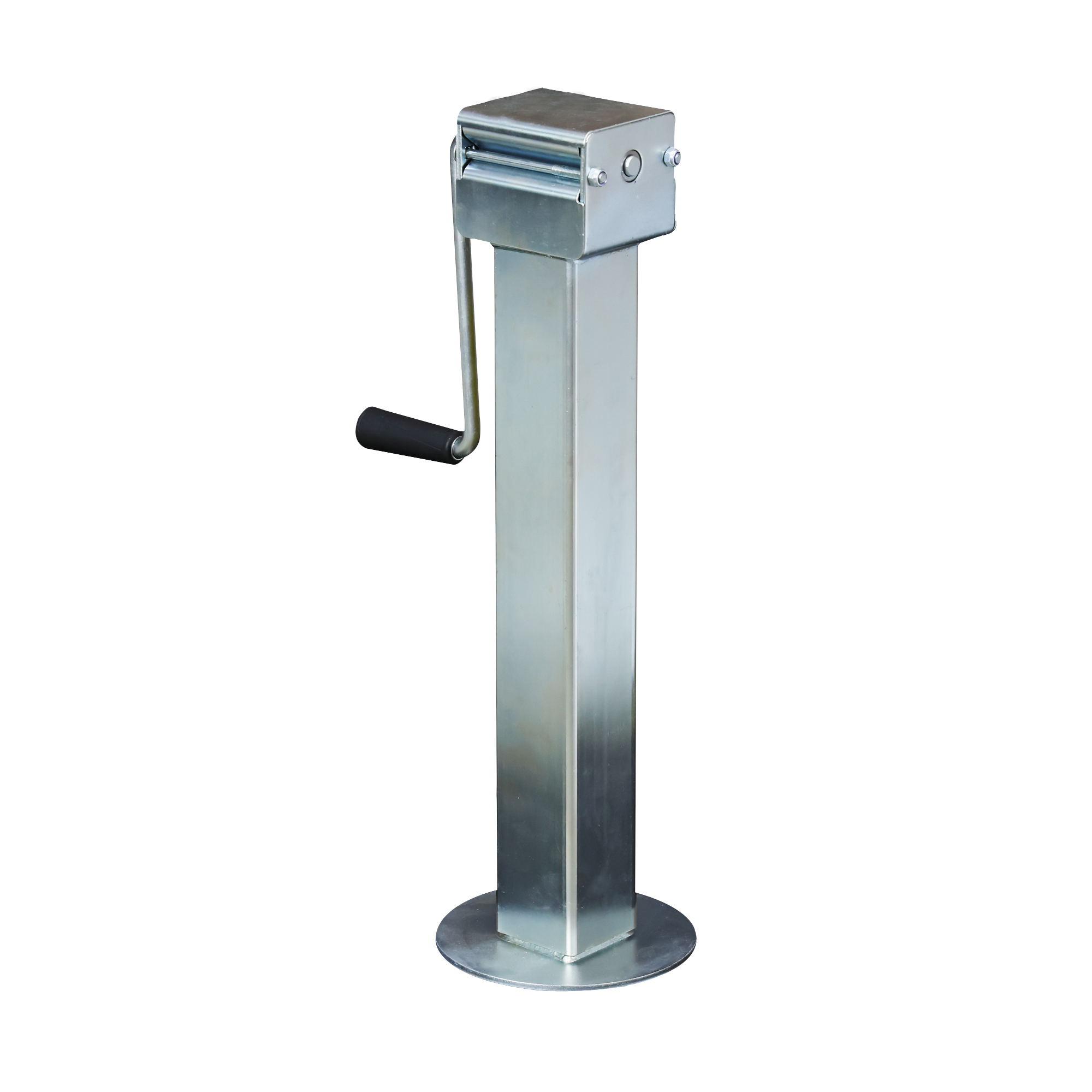

Description: 10000lbs Direct weld Heavy duty jack 15" travel
Apply to: Box trailer, Flat trailer,Construction trailers, Lives stock trailer, Transportation Trailer,Agriculture vehicle, Industry vehicle, Building vehicle, Road trailer, Commercial trailer, Heavy duty vehicle,etc.
Feature:
Ergonomic knob offers the best experience of operating easily, no feeling of tiredness.
The thicker outer tube with high quality raw material improves the stability and strength obviously.
High quality gears make your operation more smoothly and safely.
Reliable quality and stable performance of spindle & bearing extend the service life of products.

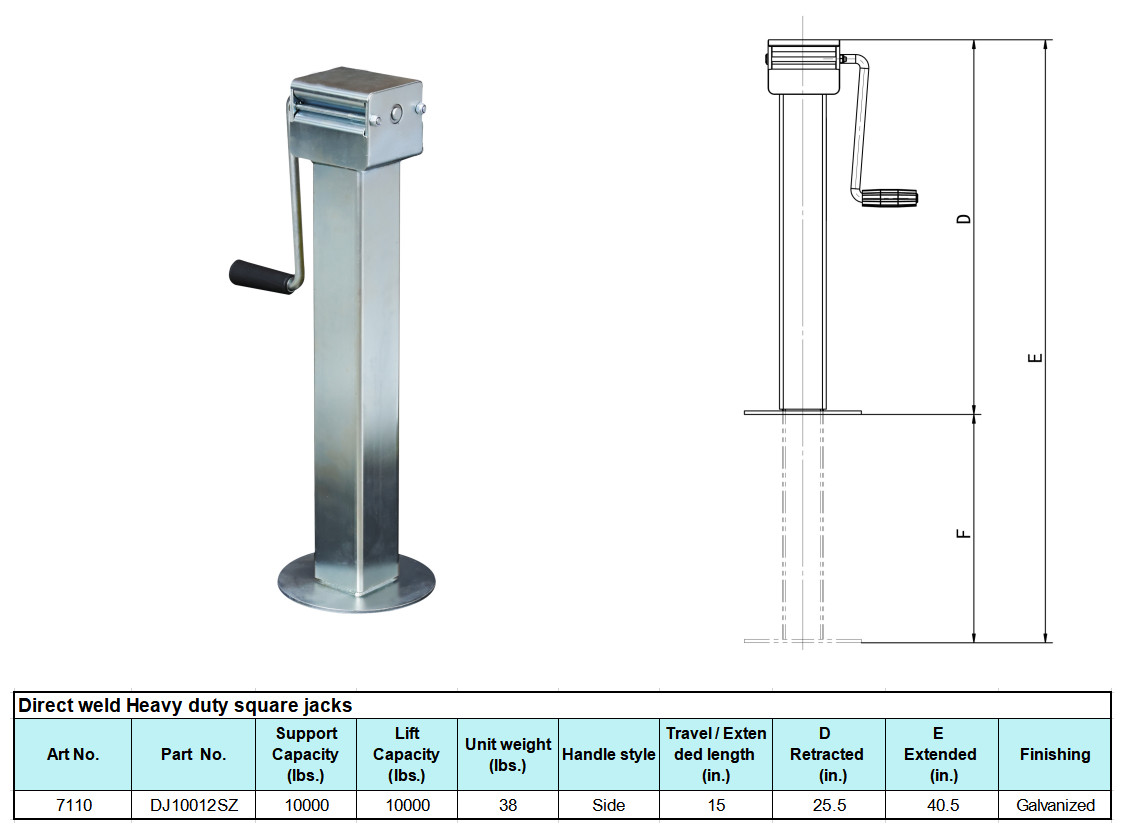

Specification
Tube Type | φ80mm |
Wind | Side wind handle |
Load Capacity | 10000lbs |
Length of Extension | 15” |
Retracted total length | 25.25” |
Unit Weight | 38lbs |
Brand | DNL |
Finishing | Outer and Inner body zinc plated. |
Packing | 60pcs per plywood case (110x110x120cm) |
