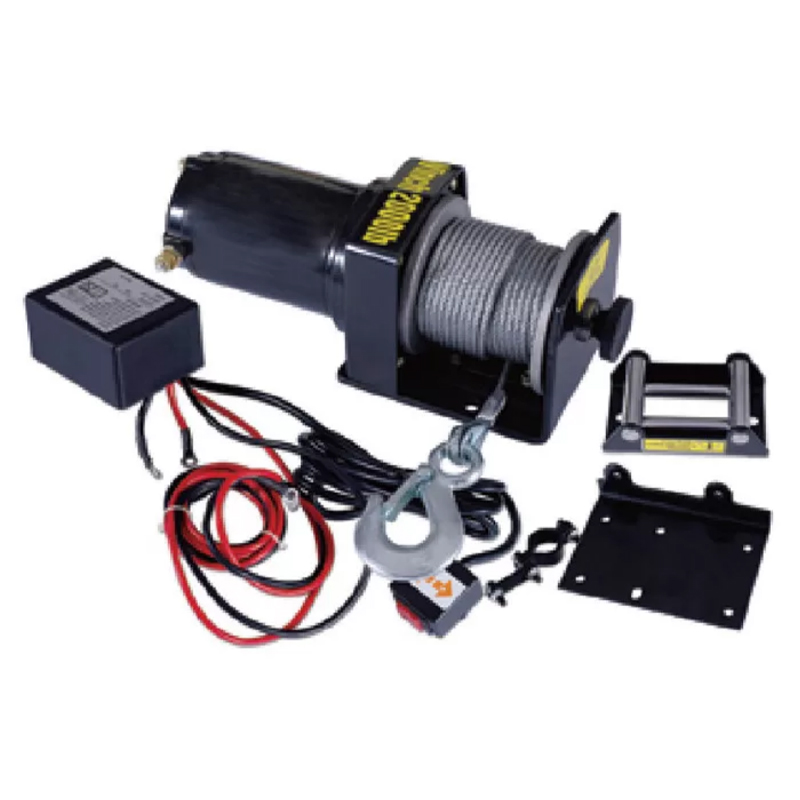

Model | EW2000C-1B(12V) |
Rated line pull | 2000lb (907kg) single line |
Motor | 0.7KW/0.9HP 12V, permanent magnet |
Gear reductions ratio | 153:1 |
Drum Dimensions | φ1.24"x2.88” (φ31.5mmx73mm) |
Cable (Dia X L) | φ5/32”x49’ (φ4mmx15m) |
Overall dimensions | 11.2”x4.1"x4.1" (285x105x105mm) |
Mounting bolt pattern | 3.13" (79.5mm) |
N.W. / G.W. | 16kg / 17kg |
Apply to:
Boat trailer, Warehouse, Building, Wharf, Etc.
Feature:
1.Features an all-metal planetary gear train plus mechanical and dynamic brake.
2.Free spooling clutch with ergonomic control.
3.Sealed solenoids guarantee all-weather protection.
4.Sealed handle switch and 10 feet remote. Including roller fairlead and mounting plate.
