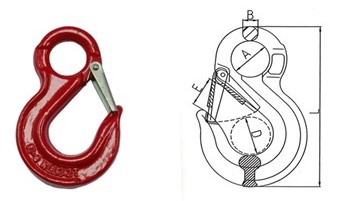

| ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | B±1.5(mm) | E±2(mm) | D±2(mm) | A±3(mm) | L±2(mm) |
| 6-8 | 0.3 | 1.12 | 4.48 | 9 | 21.5 | 20 | 20 | 108 |
| 7/8-8 | 0.4 | 2 | 8 | 11 | 27.5 | 24 | 25 | 133 |
| 10-8 | 0.9 | 3.15 | 12.6 | 15 | 27.2 | 38 | 38 | 167 |
| 13-8 | 2.2 | 5.3 | 21.2 | 19 | 38.5 | 51 | 43 | 213 |
| 16-8 | 3.2 | 8 | 32 | 23 | 42 | 62 | 50 | 255 |
| 20-8 | 5.8 | 12.5 | 50 | 24 | 44.6 | 74.8 | 63 | 305 |
| 22-8 | 9.2 | 15 | 60 | 32 | 70 | 68 | 62 | 348 |
| 26-8 | 13 | 21.2 | 84.8 | 35 | 84 | 84 | 64 | 394 |
| 32-8 | 18.5 | 31.5 | 126 | 37 | 102 | 100 | 88 | 480 |
1.Super alloy steel.
2.Quenched and Tempered.
3.Suitable for G80 EN818-2 chains.
4.100% Magnetic powder inspection.
5.Individually proof load test at 2.5 times WLL.
6.Fatigue test at 1.5 times WLL for 20,000 cycles.
7.Strict breaking test.
8.Surface treatment: Powder coated.
Professional transport.
Ideal for delivery and removal.
Drum moving and lifting.
Time and labor saving.
Stainless steel AISI316 or AISI304.
Full sizes available.
Forged, quenched and tempered.
High tensile strength.
