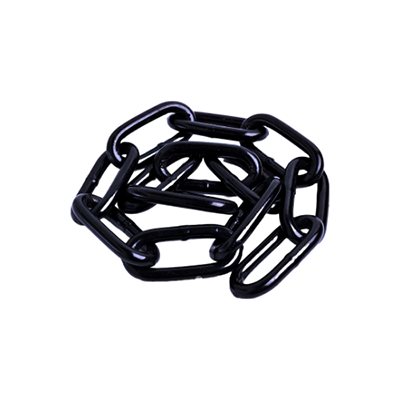

G80 Long Link Chain

Alloy steel.

100% proof load tested and 100% calibrated.

Product Details

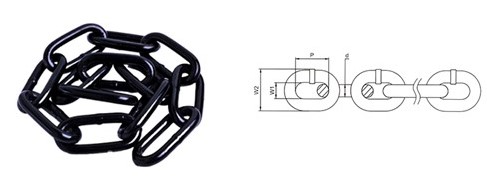

SIZE(mm)	d(mm)	P(mm)	W1 min.(mm)	W2 max.(mm)	Proof Load(kN)	Breaking load(kN)	Weight(kg/m)
6x35	6	35	10	22	22	44	0.64
9x53	9	53	15	33	49	98	1.42
11x64	11	64	18	40	77	153	2.18
13x80	13	80	22	51	106	212	3.01
16x100	16	100	26	66	161	322	4.45
19x100	19	100	27	68	227	454	6.5
22x120	22	120	37	84	304	608	8.8

Material: Alloy steel.
Finish: Black treated or painted.
Manufacturer's test certificate can be supplied as required.
100% proof load tested and 100% calibrated.
Every meter is stamped with manufacturer's ID Number, Grade Number can be marked as required.
