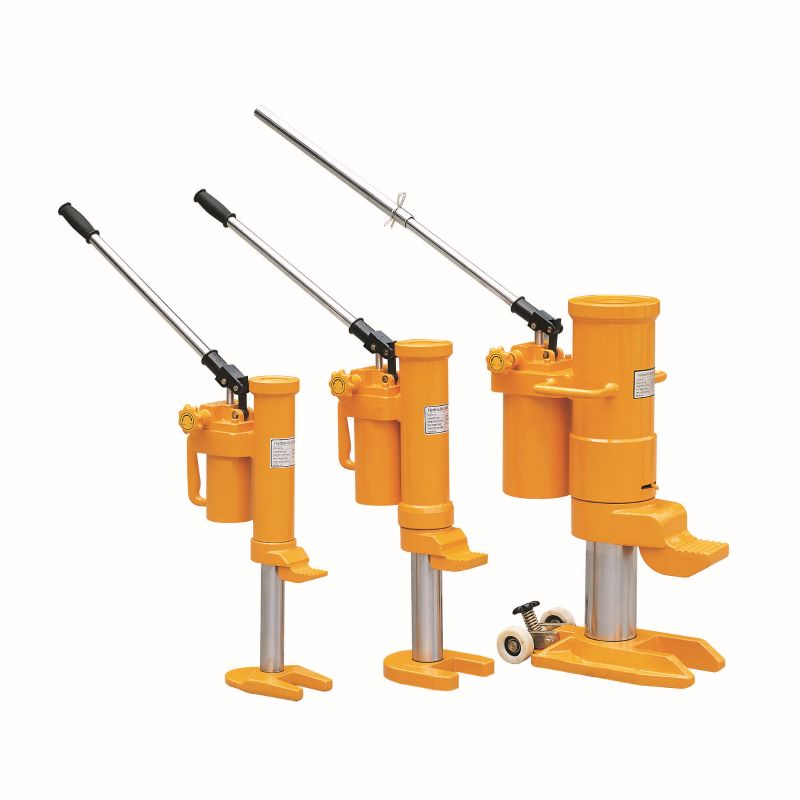

HM Hydraulic Jack

Compact and stable construction.

CE certified.

Product Details

Model	Capacity	Lifting Range of Foot	Lifting Range of Head	Max Lever Force	Weight
No.	kgs	mm	mm	kgs	kgs
HM50	5000	25-230	368-573	25	38
HM100	10000	30-260	420-650	35	40
HM250	25000	58-273	505-720	102	40

Compact and stable construction.
Can be used in any position.
The cylinder can rotate 360 degrees, two support surfaces, can be used widely.

Meet ASME/ANSI B 30.1.1986 standard, approved by CE certification.
Lowering speed can be accurately adjusted.
Pump lever is removable.
