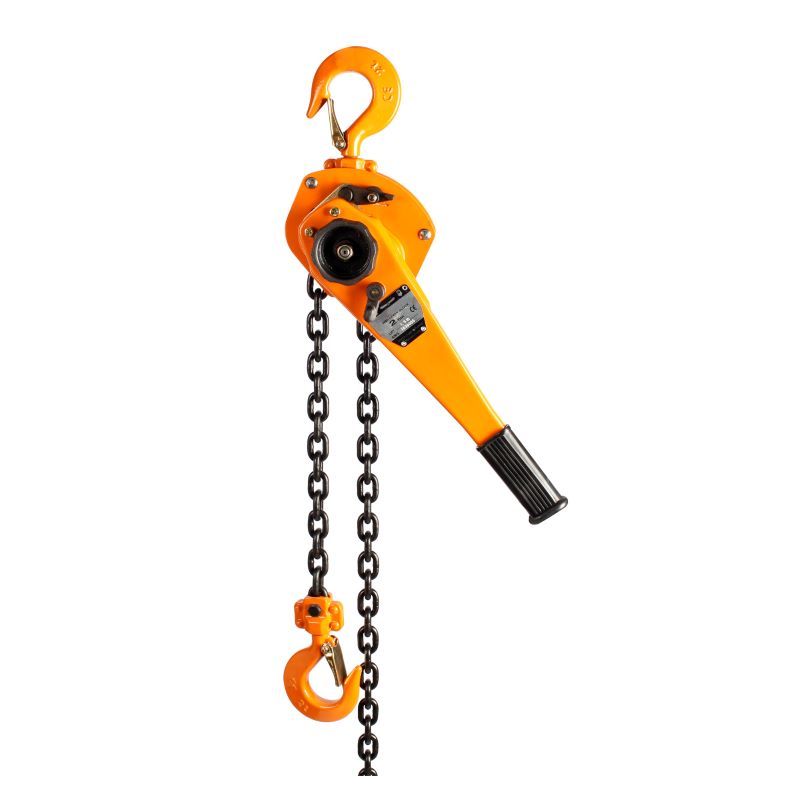

HSH-V Lever Block

Highly shock-resistant.

Forged reinforced hooks.

Model		HSH-V2.5	HSH-V5	HSH-V7.5	HSH-V10	HSH-V15	HSH-V20	HSH-V30	HSH-V60	HSH-V90
Rated load(T)		0.25	0.5	0.75	1	1.5	2	3	6	9
Test load(T)		0.375	0.75	1.125	1.5	2.25	3	4.5	9	13.5
Standard lift(m)		1	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Min.distance between two hooks(mm)		205	260	295	295	335	385	450	615	720
Efforts required at capacity(N)		217	303	140	140	234	251	363	370	375
No.of load chains		1	1	1	1	1	1	1	2	3
Diameter of load chain(mm)		4	5	6	6	7.1	8	10	10	10

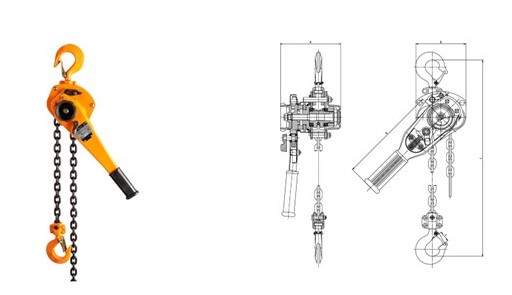

Dimensions(mm)	A	92	110	152	152	175	175	195	195	195
	B	75	82	128	128	148	160	181	232	366
	C	205	260	295	295	335	385	450	615	720
	D	153	261	256	256	368	368	368	368	368
	E	17	23	26	26	30	33	34	47	64
Net weight(kg)		1.85	4.6	7.7	8	10.6	14.8	20	28	46

Capacity from 0.25T to 9T.
Chain guides provide smooth chain operation.
Light weight steel construction with durable powder coat finish.
Drop forged hooks and hook holders, heat treated to ensure the safety and durability.
Gear assembly provide smooth operation by little hand efforts.
Used in terminals, mining, shipbuilding, construction, transport, telecommunications and other sectors of the equipment installation, lifting objects, pulling parts, parts binding, the line taut and welding and other occasions.
