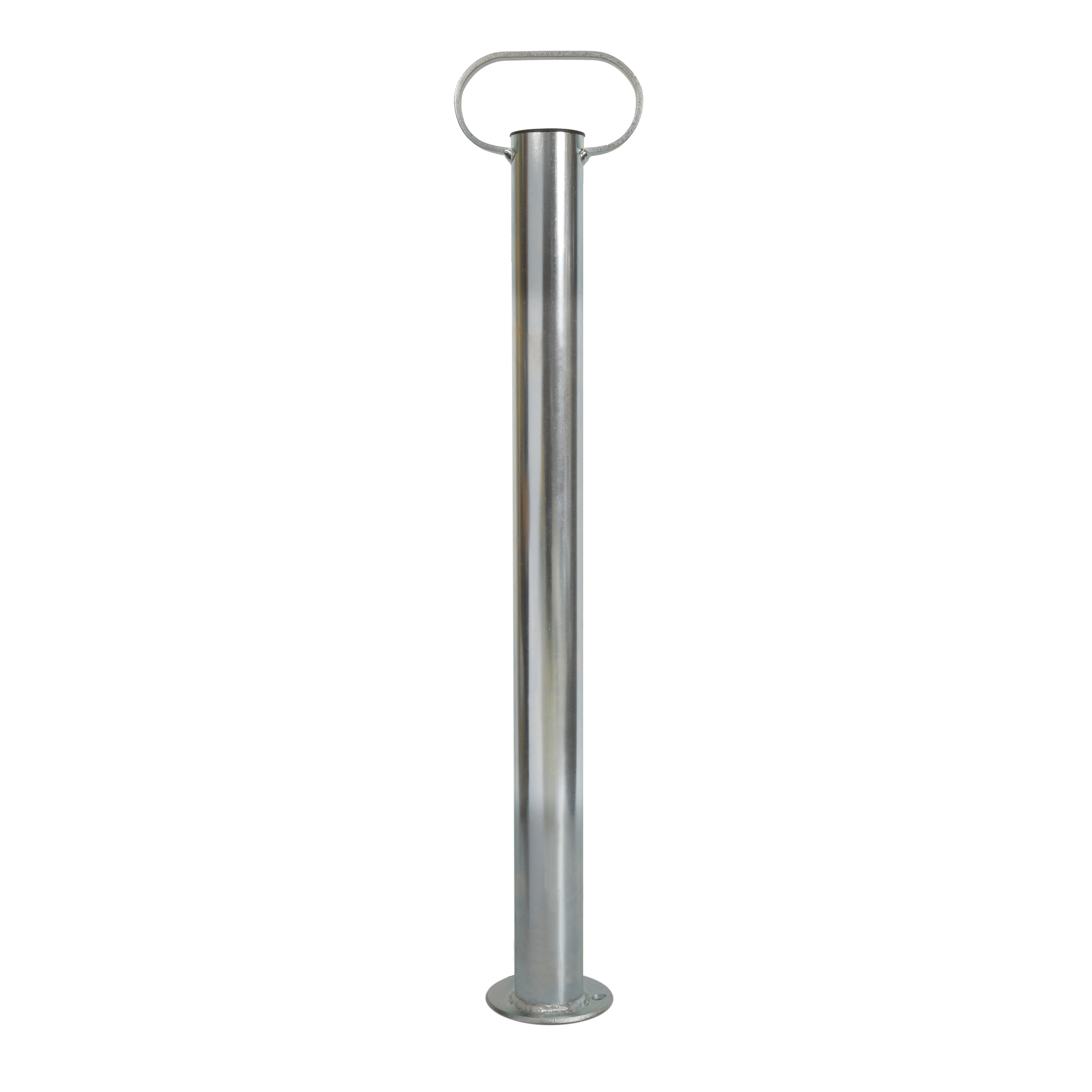

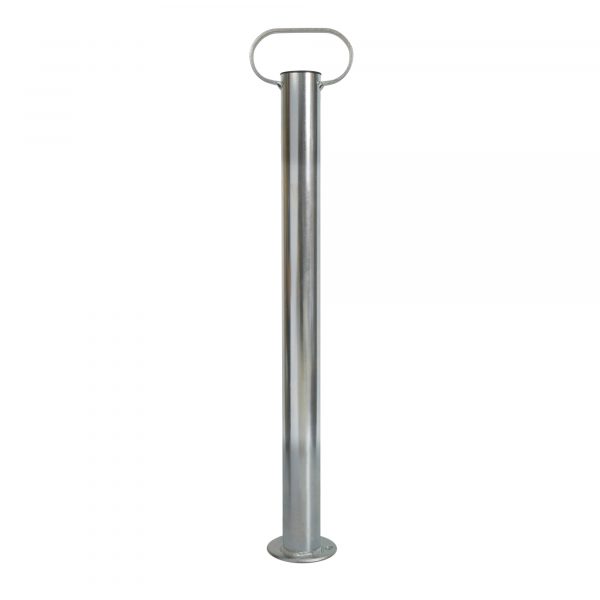

Application | 48mm standard clamp |
Load Capacity | 250kgs |

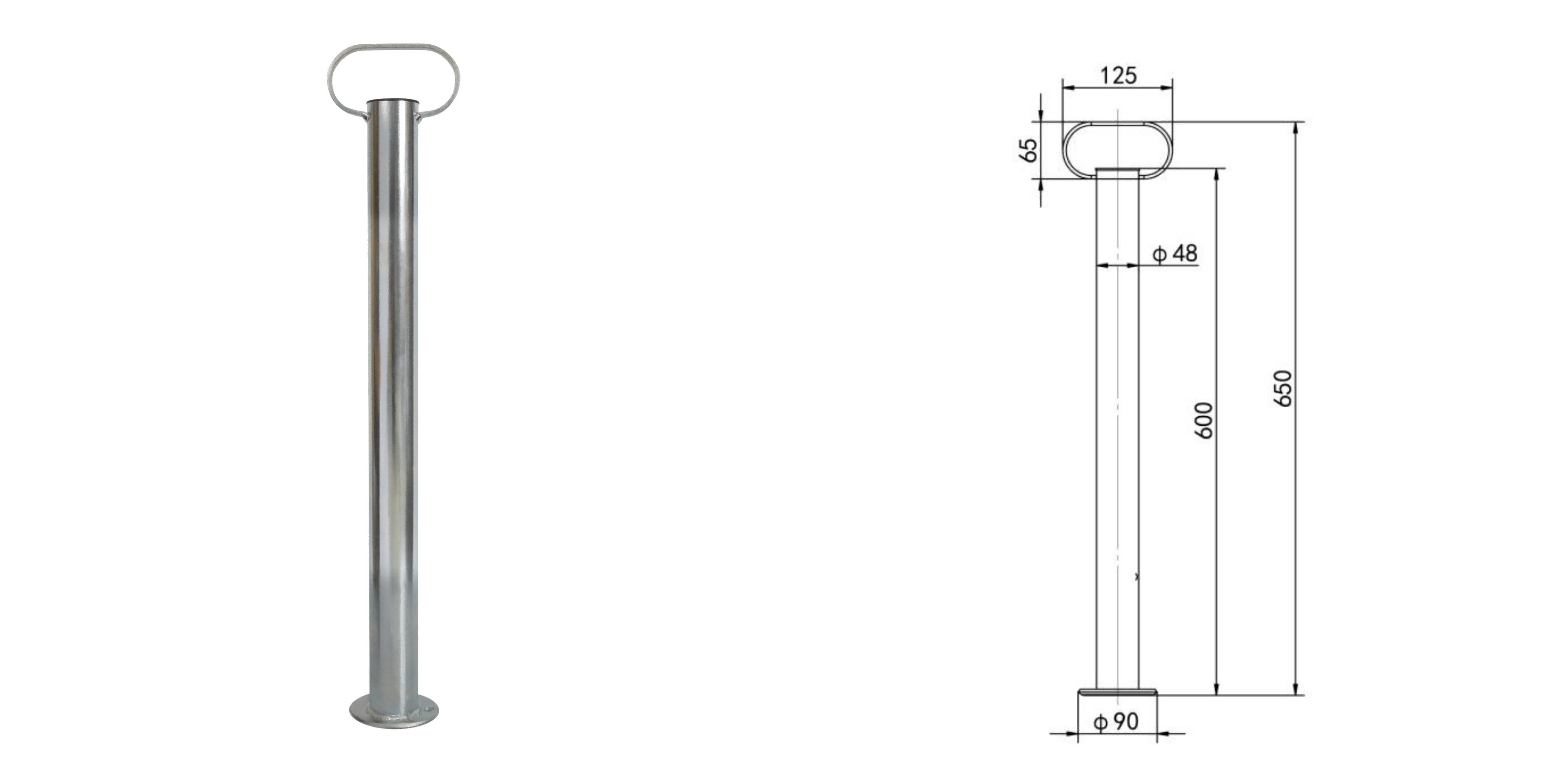

Size | Φ48 x 600mm |
Overall Length | 650mm |
Weight of Unit Piece | 2.02kgs |
Finishing | Zinc Plating |
Packing | 250pcs per plywood case (115x81x100cm) |
Feature:
Weld by welding robot which ensures stable strength and high quality.
High quality plating provides excellent appearance and reliable corrosion resistance.
