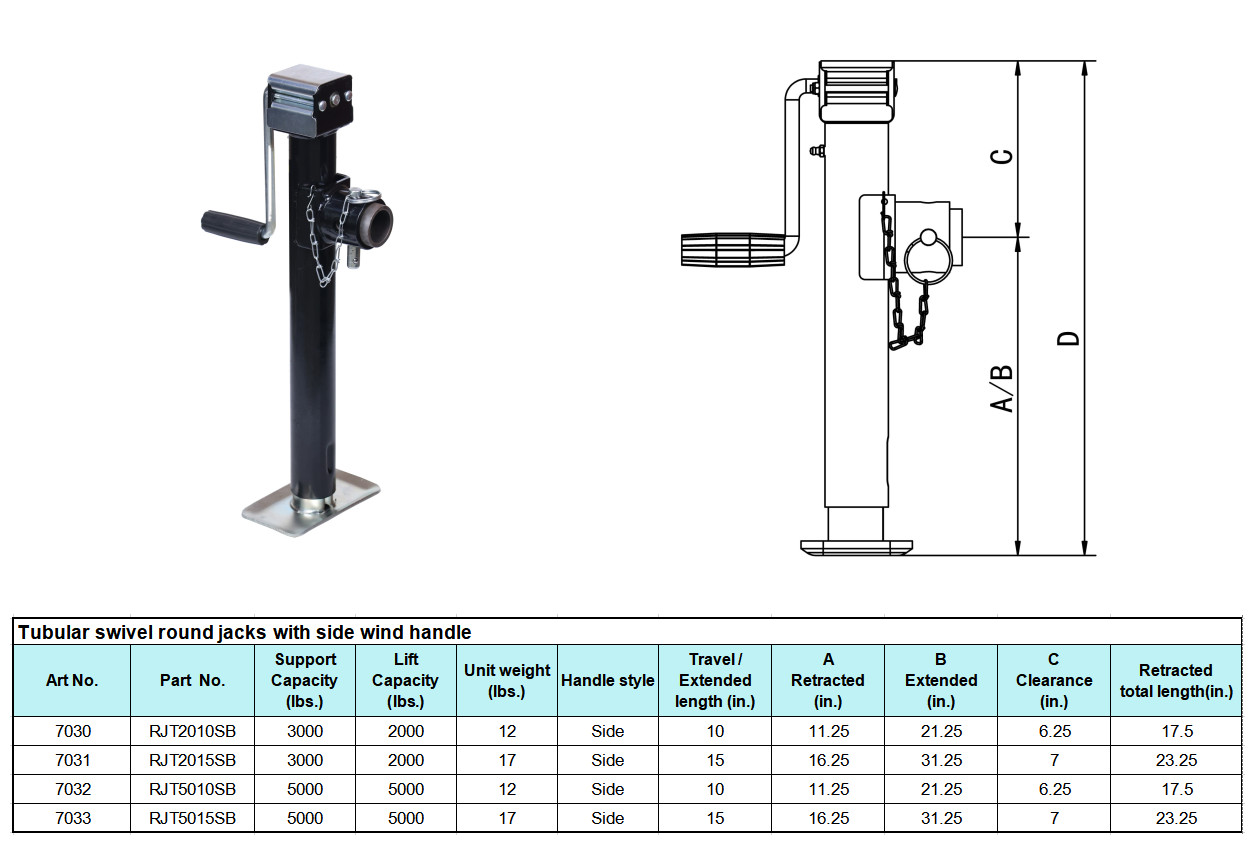

Tube Type | Φ57mm |
Wind | Side wind handle |
Load Capacity | 5000lbs |
Length of Extension | 10” |
Retracted total length | 17.5” |
Locking pin & Chains | Ø 5/8" |
Unit Weight | 12lbs |
Brand | DNL |
Finishing | outer body powder coated, Inner body zinc plated. |
Packing | 130pcs per plywood case (120x92x113cm) |
Apply to:
Box trailer, Horse trailer, Flat trailer,Caravan,Construction trailers, Lives stock trailer, Agriculture vehicle, Industry vehicle, Building vehicle, Road trailer, Commercial trailer,etc.
Feature:
Ergonomic knob offers the best experience of operating easily, no feeling of tiredness.
High quality gears make your operation more smoothly and safely.
Reliable quality and stable performance of spindle & bearing extend the service life of products.
