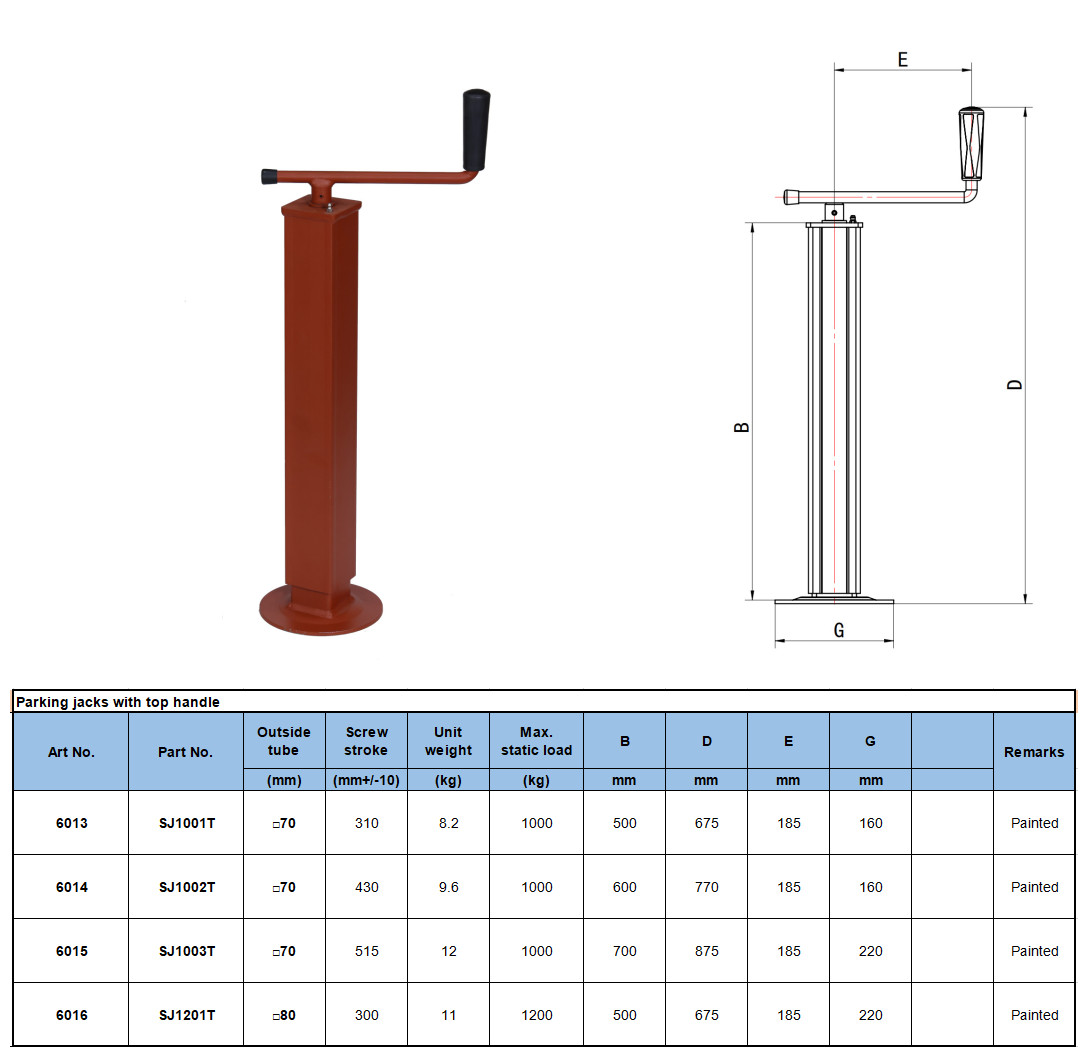

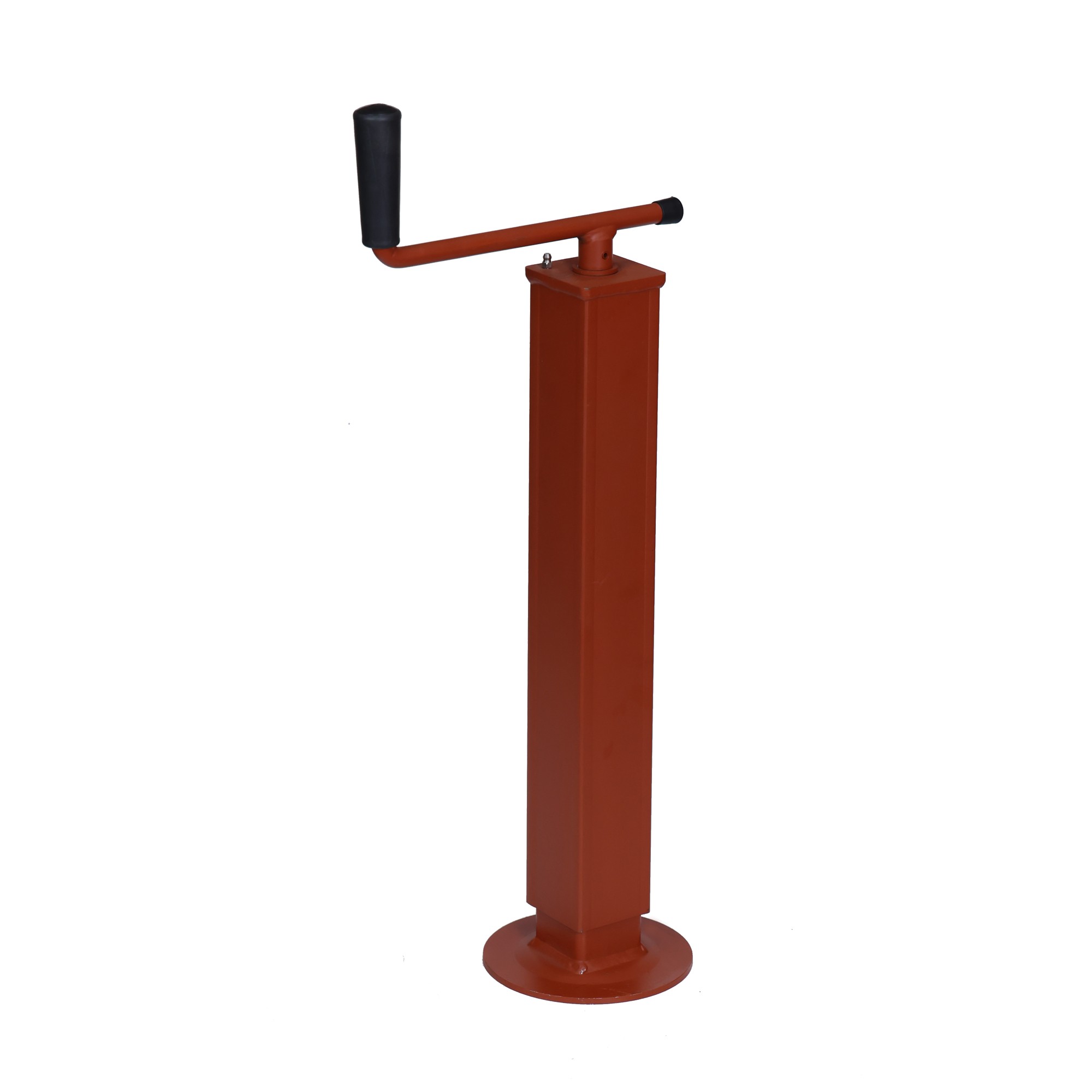

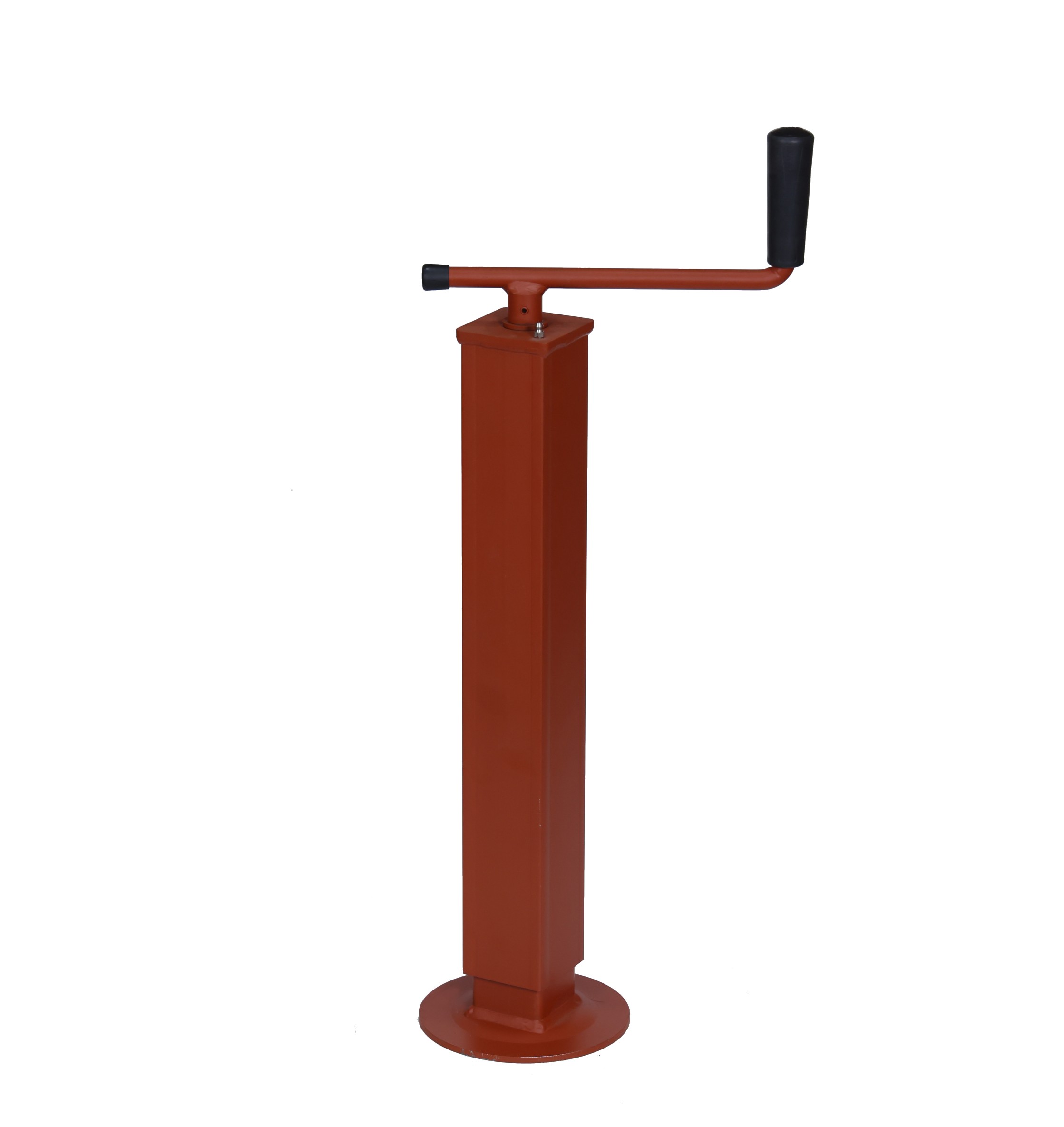

80mm Square tube with top handle 1200kg static load screw stroke 300mm Parking Jacks
Tube Type | Φ80mm Square tube |
Load Capacity | 1200kg |
Length of Extension | 300mm |
Body Length | 500mm |
Size of Dish foot | Round Φ220mm |
Wind | Top winding handle |
Unit Weight | 11kgs |
Brand | DNL |
Finishing | Painted (Can offer sandblasting, powder coating, electro-galvanizing and hot-dip galvanizing) |
Packing | 90pcs per plywood case (110x110x107cm) |
Apply to:
Box trailer, Flat trailer,Construction trailers, Lives stock trailer, Transportation Trailer,Agriculture vehicle, Industry vehicle, Building vehicle, Road trailer, Commercial trailer, etc.
Feature:
Ergonomic knob offers the best experience of operating easily, no feeling of tiredness.
Special designed and constructed outer tube makes minimum tolerances between inner and outer tube, reducing play and vibration during movement of the jack. It makes your jack much stronger.
Reliable quality and stable performance of spindle & bearing extend the service life of products.
With Ultimate quality graphite grease on all moving parts to reduce routine maintenance requirements and guarantee the stable life time as well.
