Art no. : 7050
Part no.: SJ7028SB/3S

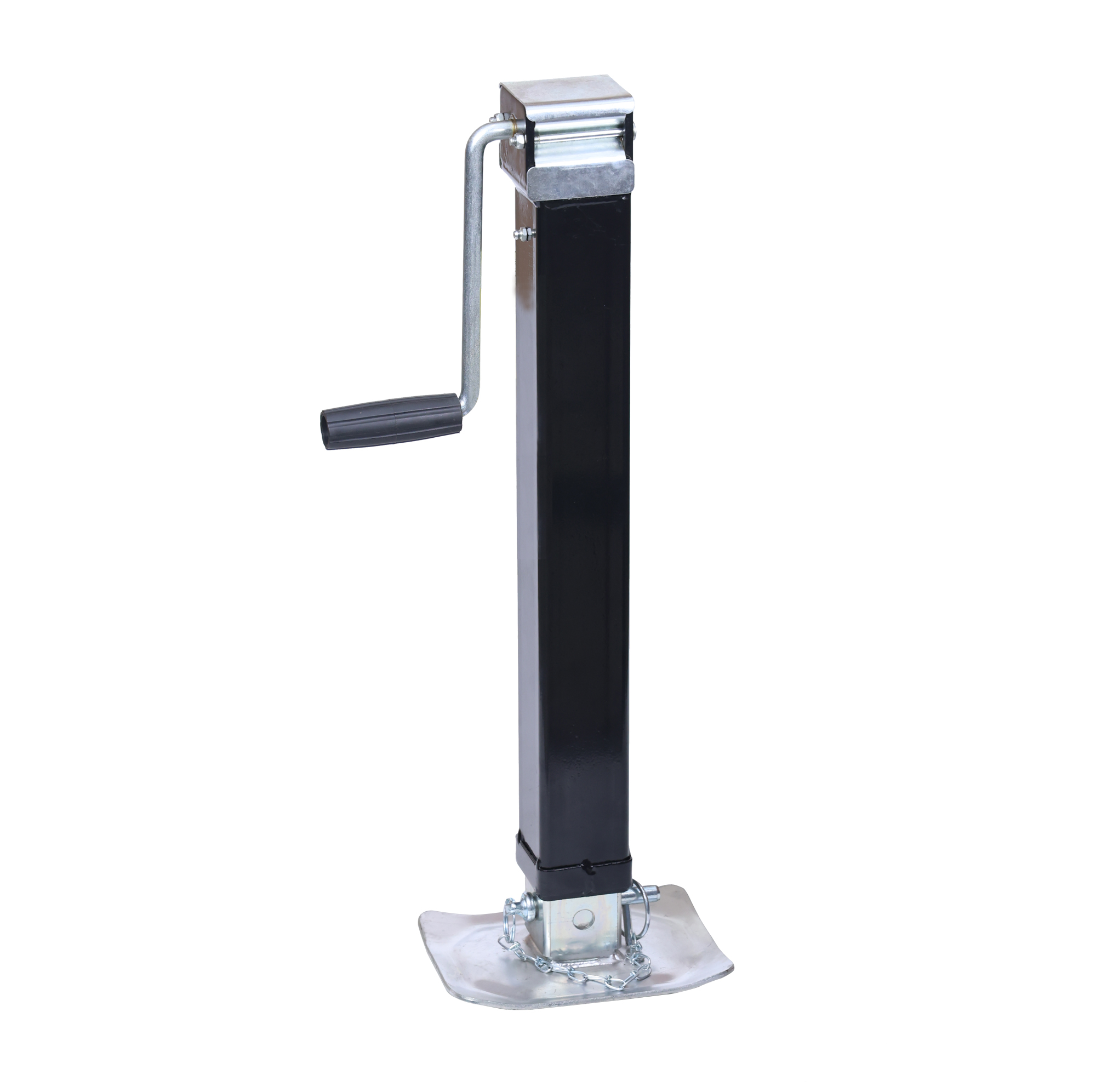

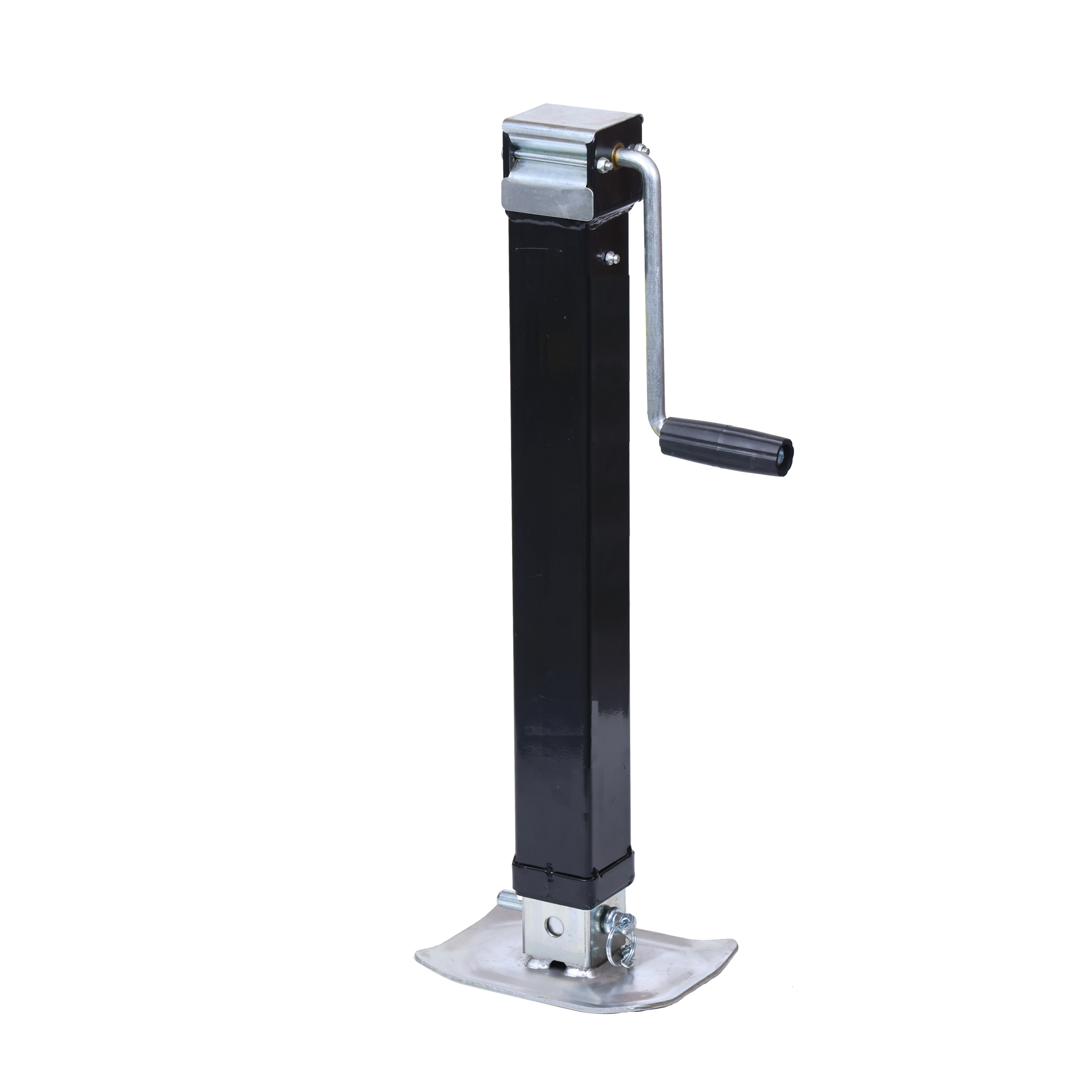

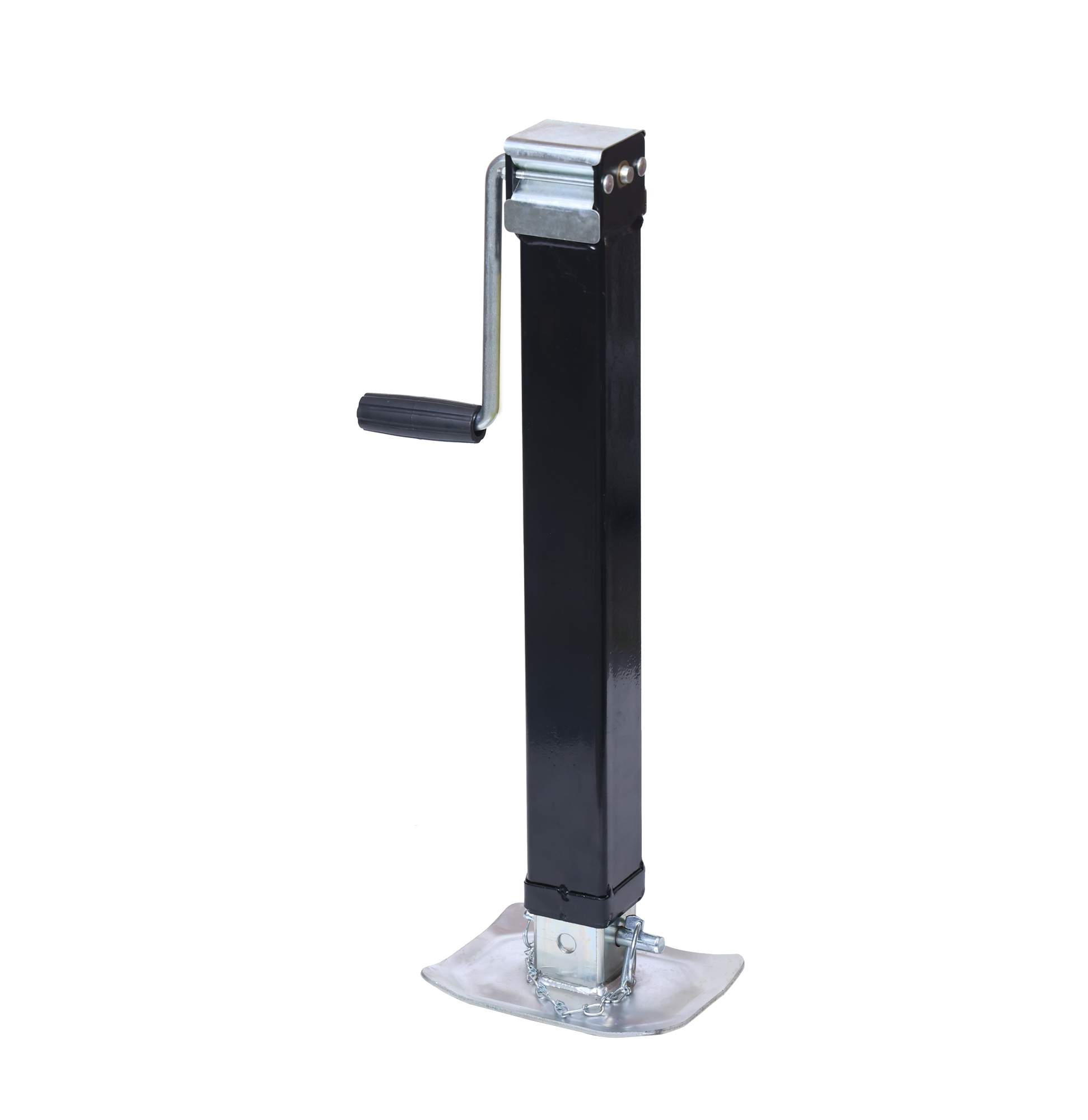

Description: 7000lbs Direct weld square jack side wind 13" drop leg 15" travel
Apply to: Box trailer, Horse trailer, Flat trailer,Caravan,Construction trailers, Lives stock trailer, Transportation Trailer,Agriculture vehicle, Industry vehicle, Building vehicle, Road trailer, Commercial trailer, Heavy duty vehicle,etc.
Feature:
Ergonomic knob offers the best experience of operating easily, no feeling of tiredness.
High quality gears make your operation more smoothly and safely.
Reliable quality and stable performance of spindle & bearing extend the service life of products.
Special design of the pin and welded clamp on the tube ensure your support safety.

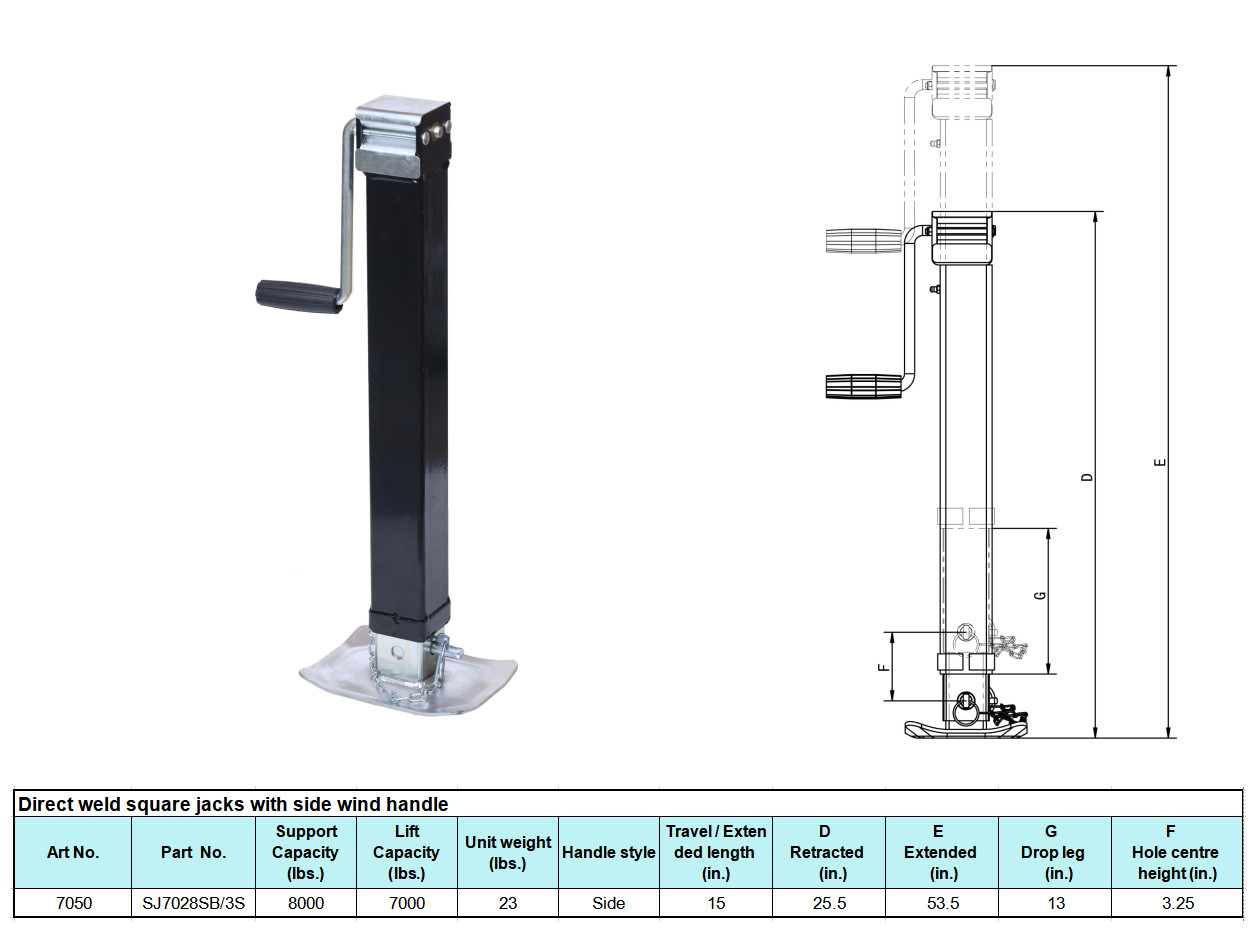

Specification
Tube Type | □64mm |
Wind | Side wind handle |
Load Capacity | 7000lbs |
Length of Extension | 15”+13” drop leg |
Retracted total length | 25.5” |
Unit Weight | 23lbs |
Brand | DNL |
Finishing | Outer body powder coated, Inner body zinc plated. |
Packing | 90pcs per plywood case (120x92x113cm) |
