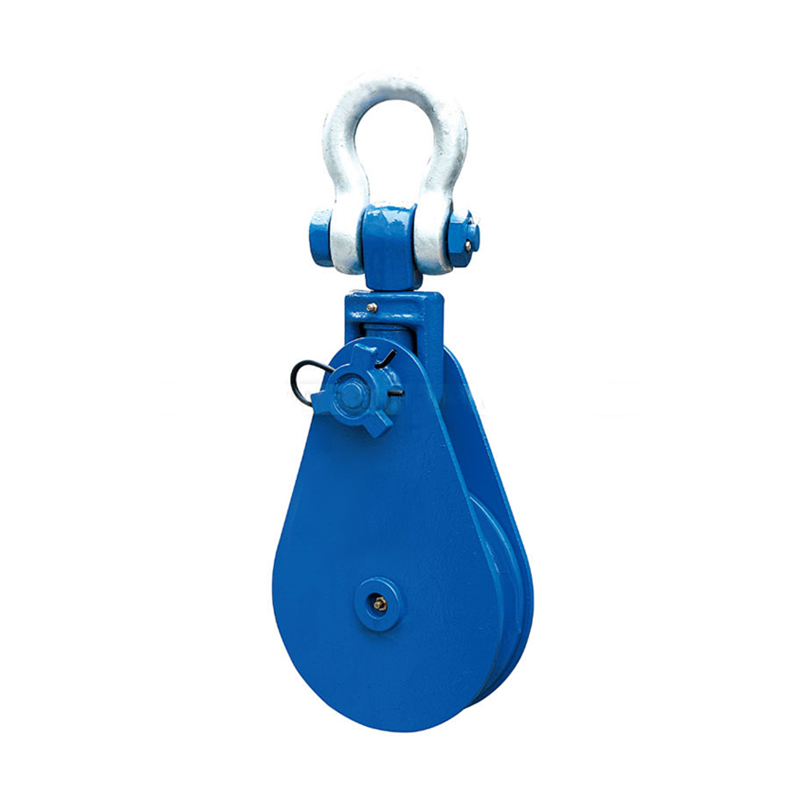

Capacity from 2T to 85T.
Swivel hook or shackle drop forged and heat treated.

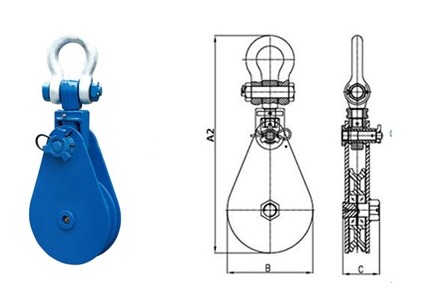

| TYPE | S.W.L | SHEAVE DIA | A2 | B | C | FOR WIRE DIA. | N.W. |
| HOOK | (T) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) |
| 3" | 2 | 75 | 286 | 82 | 70 | 7-9 | 3.8 |
| 4.1/2" | 4 | 115 | 345 | 120 | 70 | 10-12 | 6.2 |
| 6" | 4 | 150 | 399 | 160 | 70 | 16-18 | 8.3 |
| 6" | 8 | 150 | 475 | 160 | 93 | 20-22 | 14.1 |
| 8" | 8 | 200 | 528 | 210 | 93 | 20-22 | 18.7 |
| 8" | 15 | 200 | 663 | 210 | 102 | 22-24 | 33 |
| 10" | 10 | 250 | 679 | 260 | 115 | 24-26 | 34.7 |
| 10" | 12 | 250 | 679 | 260 | 115 | 24-26 | 34.7 |
| 12" | 12 | 300 | 767 | 310 | 133 | 24-26 | 54 |
| 12" | 15 | 300 | 788 | 310 | 133 | 24-26 | 55 |
| 14" | 22 | 355 | 952 | 365 | 140 | 28-32 | 109 |
| 16" | 22 | 400 | 1019 | 415 | 140 | 28-32 | 118 |
| 16" | 30 | 400 | 1126 | 415 | 155 | 32-35 | 164 |
| 20" | 30 | 500 | 1256 | 514 | 162 | 32-35 | 208 |
| 24" | 50 | 600 | 1525 | 625 | 240 | 46-50 | 418 |
| 30" | 85 | 760 | 1910 | 800 | 288 | 56-64 | 840 |
Drum moving and lifting.
Time and labor saving.
European safety standard.
Flexible and convenient.
Stainless steel AISI316 or AISI304.
Full sizes available.
Super alloy steel.
Quenched and tempered.
To suit G80 chains.
