Tube Type | Ø60mm Square tube |
Load Capacity | 1300kgs |
Length of Extension | 240mm |

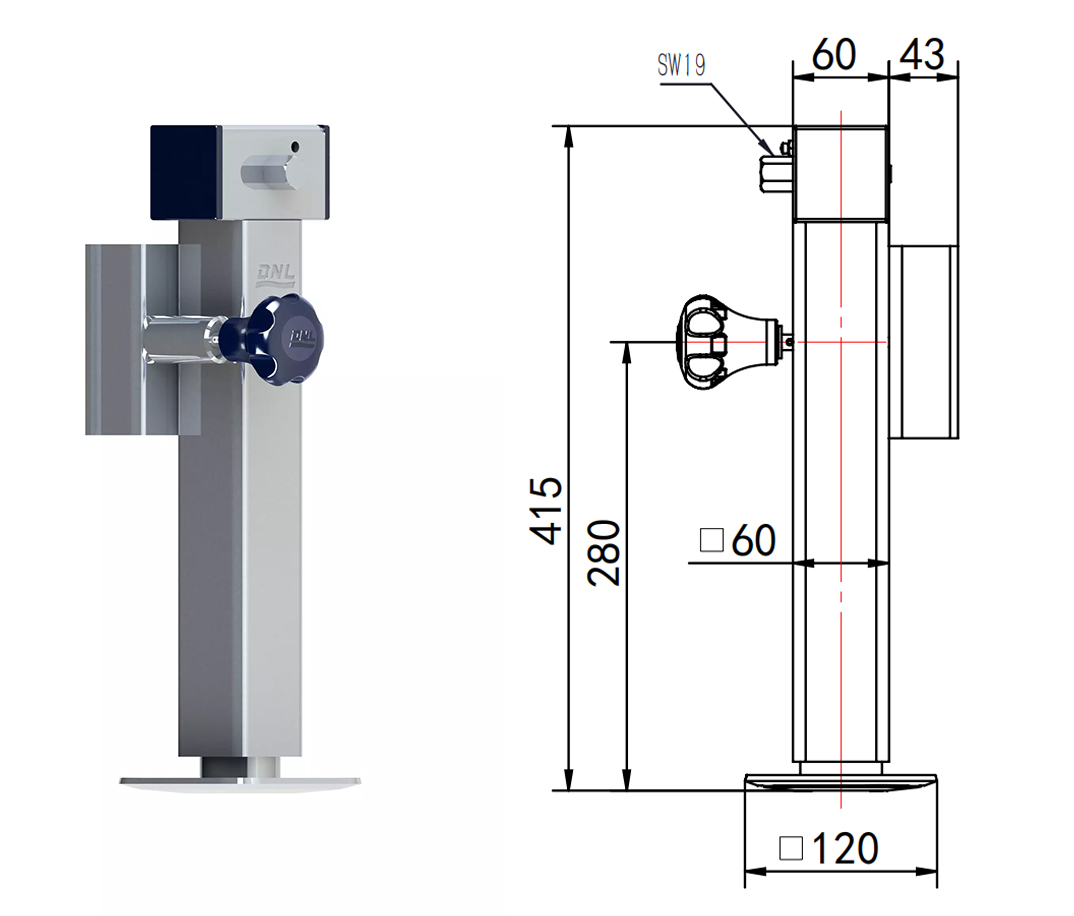

Retraction height | 415mm |
Base Size | 120x120mm |
Mounting | Thinner swivel bracket |
Handle | Without wind handle |
Unit Weight | 7.6kgs |
Brand | DNL |
Finishing | Zinc Plating |
Packing | 125pcs per plywood case (110x110x107cm) |
Apply to:
Flat trailer, Horse trailer, Box trailer, Transportation Trailer, Lives stock trailer, Construction trailer, Commercial trailer,Industry vehicle,etc.
Feature:
Ergonomic knob offers the best experience of operating easily, no feeling of tiredness.
High quality gears make your operation more smoothly and safely.
Reliable quality and stable performance of spindle & bearing extend the service life of products.
High quality plating provides excellent appearance and reliable corrosion resistance.
Special design of the swivel bracket ensure your support safety.
Top Grade Gears Assy for 1500kgs loading.
2000lbs manual winches with 2 speed,with no strap/cable
Lashing Buckle breaking capacity 5000KG fittd with strap 50MM width 51MM
60mm Jockey Wheel, Hot Dip Galvanized, Automatic Support Shoe, Standard B Type Console, Long Design, 230x80 mm Rubber Wheel
