Material | Made of Mild Carbon Steel |
Head Type | Flat head |
Shank Type | Spiral Shank |
Point Type | Diamond Point |
Standard Finish | Hot Dip Galvanized finish |
Standard | ASTM standard |
Packing | 50lb/carton,25lb/carton,25lb/pail,30lb/pail,20kg/carton,25kg/carton,1lb/box,5lb/box or on customer request |
Application:
Used for decks, patios, general construction and framing. Recommended for pressure-treated wood projects and application. Also used for the construction of redwood and cedar decks and railings.
Feature:
Specification:
| Size | Length | Gauge | Head | Count |
| 6d | 2'' | 10½ | 9/32" | 160 |
| 8d | 2 1/2" | 10½ | 9/32" | 131 |
| 10d | 3'' | 9¾ | 9/32" | 95 |
| 12d | 3 1/4" | 9¾ | 9/32" | 88 |
| 16d | 3 1/2" | 9 | 5/16" | 57 |
| 20d | 4'' | 8 | 23/64" | 22 |
| 30d | 4 1/2" | 8 | 23/64" | 19 |
| 40d | 5'' | 7 | 3/8" | 17 |
| 60d | 6'' | 7 | 3/8" | 14 |
Barbed Shank or Smooth Shank. Diamond Point.
Smooth Shank, Ring Shank (Annular thread) or Spiral Shank. Diamond Point, Without Point or Chisel Pont.

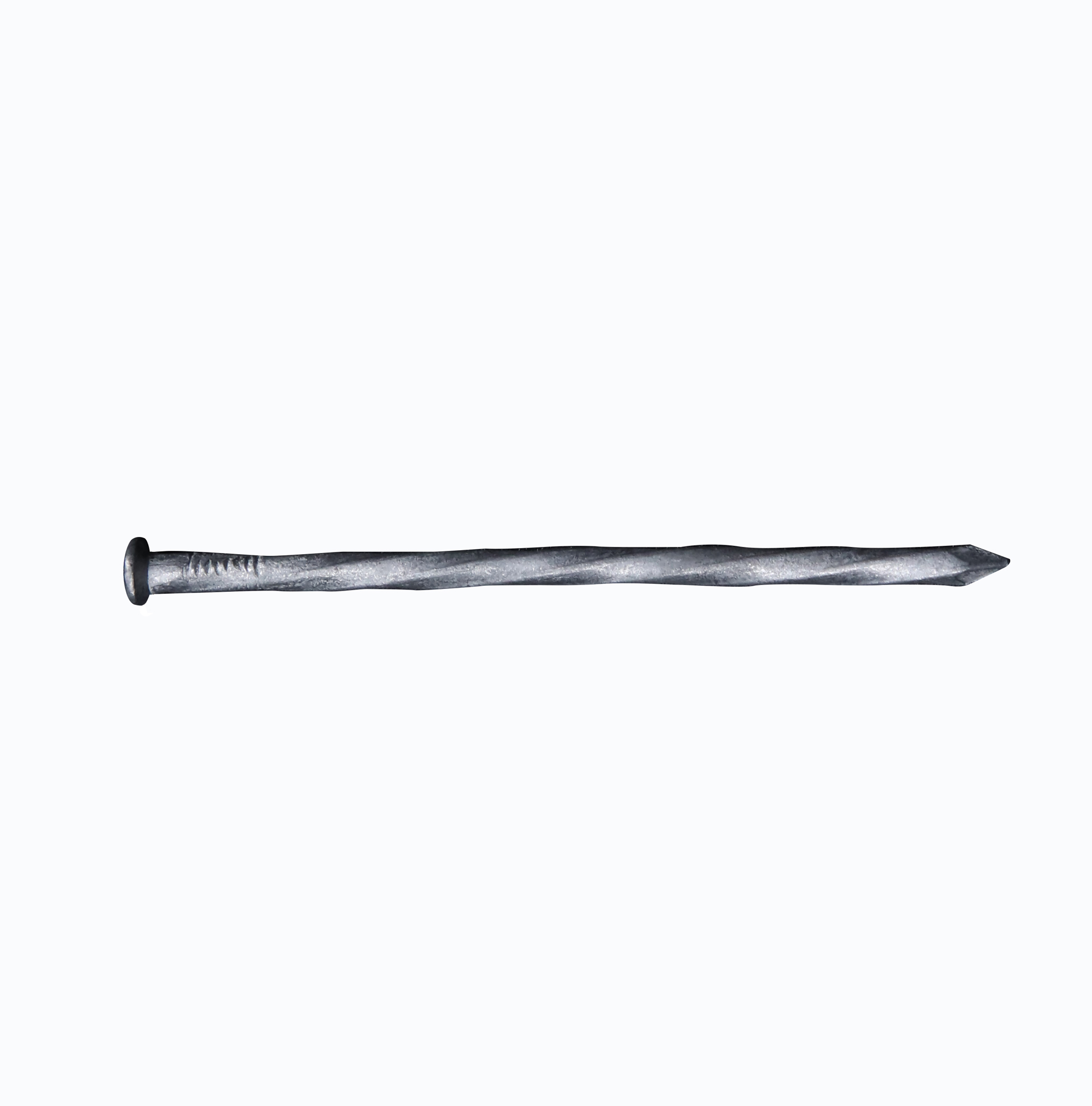

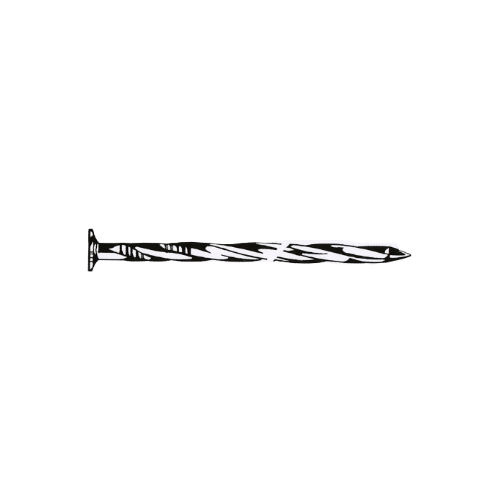

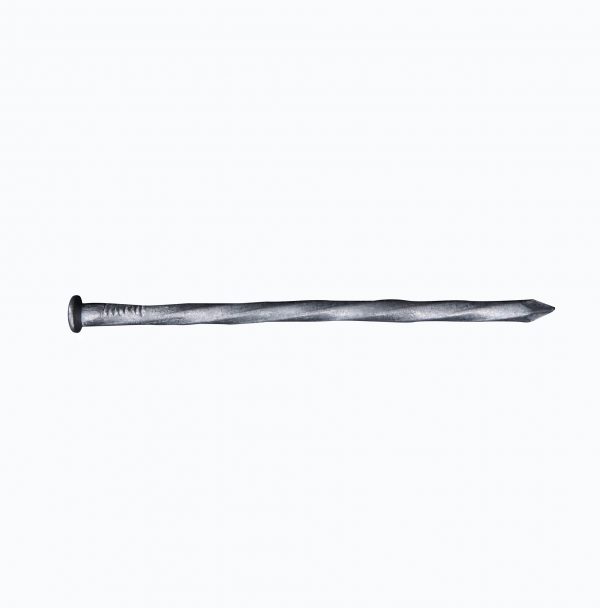

Flat head. Spiral Shank. Diamond Point.
Round Smooth Shank or Ring Shank. Diamond Point.
