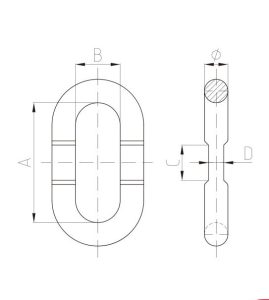

| ITEM NO. | WEIGHT (kg) | WLL (T) | B.L (T) | A±3 | B±2 | C±1.5 | D±0.5 | Φ±1 |
| 1T | 0.2 | 1 | 5 | 70 | 30 | 25 | 10 | 12 |
| 1.5T | 0.4 | 1.5 | 7.5 | 85 | 35 | 28 | 12 | 16 |
| 3T | 0.8 | 3 | 15 | 102 | 38 | 30 | 13 | 20 |
| 3.2T | 0.9 | 3.2 | 16 | 110 | 45 | 30 | 14 | 20 |
| 4.4T | 1.5 | 4.4 | 22 | 130 | 50 | 30 | 18 | 25 |
| 5.6T | 2.2 | 5.6 | 28 | 150 | 60 | 32 | 21 | 28 |
| 10T | 0.85 | 10 | 50 | 102 | 38 | 23 | 14 | 21 |
| 12T | 1.7 | 12 | 60 | 122 | 48 | 28 | 16 | 25 |
| 15T | 2.8 | 15 | 75 | 170 | 75 | 32 | 17 | 30 |
| 20T | 4.2 | 20 | 100 | 185 | 85 | 36 | 25 | 34 |
1.Super alloy steel.
2.Quenched and Tempered.
3.Suitable for G80 EN818-2 chains.
4.100% Magnetic powder inspection.
5.Individually proof load test at 2.5 times WLL.
6.Fatigue test at 1.5 times WLL for 20,000 cycles.
7.Strict breaking test.
8.Surface treatment: Powder coated.
European safety standard.
Flexible and convenient.
Stainless steel AISI316 or AISI304.
Full sizes available.
Forged, quenched and tempered.
High tensile strength.
Super alloy steel.
Quenched and tempered.
To suit G80 chains.
