Model

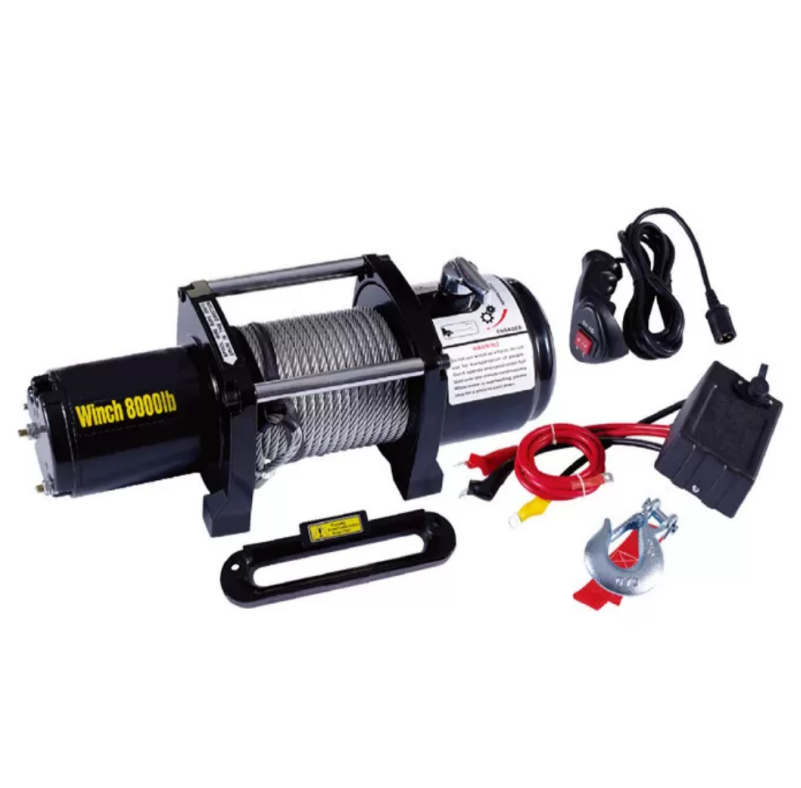

 EW8000C(12V)

Rated line pull

 8000lb (3629kg) single line

Motor

 4.13KW/3.0HP 12V, Permanent magnet

Control

 Remote switch, 12ft (3.7m) lead

Gear train

 3 Stage Planetary

Gear reductions ratio

 218:1

Clutch

 Sliding Ring Gear

Braking Action

 Automatic ln-The-Drum

Drum Dimensions

 φ2.6"x8.8"(φ64mmx224mm)

Cable (Dia X L)

 φ5/16"x94' (φ8.1mmx28m)

Fairlead

 4-Way Roller Fairlead

Battery

 Recommended 650CCA minimum for winching

Battery Leads

 2 gauge, 72" (1.83m)

Overall dimensions

 21.1”x6.3"x8.6" (537x160x218mm)

Mounting Bolt Pattern

 254mmx114.3mm

N.W. / G.W.

 33kg / 35kg
