Forged super alloy steel.
25% stronger than G80.
Suitable for G100 chains.

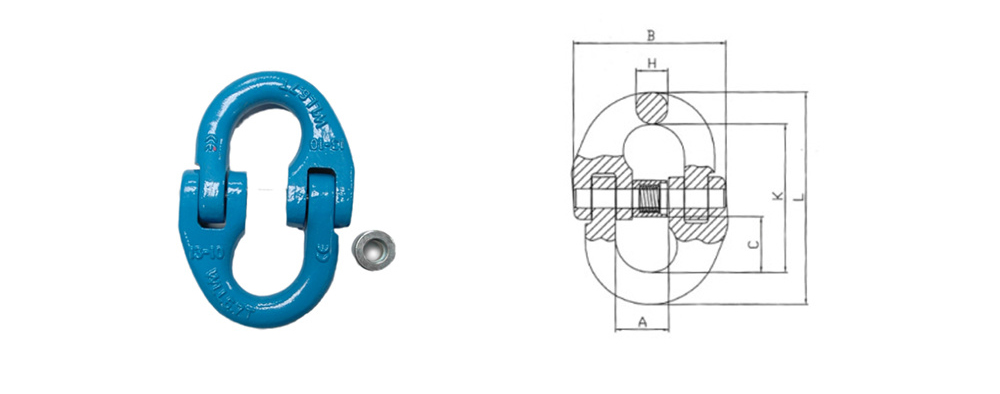

| ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | H±1(mm) | A±1.5(mm) | B±1.5(mm) | C±1.5(mm) | K±2(mm) | L±3(mm) |
| 6-10 | 0.11 | 1.4 | 5.6 | 7 | 14 | 40 | 16.5 | 44.5 | 62.1 |
| 7-10 | 0.17 | 1.9 | 7.6 | 8.2 | 18.5 | 56 | 22.5 | 60 | 80 |
| 7/8-10 | 0.16 | 2.5 | 10 | 8.5 | 18.5 | 54.2 | 22 | 59.7 | 81.7 |
| 8-10 | 0.18 | 2.5 | 10 | 10 | 18.5 | 53 | 25 | 63.1 | 84.1 |
| 10-10 | 0.34 | 4 | 16 | 12.6 | 23 | 64 | 27.8 | 71.6 | 96.8 |
| 13-10 | 0.68 | 6.7 | 26.8 | 16.5 | 28 | 81 | 36.9 | 93.4 | 126.4 |
| 16-10 | 1.22 | 10 | 40 | 20 | 33.5 | 103 | 40.2 | 105 | 145 |
| 20-10 | 2.13 | 16 | 64 | 25 | 42 | 119.5 | 47.5 | 125 | 175 |
| 22-10 | 3 | 19 | 76 | 27 | 48 | 142 | 53 | 139 | 193 |
| 26-10 | 5.2 | 26.5 | 106 | 32 | 61 | 169 | 63 | 164 | 229 |
| 32-10 | 9.55 | 39.3 | 157.2 | 40 | 80 | 218 | 78 | 199 | 279 |
1.Forged super alloy steel.
2.25% stronger than G80.
3.Quenched and Tempered.
4.Suitable for G100 chains.
5.100% Magnetic powder inspection.
6.Individually proof load test at 2.5 times WLL.
7.Fatigue test at 1.5 times WLL for 20,000 cycles.
8.Strict breaking test.
9.Surface treatment: Powder coated.
