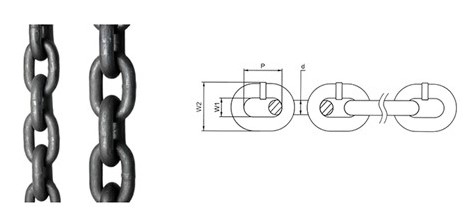

| SIZE(mm) | d(mm) | P(mm) | W1 min.(mm) | W2 max.(mm) | WLL(t) | Proof Load(kN) | Breaking load(kN) | Weight(kg/m) |
| 4x12 | 4±0.16 | 12±0.4 | 5.2 | 14.8 | 0.5 | 12.6 | 20.1 | 0.35 |
| 5x15 | 5±0.2 | 15±0.5 | 6.5 | 18.5 | 0.8 | 19.6 | 31.4 | 0.5 |
| 6x18 | 6±0.24 | 18±0.5 | 7.8 | 22.2 | 1.12 | 28.3 | 45.2 | 0.8 |
| 7x21 | 7±0.28 | 21±0.6 | 9.1 | 25.9 | 1.5 | 38.5 | 61.6 | 1.1 |
| 8x24 | 8±0.32 | 24±0.7 | 10.4 | 29.6 | 2 | 50.3 | 80.4 | 1.4 |
| 10x30 | 10±0.4 | 30±0.9 | 13 | 37 | 3.15 | 78.5 | 126 | 2.2 |
| 13x39 | 13±0.52 | 39±1.2 | 16.9 | 48.1 | 5.3 | 133 | 212 | 3.8 |
| 16x48 | 16±0.64 | 48±1.4 | 20.8 | 59.2 | 8 | 201 | 322 | 5.7 |
| 18x54 | 18±0.9 | 54±1.6 | 23.4 | 66.6 | 10 | 254 | 407 | 7.3 |
| 19x57 | 19±1 | 57±1.7 | 24.7 | 70.3 | 11.2 | 284 | 454 | 8.1 |
| 20x60 | 20±1 | 60±1.8 | 26 | 74 | 12.5 | 314 | 503 | 9 |
| 22x66 | 22±1.1 | 66±2 | 28.6 | 81.4 | 15 | 380 | 608 | 10.9 |
| 23x69 | 23±1.2 | 69±2.1 | 29.9 | 85.1 | 16 | 415 | 665 | 12 |
| 25x75 | 25±1.3 | 75±2.3 | 32.5 | 92.5 | 20 | 491 | 785 | 14.1 |
| 26x78 | 26±1.3 | 78±2.3 | 33.8 | 96.2 | 21.2 | 531 | 849 | 15.2 |
