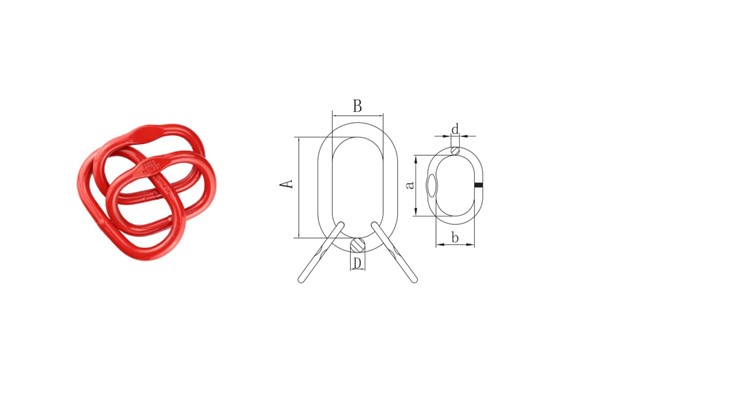

| SIZE | WEIGHT(KG) | WLL(T) | B.L(T) | A(mm) | B(mm) | D(mm) | a(mm) | b(mm) | d(mm) |
| Q16B | 1.19 | 3.8 | 15.2 | 120 | 70 | 16 | 95 | 51 | 13 |
| Q20B | 2.41 | 5.8 | 23.2 | 170 | 90 | 20 | 120 | 70 | 16 |
| Q22B | 3.77 | 7.6 | 30.4 | 170 | 90 | 22 | 150 | 80 | 20 |
| Q23B | 3.67 | 5.8 | 23.2 | 270 | 140 | 22 | 150 | 75 | 16 |
| Q25B | 4.45 | 10 | 40 | 190 | 100 | 25 | 150 | 80 | 20 |
| Q28B | 6.12 | 12.7 | 50.8 | 210 | 110 | 28 | 170 | 90 | 22 |
| Q32B | 9.47 | 15.2 | 60.8 | 270 | 140 | 32 | 190 | 100 | 25 |
| Q38B | 17.4 | 25 | 100 | 270 | 140 | 38 | 270 | 140 | 32 |
| Q45B | 26.76 | 34 | 136 | 320 | 170 | 45 | 270 | 140 | 38 |
| Q50B | 33.2 | 40 | 160 | 380 | 200 | 50 | 270 | 140 | 38 |
| Q60B | 66 | 58 | 232 | 430 | 220 | 60 | 380 | 200 | 50 |
| Q70B | 103 | 84 | 336 | 500 | 250 | 70 | 430 | 220 | 60 |
1.Super alloy steel.
2.Quenched and Tempered.
3.Suitable for G80 EN818-2 chains.
4.100% Magnetic powder inspection.
5.Individually proof load test at 2.5 times WLL.
6.Fatigue test at 1.5 times WLL for 20,000 cycles.
7.Strict breaking test.
8.Surface treatment: Powder coated.
