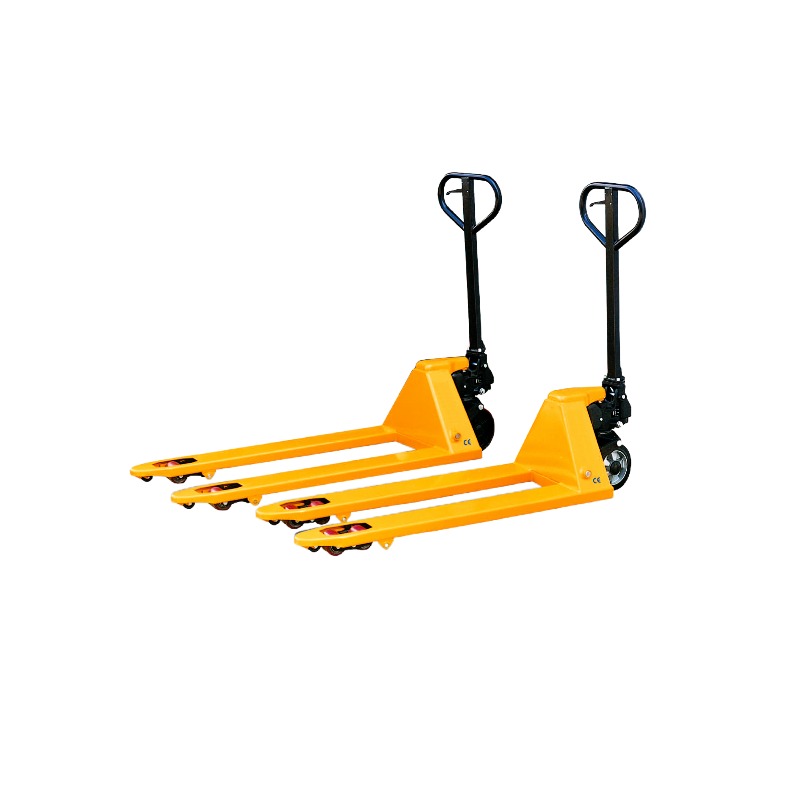

Hand Pallet Truck MB-A

Heavy duty design.

European safety standard.

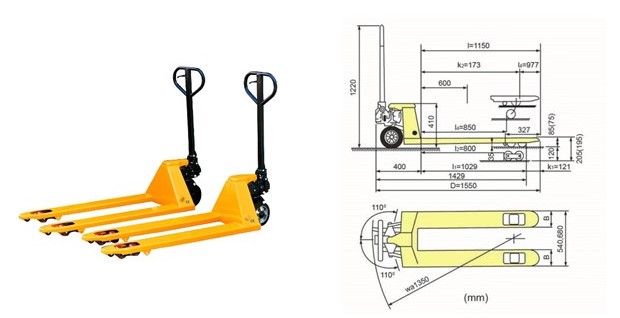

Model	MB-A20		MB-A25		MB-A30
Capacity (kg)	2000		2500		3000
Max.Fork Height (mm)	205 (or 195)
Min.Fork Height (mm)	85(or 75)
Fork Length (mm)	1150	1220	1150	1220	1150	1220
Width Overall Forks (mm)	540	680	540	680	540	680
Individual Fork Width B (mm)	160
Load Roller Dia.xWidth(mm)	Φ80x70 (or Φ70x70) Nylon,Polyurethane
Steering Wheel Dia.xWidth(mm)	Φ200x50(orΦ180x50)Nylon,Polyurethane,Rubber
Net Weight (kg)	78	82	80	84	85	89

A built in overload valve and totally sealed hydraulic pump.
German seal kit offers long span life of pump for 2 years warranty.
Heavy duty and reinforced forks for greatest strength and durability.
Entry rollers prevent physical exertion of the operator and protect load rollers and pallet.
Maintenance free oilless bushings at key points offer you less operating force and longer span life of pallet truck.
Option: quick lift available.
Conforms to EN1757-2.
