Art no. : 8260
Part no.: MC2600C

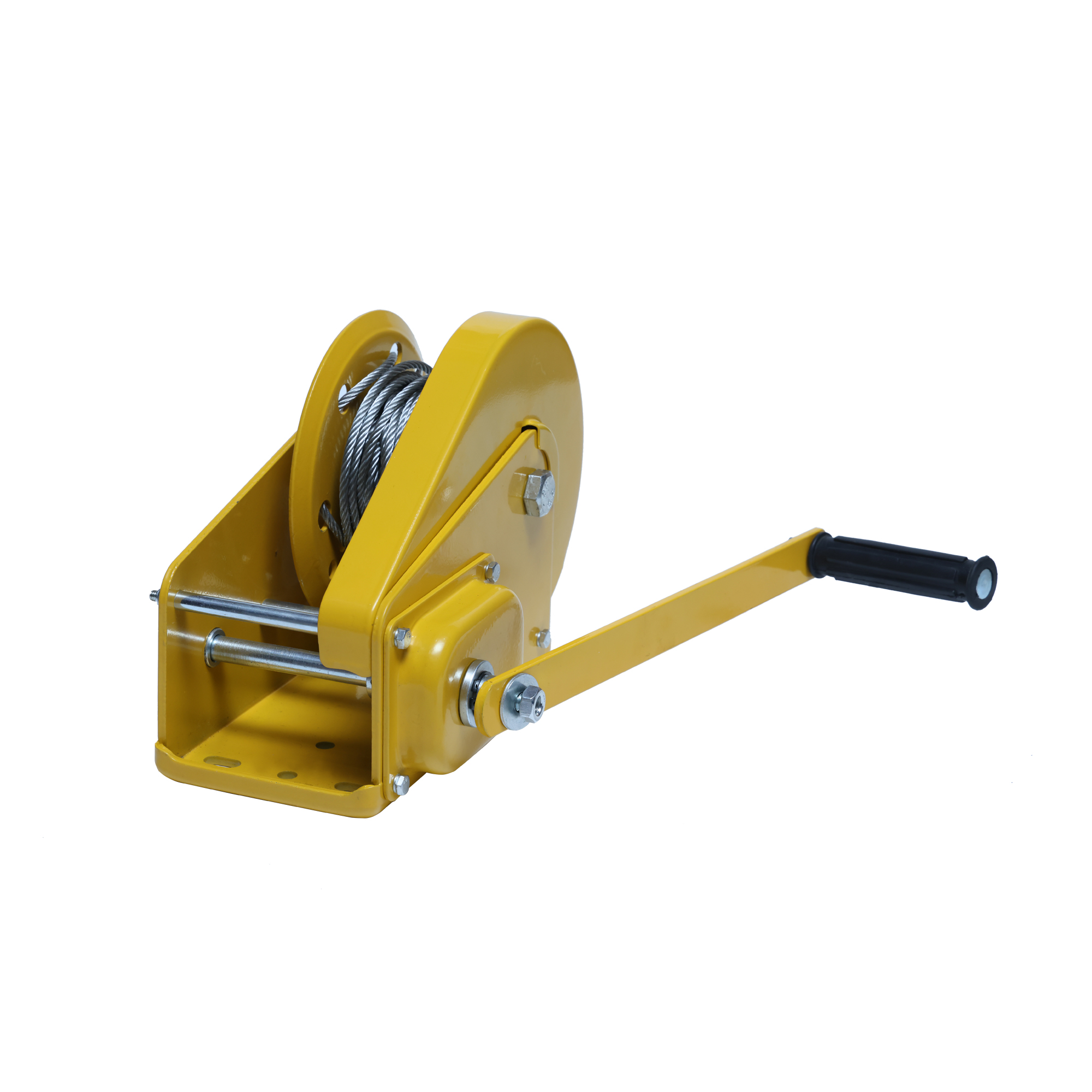

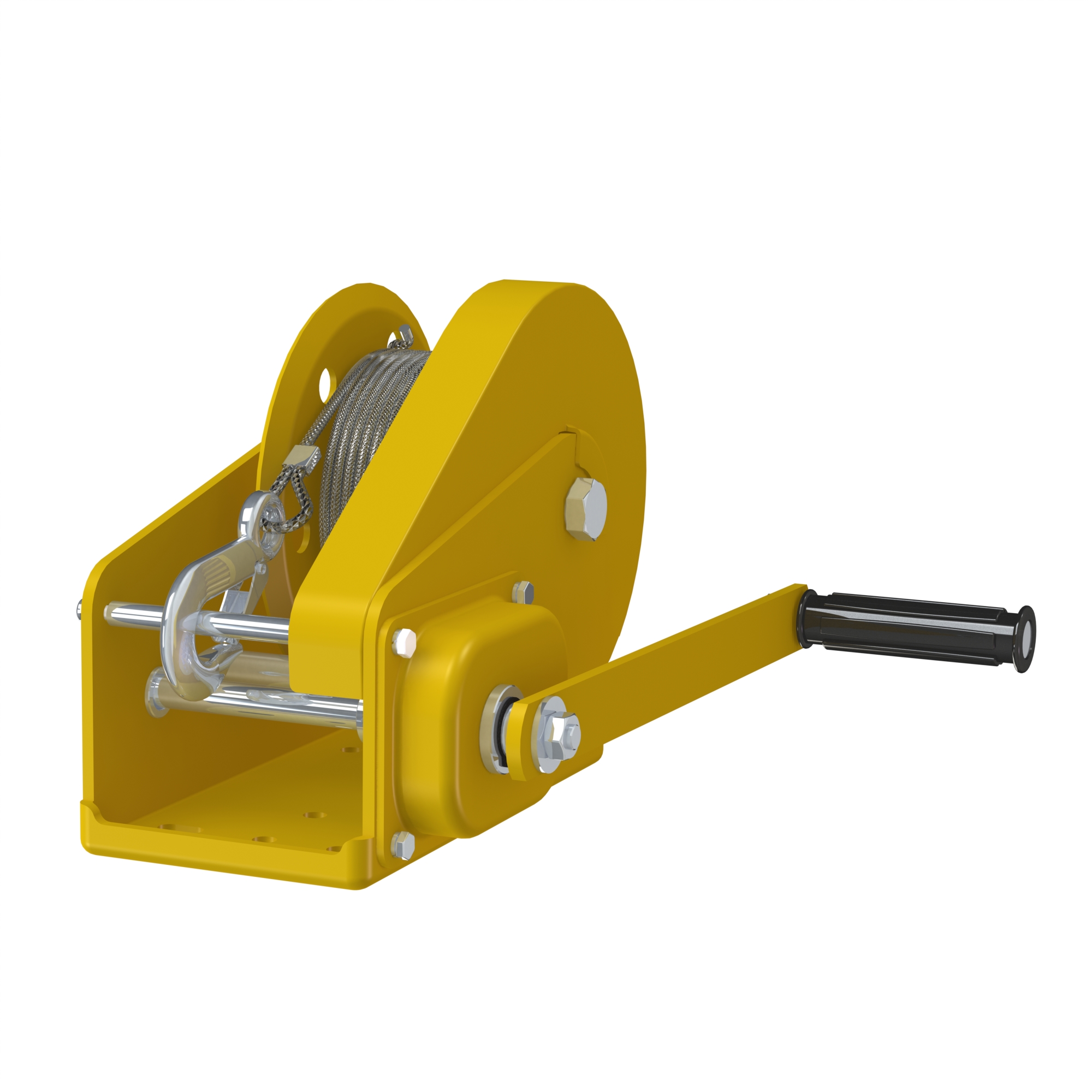

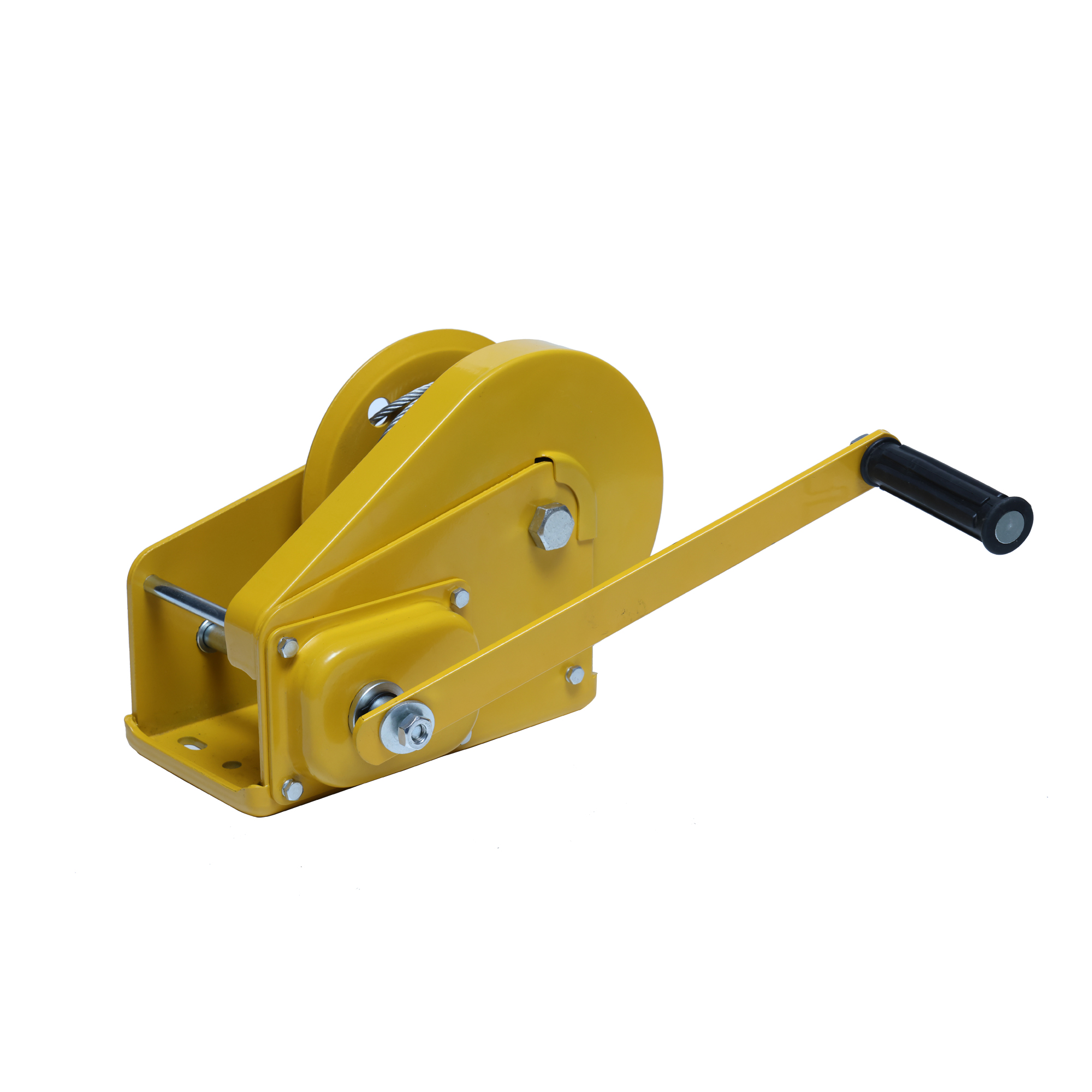

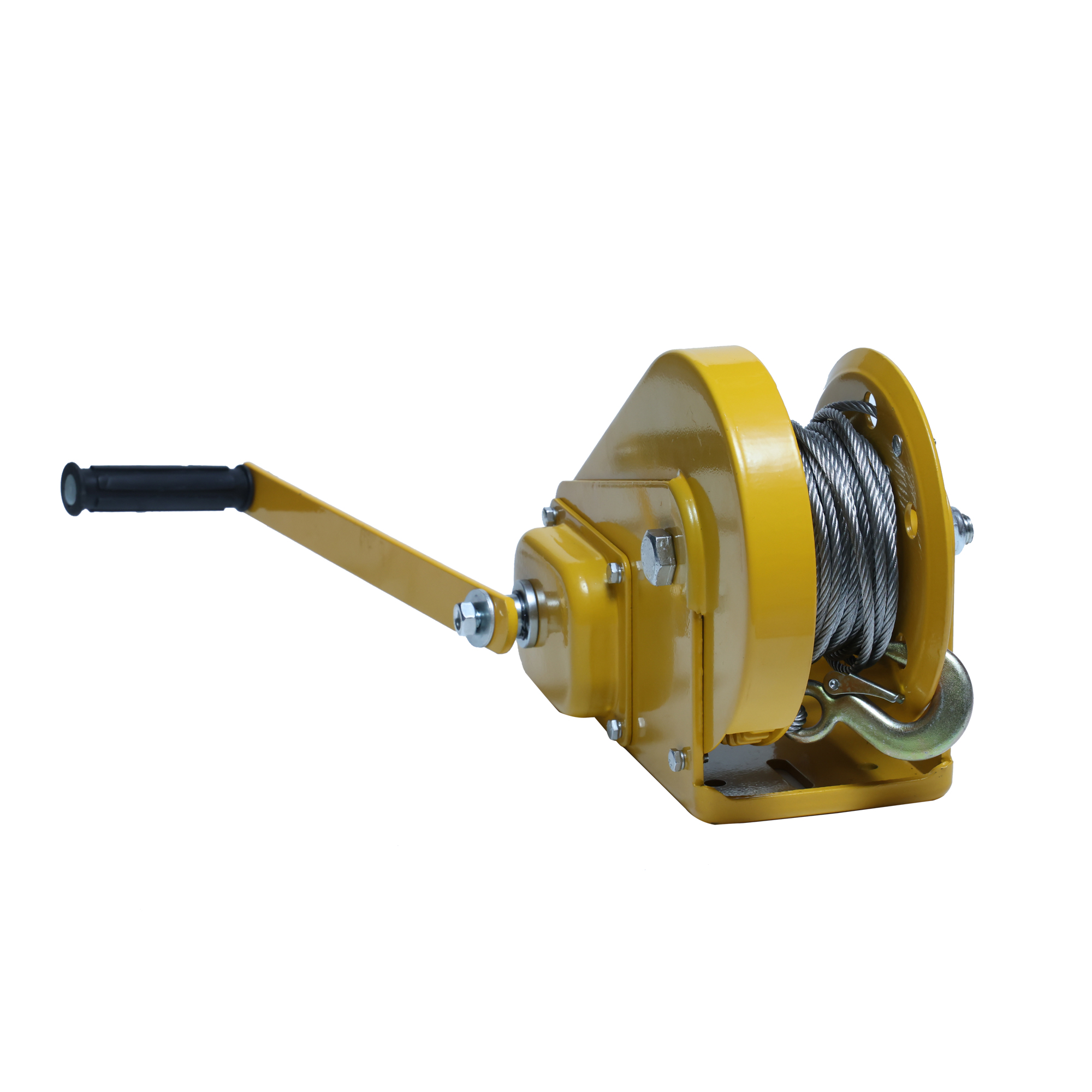

Description: 2600lbs manual winches with cable
Apply to: Box trailer, Flat trailer,Construction trailers, Lives stock trailer, Agriculture vehicle, Industry vehicle, Building vehicle, Road trailer, Commercial trailer,etc.
Feature:
1.large drum hub to maximize cable life.
2.self-activating automatic brake hold the load securely when crank handle is released
3.With cable or strap.
4.safety guard cover available
5.Top quality with competitive price.
6.Widely used in the double beam bridge crane and gantry crane
7.Easy to install and high quality.
8.Compact structure and reasonable design.
Specification
Type | Manual Brake Winch |
Work Load | 2600lbs |
Max. Capacity | 17.5KN |
Gear Ratio | 10.0/1 |
Brake Winch With Wire Rope |
|
Surface treatment | Powder coated |
Color | yellow |
Cable Size | 5.5mmx10m |
Net Weight | 10.3KG |

Top Grade Gears Assy for 4000kgs loading.

2500daN Cargo lashing with standard ratchet 50mm strap 8m length

Support Leg, Tubular welding bracket, 240mm extended height

60mm Jockey Wheel, Hot Dip Galvanized, Automatic Support Shoe, Standard B Type Console, Long Design, 230x80 mm Rubber Wheel
