Pin type forks 500x500 1

Pin type forks 500x500 2

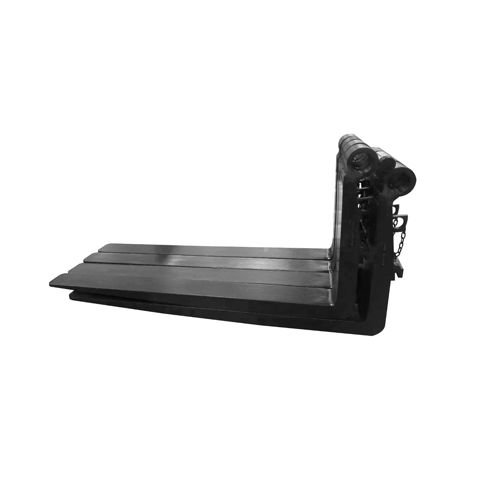

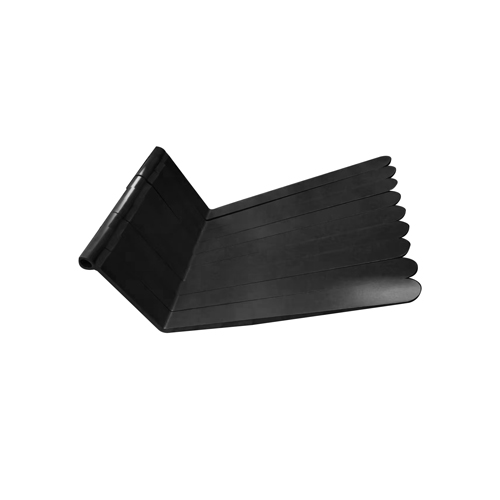

Pin type forks

Capacity: 1.0t to 40t. Service weight: 30kg to 1500kg

Product Details

Model	I.T.A, FEM II, III, IV
Capacity	1.0t to 40t
Service weight	30kg to 1500kg
Surface	Paint coating
Certification	CE, ISO, TUV
Packing	300-500pcs per 20’ container
Application	Used for forklift

Feature:

Ease to install and disassemble
High quality tines with a Factor of Safety of 3:1

Metric Market
Model	Cross Section	Capacity x Load Center
	Width x Thickess(mm)	kg x mm
2A	80x40	1000x500
2A	100x30	750x500
2A	100x35	1000x500
2A	100x40	1250x500
2A	100x45	1500x500
2A	100x50	1650x500
2A	120x35	1000x500
2A	120x40	1500x500
3A	120x45	1500x500
3A	120x50	2450x500
3A	125x40	1500x500
3A	125x45	2000x500
3A	125x50	2500x500
3A	130x40	1500x500
3A	130x45	2000x500
3A	130x60	3000x500
3A	140x50	2700x500
4A	150x50	2500x600
4A	150x60	3500x600
4A	150x65	4000x600
4A	150x70	4500x600
4A	150x75	5000x600

Inch Market
Item No.	Cross Section	Cross Section	Capacity x Load Center
	Width x Thickess(inch)	Width x Thickess(mm)	kg x mm
1	1 1/2 x 3	80x40	850x600
2	1 3/8 x 4	100x35	850x600
3	1 1/2 x 4	100x40	1150x600
4	1 3/4 x 4	100x45	1400x600
5	2 x 4	100x50	1750x600
6	1 1/2 x5	125x40	1400x600
7	1 3/4 x 5	125x45	1750x600
8	2 x 5	125x50	2150x600
9	2 x 6	150x50	2600x600
10	2 1/4 x 6	150x60	3750x600
11	2 1/2 x 6	150x65	4400x600
12	2 3/4 x 6	150x70	5100x600
13	3 x 6	150x75	5850x600
14	2 3/4 x 8	200x70	4530x900
15	3 1/2 x 8	200x90	7500x900
16	4 x 10	250x100	8675x1200
17	4 x 12	300x100	10425x1200
18	5 x 12	300x125	13575x1200
19	6 x 12	300x150	23425x1200
