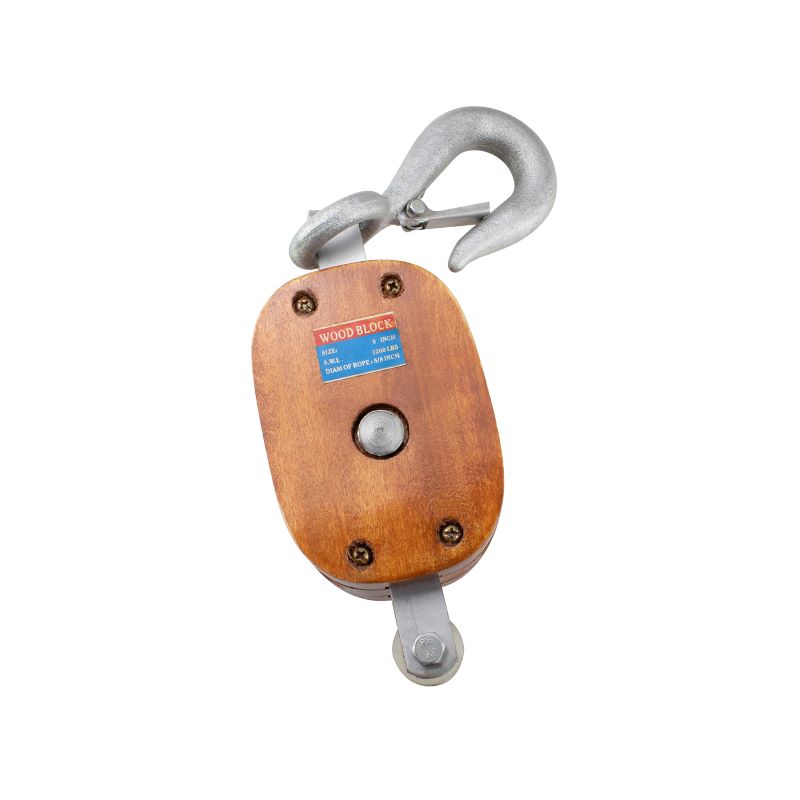

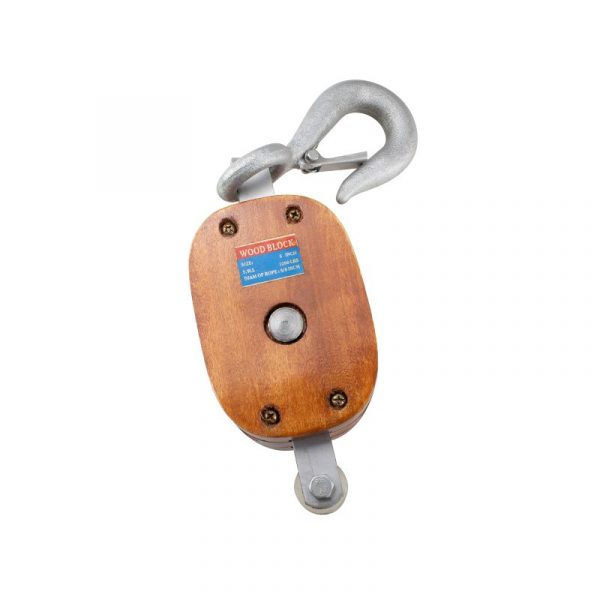

Shackle type and hook type available.
Safety factor: 4 times.
| Sheave dia. | FOR WIRE DIA. | single sheave | double sheave | triple sheave | ||||||
| --- | --- | WLL | Hook | Shackle | WLL | Hook | Shackle | WLL | Hook | Shackle |
| --- | --- | type N W | type N.W | type N.W | type N W | type N W | type N.W | |||
| in | mm | lbs | kg | kg | lbs | kg | kg | lbs | kg | kg |
| 3 | 3/8 | 500 | 0.75 | 0.5 | 800 | 0.95 | 1.1 | 1200 | 1.2 | 1.3 |
| 4 | 1/2 | 1000 | 1 | 0.85 | 1400 | 1.7 | 1.54 | 1800 | 2.02 | 2.3 |
| 5 | 3/4 | 1200 | 1.6 | 1.9 | 1800 | 2.85 | 2.76 | 2400 | 3.6 | 3.4 |
| 6 | 3/4 | 1800 | 2.75 | 2.74 | 2500 | 5.3 | 4.6 | 3200 | 6.7 | 6 |
| 8 | 1 | 2800 | 4.9 | 6.1 | 3800 | 9.1 | 9.55 | 4800 | 11 | 10 |
| 10 | 1.1/8 | 4000 | 8.4 | 8.35 | 6000 | 15.5 | 14.2 | 8000 | 16.7 | 15.5 |
| 12 | 1.1/4 | 5000 | 14.7 | 14.6 | 8000 | 24.5 | 24.5 | 10000 | 25 | 25 |
