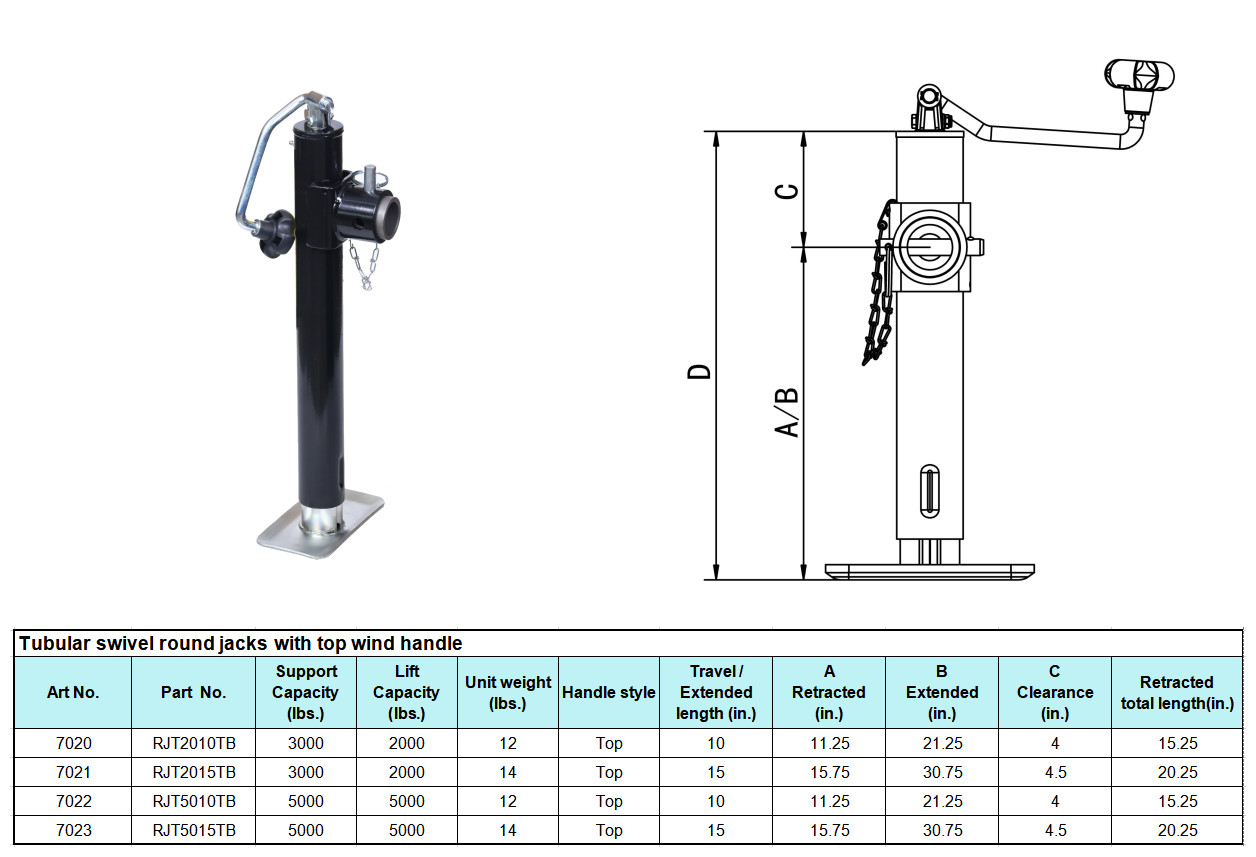

Tube Type | Φ57mm |
Wind | Top wind handle |
Load Capacity | 2000lbs |
Length of Extension | 10” |
Retracted total length | 15.25” |
Locking pin & Chains | Ø 9/16" |
Unit Weight | 12lbs |
Brand | DNL |
Finishing | outer body powder coated, Inner body zinc plated. |
Packing | 160pcs per plywood case (120x92x113cm) |
Apply to:
Box trailer, Horse trailer, Flat trailer,Caravan,Construction trailers, Lives stock trailer, Agriculture vehicle, Industry vehicle, Building vehicle, Road trailer, Commercial trailer,etc.
Feature:
Foldable handle saves more space when retracting with ingenious structure, firm and no noise.
Ergonomic knob offers the best experience of operating easily, no feeling of tiredness.
Reliable quality and stable performance of spindle & bearing extend the service life of products.
