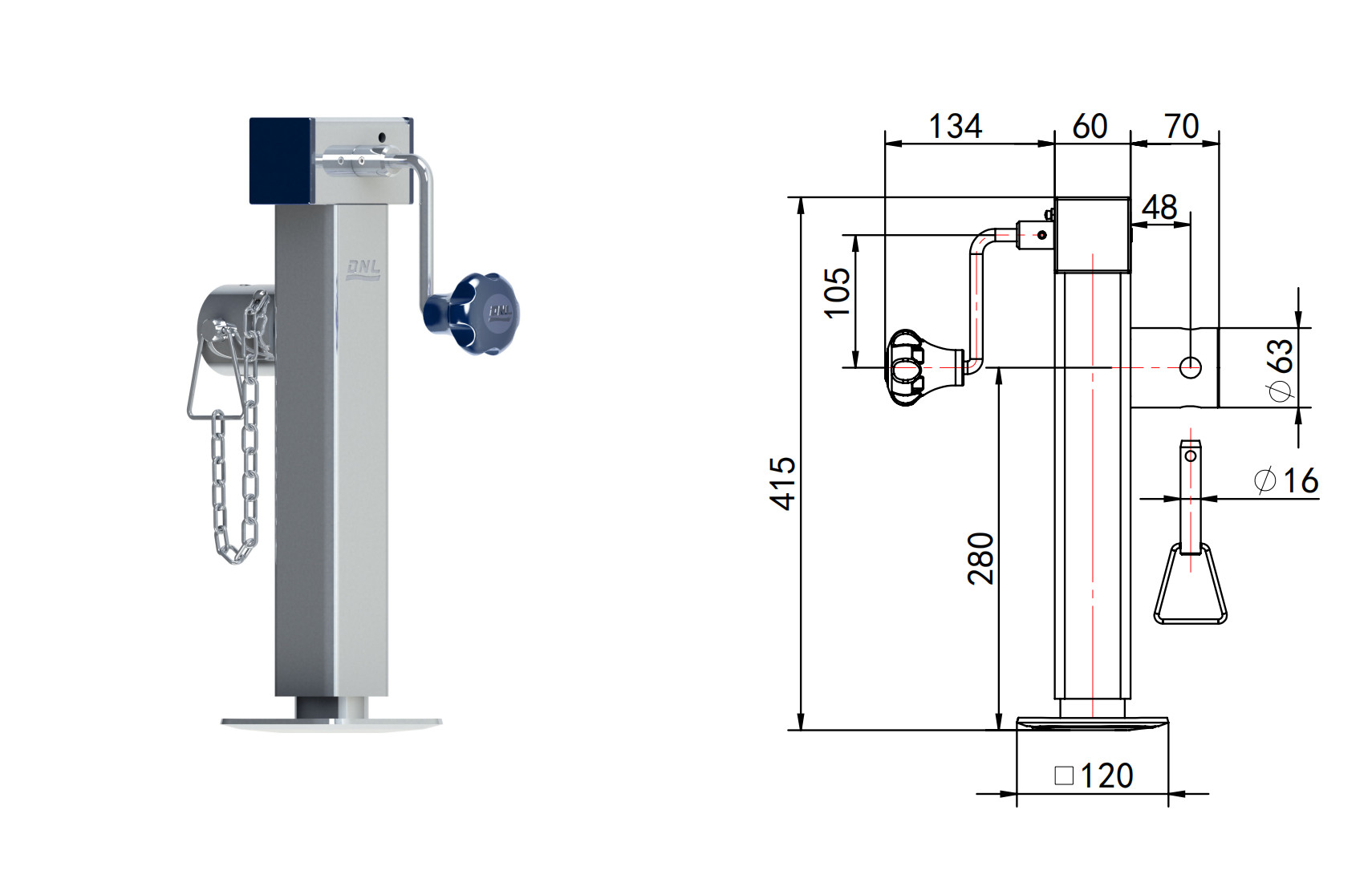

Tube Type | □60mm Square tube |
Load Capacity | 1300kgs |
Length of Extension | 240mm |
Retraction height | 415mm |
Base Size | 120x120mm |
Mounting | Tubular welding bracket |
Handle | With wind handle |
Unit Weight | 6.6kgs |
Brand | DNL |
Finishing | Zinc Plating |
Packing | 125pcs per plywood case (110x110x107cm) |
Apply to:
Flat trailer, Horse trailer, Box trailer, Transportation Trailer, Lives stock trailer, Construction trailer, Commercial trailer,Industry vehicle,etc.
Feature:
Ergonomic knob offers the best experience of operating easily, no feeling of tiredness.
High quality gears make your operation more smoothly and safely.
Reliable quality and stable performance of spindle & bearing extend the service life of products.
High quality plating provides excellent appearance and reliable corrosion resistance.
Special design of the pin and chains ensure your support safety.
