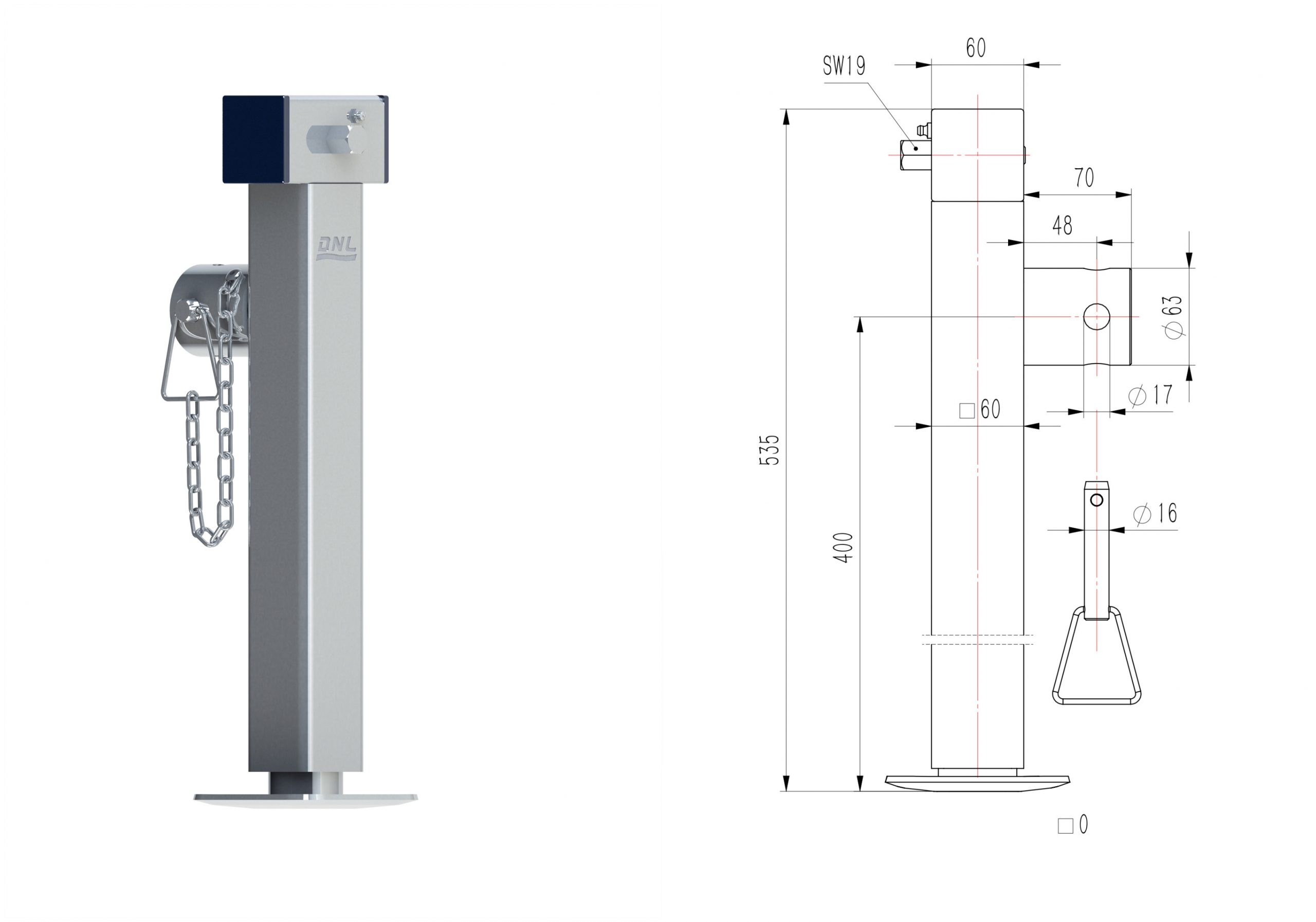

| Tube Type | □60mm Square tube |
| Load Capacity | 1300kgs |
| Length of Extension | 365mm |
| Retraction height | 535mm |
| Base Size | 120x120mm |
| Mounting | Tubular welding bracket |
| Handle | Without wind handle |
| Unit Weight | 8.0kgs |
| Brand | DNL |
| Finishing | Zinc Plating |
| Packing | 125pcs per plywood case (110x110x107cm) |
Apply to:
Flat trailer, Horse trailer, Box trailer, Transportation Trailer, Lives stock trailer, Construction trailer, Commercial trailer,Industry vehicle,etc.
Feature:
High quality gears make your operation more smoothly and safely.
Reliable quality and stable performance of spindle & bearing extend the service life of products.
High quality plating provides excellent appearance and reliable corrosion resistance.
Special design of the pin and chains ensure your support safety.

7000lbs Direct weld square jack top wind 13" drop leg 15" travel

60mm Square tube with side handle 800kg static load screw stroke 350mm galvanized parking jacks

60mm Square tube with side handle 800kg static load screw stroke 350mm Parking Jacks

48mm Jockey Wheel, 220x65mm Solid Rubber Wheel
