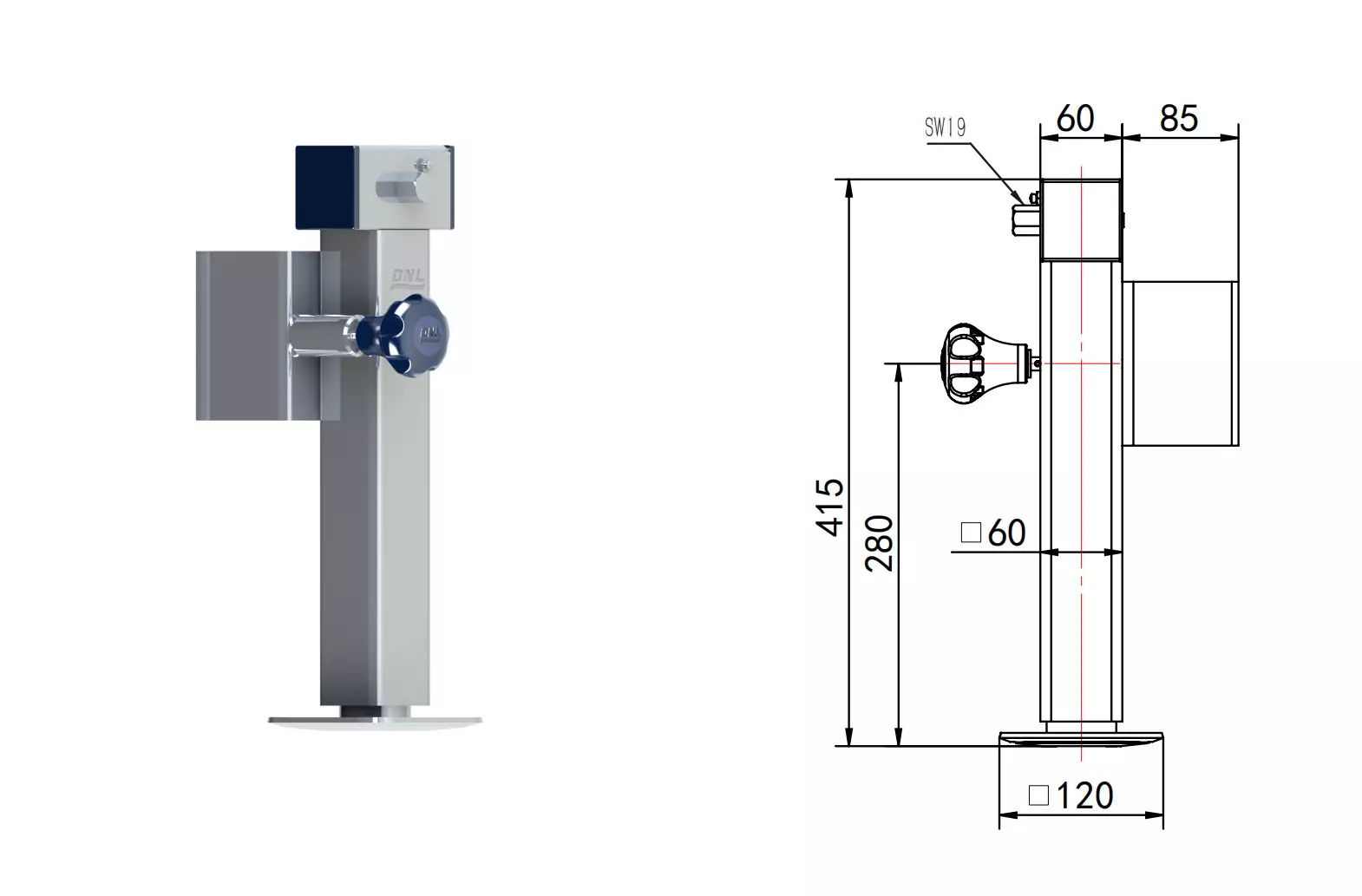

Tube Type | Ø60mm Square tube |
Load Capacity | 1300kgs |
Length of Extension | 240mm |
Retraction height | 415mm |
Base Size | 120x120mm |
Mounting | Thicker swivel bracket |
Handle | Without wind handle |
Unit Weight | 8.1kgs |
Brand | DNL |
Finishing | Zinc Plating |
Packing | 110pcs per plywood case (110x110x107cm) |
Apply to:
Flat trailer, Horse trailer, Box trailer, Transportation Trailer, Lives stock trailer, Construction trailer, Commercial trailer,Industry vehicle,etc.
Feature:
Ergonomic knob offers the best experience of operating easily, no feeling of tiredness.
High quality gears make your operation more smoothly and safely.
Reliable quality and stable performance of spindle & bearing extend the service life of products.
High quality plating provides excellent appearance and reliable corrosion resistance.
Special design of the swivel bracket ensure your support safety.

Top Grade Gears Assy for 4000kgs loading.

Thrust Bearing 51204,φ40x14mm

Lashing Buckle breaking capacity 5000KG fittd with strap 50MM width 51MM

60mm Jockey Wheel, Hot Dip Galvanized, Automatic Support Shoe, Standard B Type Console, Long Design, 230x80 mm Rubber Wheel
