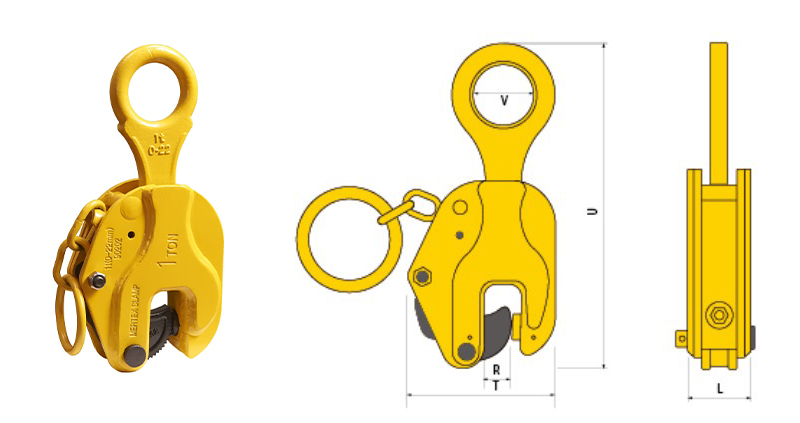

| Model | Jaw Opening [mm] | Load Capacity [kg] | T [mm] | U [mm] | V [mm] | L [mm] | Net Weight [kg] |
| CDH0.8T | 0~16 | 800 | 123 | 265 | 40 | 44 | 2.8 |
| CDH1T | 0~22 | 1000 | 124 | 295 | 50 | 54 | 3.6 |
| CDH2T | 0~30 | 2000 | 154 | 385 | 54 | 56 | 5.5 |
| CDH3T | 0~40 | 3000 | 180 | 400 | 60 | 72 | 10 |
| CDH5T | 0~50 | 5000 | 222 | 483 | 68 | 76 | 17 |
| CDH8T | 0~60 | 8000 | 265 | 535 | 65 | 90 | 26 |
| CDH10T | 0~90 | 10000 | 290 | 600 | 80 | 95 | 32 |
| CDH12T | 25~90 | 12000 | 408 | 700 | 80 | 113 | 48 |
| CDH16T | 60~125 | 16000 | 465 | 780 | 100 | 121 | 80 |
| CDH20T | 0~90 | 20000 | 563 | 933 | 100 | 140 | 149 |
| CDH30T | 10~90 | 30000 | 568 | 918 | 100 | 142 | 155 |

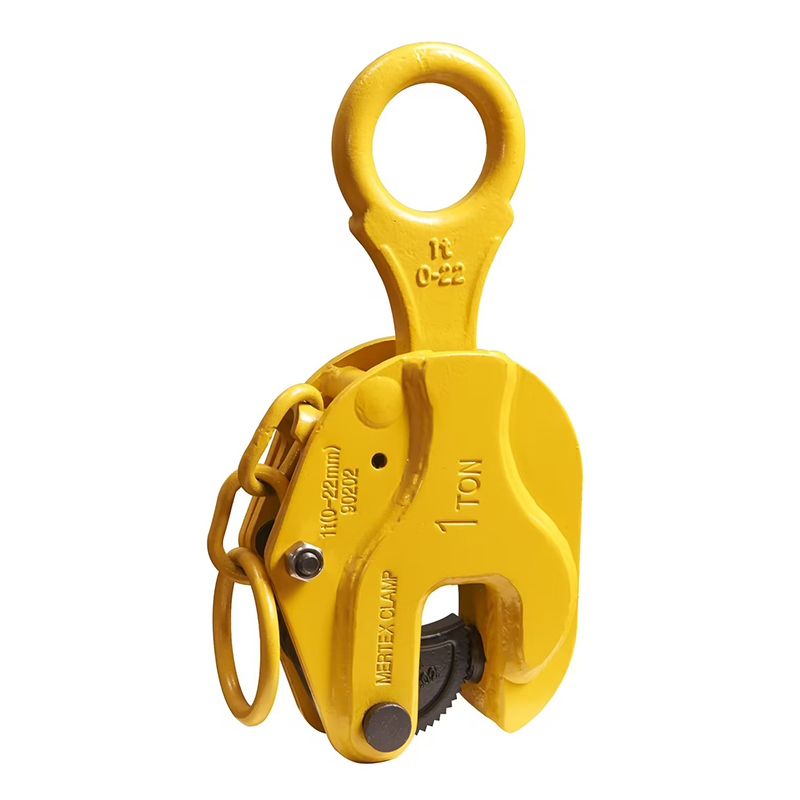

1.Standard design clamp for vertical lifting of steel plates and steel structures.
2.The spring-loaded tightening lock mechanism assures a positive initial clamping force.
3.Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
4.High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.
