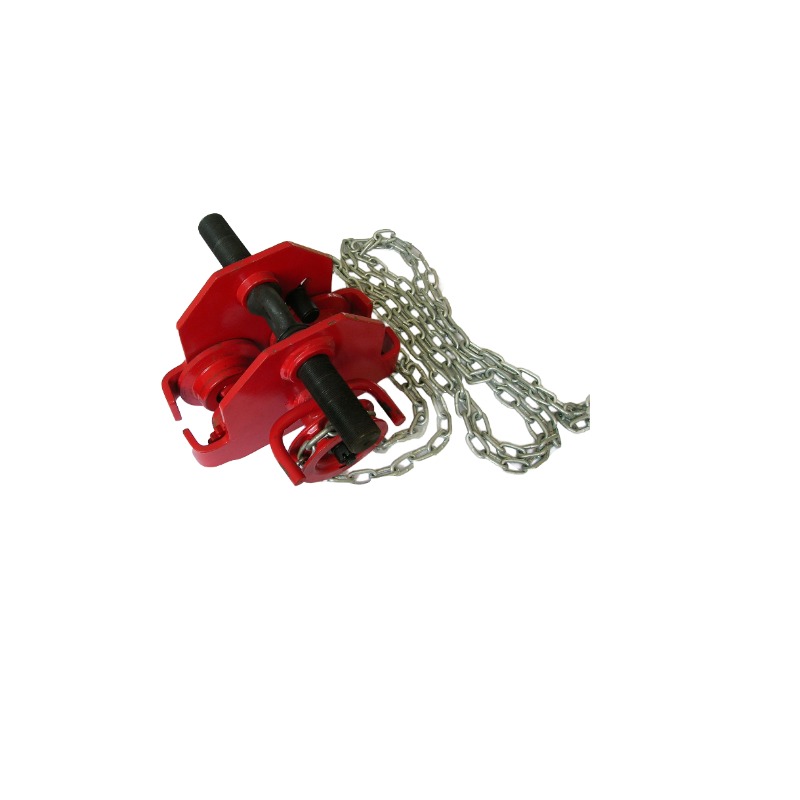

Drop forged screw thread shaft design.
Suitable for manual, electric and pneumatic hoists.
| Model | 0.5T | 1T | 2T | 3T | 5T | |
| Rated Capacity(T) | 0.5 | 1 | 2 | 3 | 5 | |
| Test load(Kn) | 6.25 | 12.5 | 25 | 37.5 | 62.5 | |
| Running height(m) | 3 | 3 | 3 | 3 | 3 | |
| Chain pull to lift full load(N) | 45 | 55 | 100 | 75 | 120 | |
| Min radius curve(m) | 0.9 | 1 | 1.2 | 1.3 | 1.4 | |

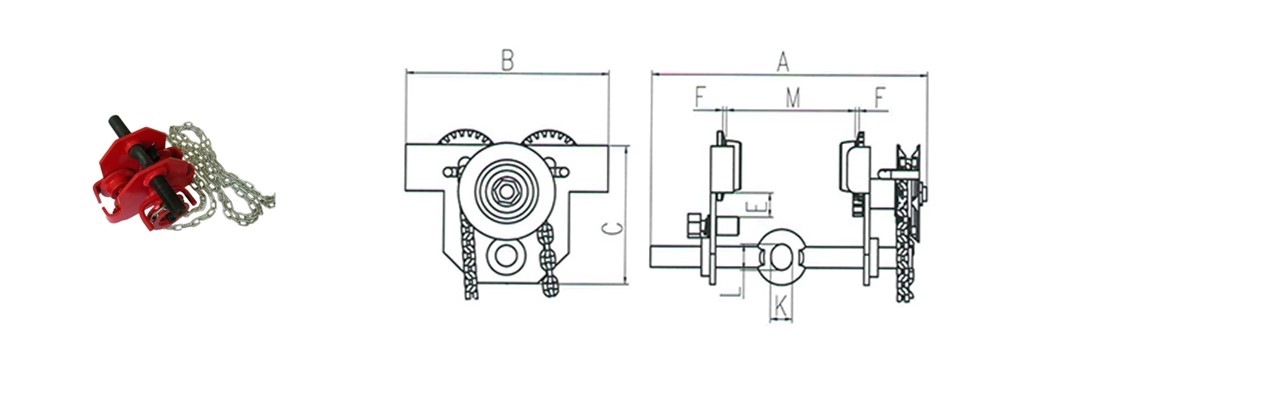

| Dimension(mm) | A Pylon | 353 | 355 | 362 | 370 | 390 |
| B | 200 | 238 | 270 | 320 | 365 | |
| C | 175 | 186 | 215 | 268 | 306 | |
| E | 20 | 30 | 30 | 30 | 32 | |
| F | ≈3 | ≈3 | ≈3 | ≈3 | ≈3 | |
| K | 25 | 30 | 40 | 48 | 60 | |
| L | 30 | 35 | 47 | 58 | 70 | |
| Adjustable beam width | M Pylon | 50-220 | 58-220 | 66-220 | 74-220 | 90-220 |
| Extra weight per meter of extra lift(kg) | ≈1 | ≈1 | ≈1 | ≈1 | ≈1 | |
| Net weight(kg) | Pylon | 9 | 12.3 | 18.2 | 28 | 41.2 |
| Lengthen Pylon | 9.3 | 12.6 | 18.5 | 28.5 | 41.7 | |
Professional transport.
Ideal for delivery and removal.
Drum moving and lifting.
Time and labor saving.
Heavy duty design.
European safety standard.
Stainless steel AISI316 or AISI304.
Full sizes available.
