| Key Features | |
| 1.Housing Material | |
| Aluminum 6063 | Excellent heat dissipation, which ensure the fixture's lifetime |
| 2.Lens Material | |
| Glass with extremely high light transmittance | Compact, firm and efficient design pass 3G vibration test |
| 3.Optional Driver | |
| Meanwell / Sosen | Uniform illumination can comfort operators, which increase the efficiency |
| 4.Optional LED Chips | |
| Citizen / Samsung COB Chips | Special developed Lens with excellent narrow or wide light performace |
| Specifications | |||||||||||||

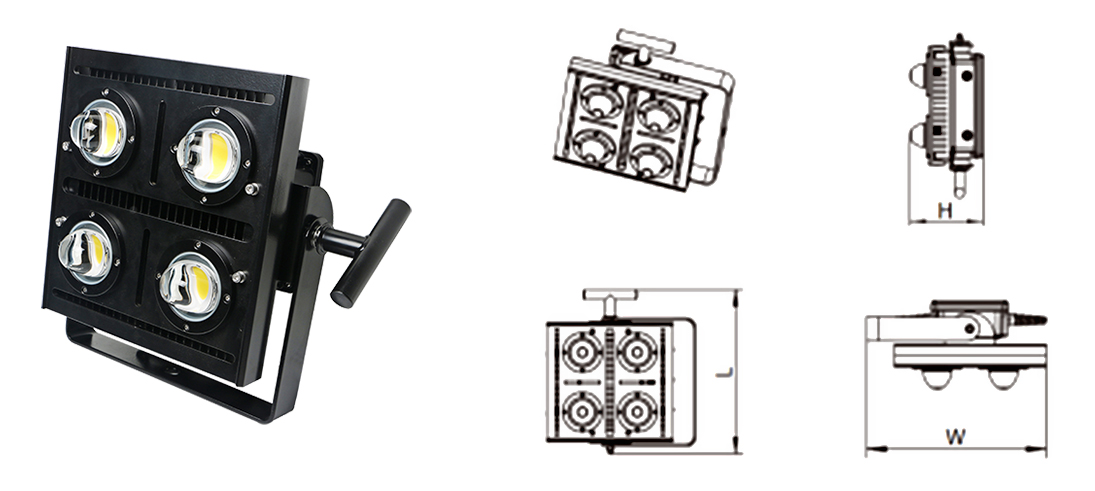

| Part No. | Wattage (W) | Input Voltage(V) | Frequency | Efficacy (lm/w) | Output (lm/fixture) | Output (lm /tower) | CRI | Beam Angle (°) | IP Degree | Dimension(mm) | Weight (kgs) | ||
| Length | Width | Height | |||||||||||

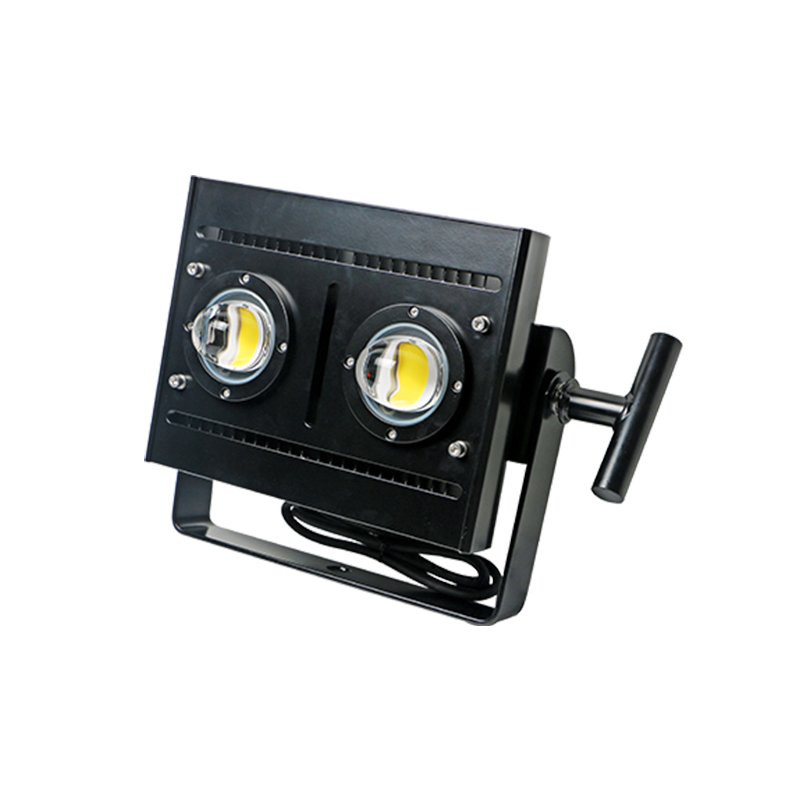

| DTL201/160/COB/2E | 160 | 100-277Vac /48Vdc | 50/60Hz (AC) | 150 | 24000 | 96000 | 70 | 45° /60° /90° | IP67 | 410 | 291 | 190 | 6.7 |

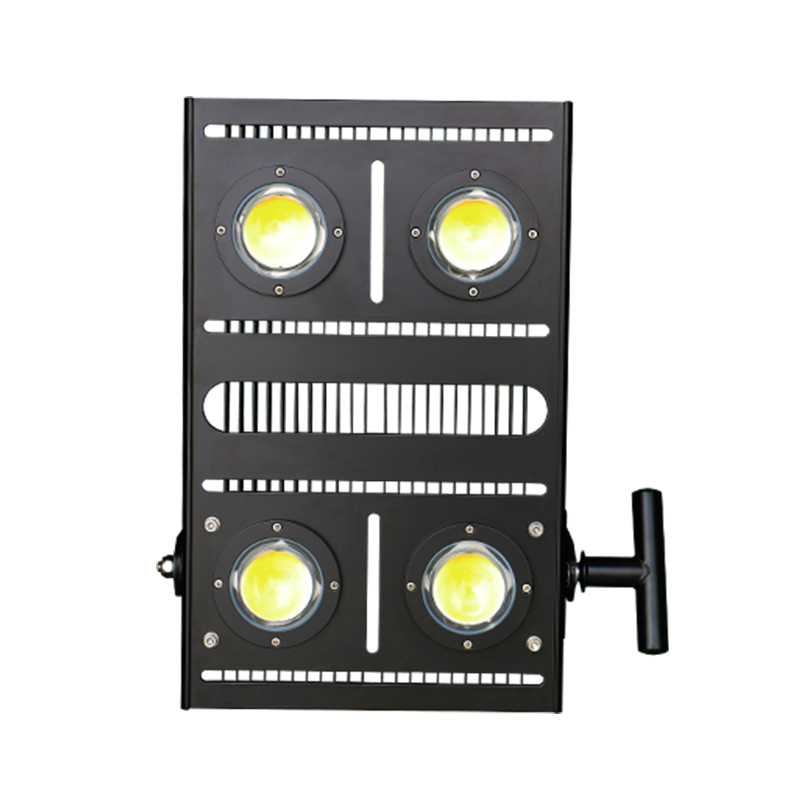

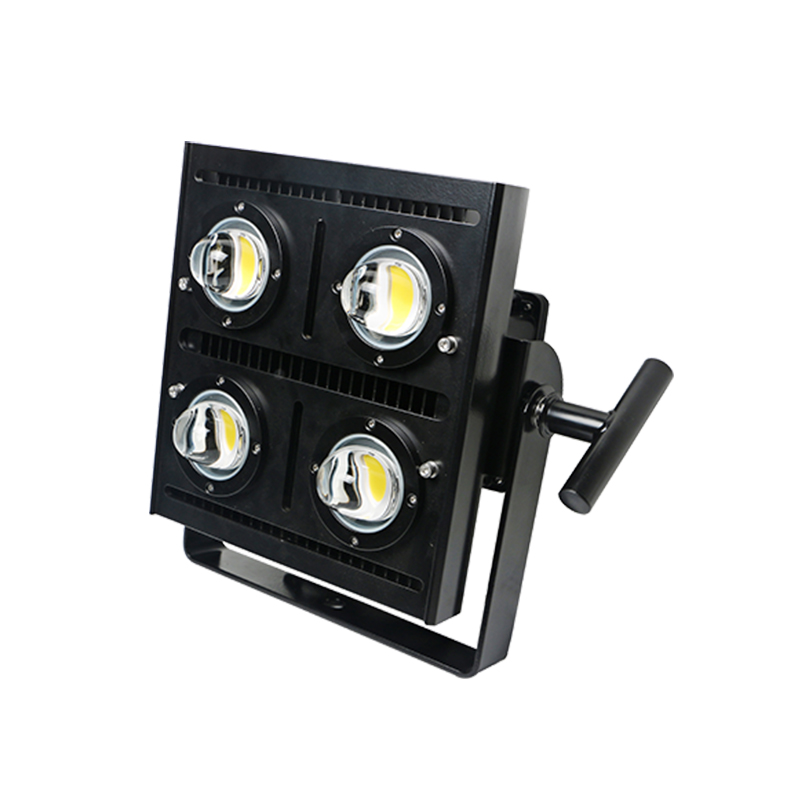

| DTL201/350/COB/4E | 350 | 150 | 52500 | 210000 | 410 | 373 | 200 | 9.7 | |||||
| DTL201/400/COB/4E | 400 | 140 | 56000 | 224000 | 410 | 373 | 200 | 9.7 | |||||
| DTL201/500/COB/4E | 500 | 100-277Vac /48Vdc | 130 | 65000 | 260000 | 410 | 523 | 200 | 11.0 | ||||

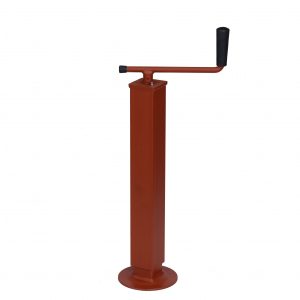

Support Leg, Tubular welding bracket, 365mm extended height with handle
Support Leg, Tubular welding bracket, 240mm extended height with handle

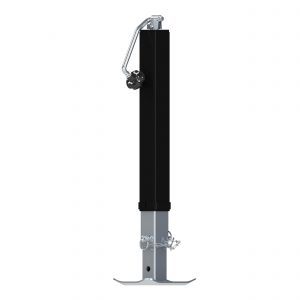

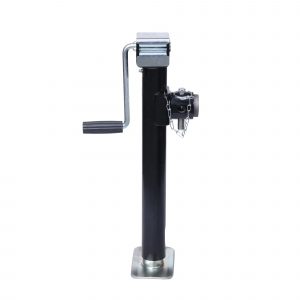

7000lbs Direct weld square jack side wind 13" drop leg 15" travel
