| Key Features: | |
| 1.Housing Material | |
| Aluminum 6063 | Excellent heat dissipation,which ensure the fixture's lifetime |
| 2.Lens Material | |
| PC with extremely high light transmittance | Compact, firm and efficient design pass 3G vibration test |
| 3.Optional Driver | |
| Meanwell / Sosen | Uniform illumination can comfort operators, which increase the efficiency |
| 4.Optional LED Chips | |
| Lumileds / Bridgelux | Special developed Lens with excellent narrow or wide light performace |
| Specifications | |||||||||||||

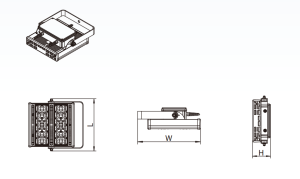

| Model | Wattage (W) | Input Voltage(V) | Frequency | Efficacy (lm/w) | Output (lm/fixture) | Output (lm /tower) | CRI | Beam Angle (°) | IP Degree | Dimension(mm) | Weight (kgs) | ||
| Length | Width | Height | |||||||||||
| DTL203/150/M1 | 150 | 100-277Vac /24Vdc /48Vdc | 50/60Hz (AC) | 150 | 22500 | 90000 | 70 | 45° /60° /90° | IP67 | 386 | 243 | 140 | 6.3 |
| DTL203/250/M2 | 250 | 160 | 40000 | 160000 | 386 | 329 | 140 | 8.5 | |||||
| DTL203/350/M2L | 350 | 150 | 52500 | 210000 | 386 | 405 | 140 | 9.7 | |||||
| DTL203/400/M3 | 400 | 155 | 62000 | 248000 | 386 | 449 | 140 | 10.5 | |||||
| DTL203/500/M3L | 500 | 145 | 72500 | 290000 | 386 | 500 | 140 | 12 | |||||
| DTL203/600/M4 | 600 | 145 | 87000 | 348000 | 386 | 600 | 126 | 15 | |||||
