| Key Features: | |
| 1.Housing Material | |
| Aluminum 6063 | Excellent heat dissipation,which ensure the fixture's lifetime |
| 2.Lens Material | |
| PC with extremely high light transmittance | Compact, firm and efficient design pass 3G vibration test |
| 3.Optional Driver | |
| Meanwell / Sosen | Uniform illumination can comfort operators, which increase the efficiency |
| 4.Optional LED Chips | |
| Lumileds / Bridgelux | Special developed Lens with excellent narrow or wide light performace |
| Specifications | |||||||||||||
| Model | Wattage (W) | Input Voltage(V) | Frequency | Efficacy (lm/w) | Output (lm/fixture) | Output (lm /tower) | CRI | Beam Angle (°) | IP Degree | Dimension(mm) | Weight (kgs) | ||

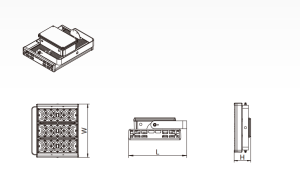

| Length | Width | Height | |||||||||||
| DTL203/350/M3T | 350 | 100-277Vac /24Vdc /48Vdc | 50/60Hz (AC) | 160 | 56000 | 224000 | 70 | 45° /60° /90° | IP67 | 366 | 415 | 140 | 11.0 |
| DTL203/400/M3T | 400 | 150 | 60000 | 240000 | 366 | 415 | 140 | 11.5 | |||||
| DTL203/500/M4T | 500 | 160 | 80000 | 320000 | 366 | 534 | 140 | 15.5 | |||||
| DTL203/600/M4T | 600 | 150 | 90000 | 360000 | 366 | 534 | 140 | 16.0 | |||||
| DTL203/700/M5T | 700 | 145 | 101500 | 406000 | 366 | 654 | 140 | 17.0 | |||||
