| Key Features: | |
| 1.Housing Material | |
| Aluminum 6063 | Excellent heat dissipation, which ensure the fixture's lifetime |
| 2.Lens Material | |
| PC or Glass with extremely high light transmittance | Compact, firm and efficient design pass 3G vibration test |
| 3.Optional Driver | |
| Sosen | Uniform illumination can comfort operators, which increase the efficiency |
| 4.Optional LED Chips | |
| Bridgelux SMD / Samsung / Citizen LED COB | Special developed Lens with excellent narrow or wide light performace |
| Specifications | |||||||||||||

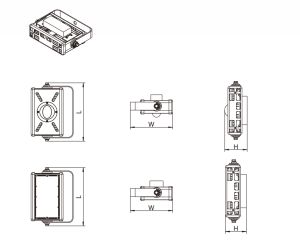

| Model | Wattage (W) | Input Voltage(V) | Frequency | Efficacy (lm/w) | Output (lm/fixture) | Output (lm /tower) | CRI | Beam Angle (°) | IP Degree | Dimension(mm) | Weight (kgs) | ||
| Length | Width | Height | |||||||||||
| DTL209/60/1E/COB | 60 | 100-277Vac /24Vdc /48Vdc | 50/60Hz (AC) | 150 | 9000 | 36000 | 70 | 45° /60° /90° | IP67 | 290 | 210 | 120 | 2.8 |
| DTL209/100/1E/COB | 100 | 145 | 14500 | 58000 | 290 | 210 | 120 | 3.0 | |||||
| DTL209/150/1E/COB | 150 | 130 | 19500 | 78000 | 290 | 270 | 120 | 4.0 | |||||
| DTL209/60/M1/SMD | 60 | 170 | 10200 | 40800 | 290 | 210 | 100 | 2.8 | |||||
| DTL209/100/M1/SMD | 100 | 160 | 16000 | 64000 | 290 | 210 | 100 | 3.0 | |||||
| DTL209/150/M1L/SMD | 150 | 160 | 24000 | 96000 | 290 | 270 | 100 | 3.5 | |||||
| DTL209/200/M1L/SMD | 200 | 145 | 29000 | 116000 | 290 | 320 | 98 | 4.5 | |||||
| DTL209/240/M1L/SMD | 240 | 140 | 33600 | 134400 | 290 | 320 | 98 | 5.0 | |||||
| DTL209/300/M2/SMD | 300 | 160 | 48000 | 192000 | 340 | 240 | 116 | 7.0 | |||||
