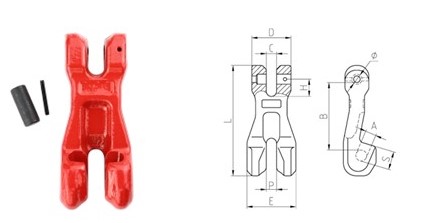

| ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | A±0.3(mm) | B±2(mm) | C±0.5(mm) | D±1(mm) | E±2(mm) | H±1(mm) | L±2(mm) | φ±0.5(mm) | P±0.5(mm) | S±0.3(mm) |
| 6-8 | 0.18 | 1.12 | 4.48 | 8 | 44 | 7.5 | 30 | 32.8 | 11.8 | 73.5 | 7.8 | 7.5 | 12 |
| 7/8-8 | 0.45 | 2 | 8 | 10.5 | 61.7 | 9.5 | 36 | 45 | 15.7 | 101 | 9.2 | 9.5 | 17 |
| 10-8 | 0.93 | 3.15 | 12.6 | 12.4 | 92 | 13 | 48 | 55 | 20 | 138 | 13.2 | 13 | 28 |
| 13-8 | 1.88 | 5.3 | 21.2 | 16 | 115 | 16.5 | 59 | 75 | 24.5 | 177 | 16.2 | 16.5 | 34.5 |
| 16-8 | 3.5 | 8 | 32 | 19.5 | 143 | 21 | 73 | 93 | 30.5 | 220 | 20 | 21 | 40 |
| 18/20-8 | 4.43 | 12.5 | 50 | 23 | 152 | 23.5 | 81 | 102 | 36 | 238 | 24.3 | 23.5 | 46 |
| 22-8 | 8.05 | 15 | 60 | 26 | 195 | 25.5 | 98 | 118 | 42 | 295 | 28.1 | 25.5 | 57.5 |
1.Super alloy steel.
2.Quenched and Tempered.
3.Suitable for G80 EN818-2 chains.
4.100% Magnetic powder inspection.
5.Individually proof load test at 2.5 times WLL.
6.Fatigue test at 1.5 times WLL for 20,000 cycles.
7.Strict breaking test.
8.Surface treatment: Powder coated.
