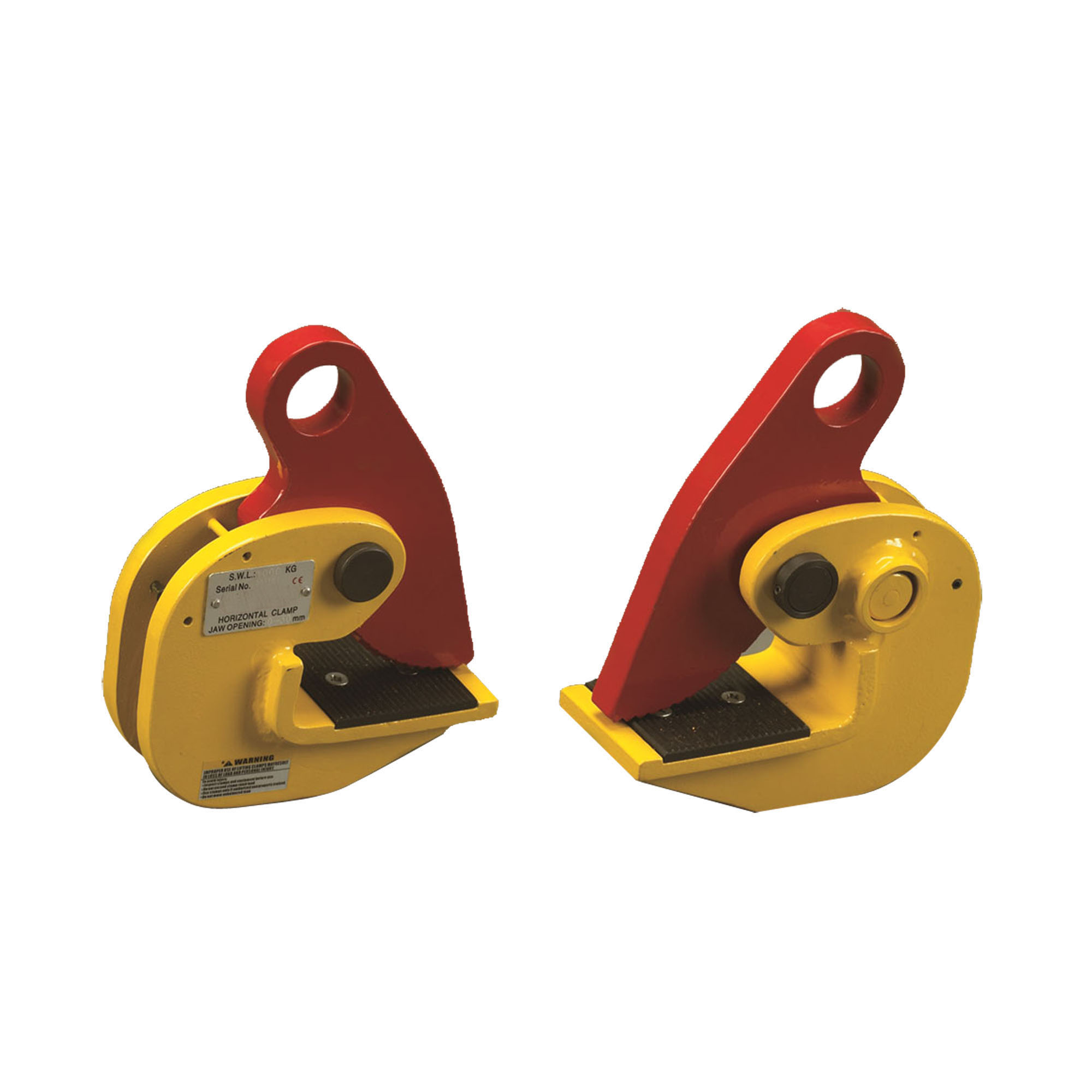

Horizontal Lifting Clamp PDB Type

Horizontal Lifting Clamp PDB Type

High quality carbon steel.

Used in pairs or multiples.

Product Details

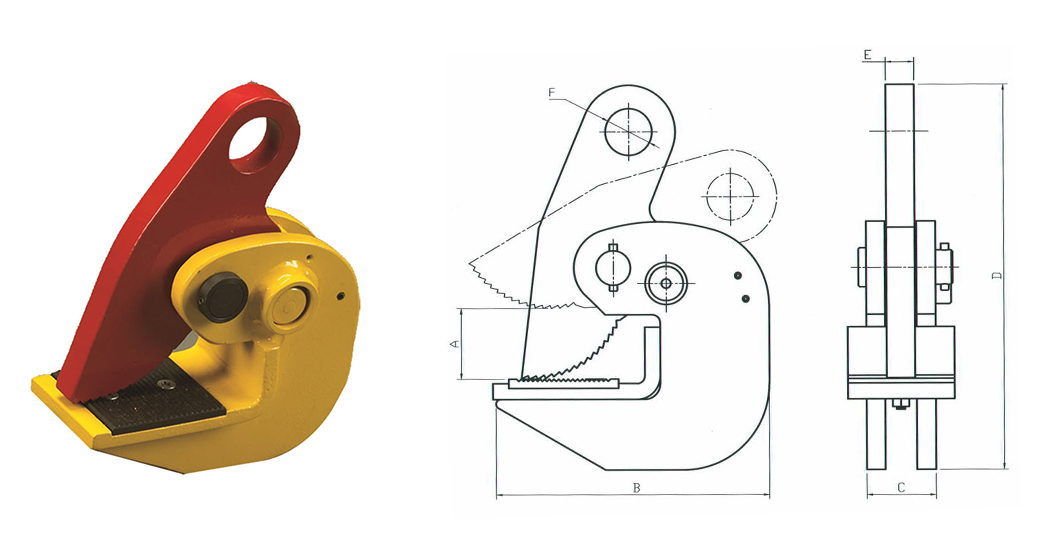

Model	Capacity	A	B	C	D	E	F	Unit weight（Per Pair)
PDB0.8T	0.8T	0-25	125	40	165	14	22	5
PDB1T	1T	0-30	148	40	205	16	25	7
PDB1.6T	1.6T	0-30	148	45	205	16	30	8
PDB2T	2T	0-40	172	47	245	18	30	10
PDB3.2T	3.2T	0-45	180	50	245	18	30	12
PDB4T	4T	0-50	170	52	260	18	30	13
PDB5T	5T	0-55	180	56	260	20	30	15
PDB6T	6T	0-65	210	62	308	22	37	21
PDB6T(B)	6T	0-130	316	62	310	22	37	44
PDB8T	8T	0-100	282	65	400	25	55	44
PDB10T	10T	0-125	325	75	500	28	55	66

Suitable for lifting and transport of steel plates.
Manufactured from high quality carbon steel and with a safety lock.
Horizontal plate clamp must be used in pairs or multiples.
Estimate the plate that is to be lifted or moved and make sure it does not exceed the rated load of the clamp.
5.Do not lift the plate that is not fully engaged with the clamping jaws.
