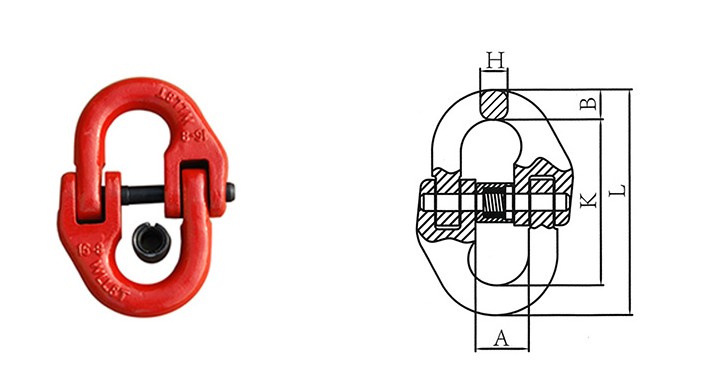

| ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | A±1.5(mm) | B±1(mm) | L±2.5(mm) | K±2(mm) | H±1(mm) |
| 6-8 | 0.08 | 1.12 | 4.48 | 15 | 7.5 | 58 | 42 | 7 |
| 7-8 | 0.145 | 1.5 | 6 | 20 | 8.5 | 73 | 54.8 | 8.5 |
| 7/8-8 | 0.146 | 2 | 8 | 20.5 | 9.5 | 79.5 | 60.5 | 8.5 |
| 8-8 | 0.16 | 2 | 8 | 20.5 | 9.5 | 79.5 | 60.5 | 8.5 |
| 10-8 | 0.3 | 3.15 | 12.6 | 26 | 12 | 90.5 | 68 | 11.5 |
| 13-8 | 0.65 | 5.3 | 21.2 | 30 | 15 | 117 | 87 | 15 |
| 16-8 | 1.15 | 8 | 32 | 35 | 19.8 | 148 | 108.4 | 19.8 |
| 18-8 | 1.84 | 10 | 40 | 38 | 21 | 154 | 112 | 21 |
| 20-8 | 2.1 | 12.5 | 50 | 41 | 24 | 169.5 | 121.5 | 24 |
| 22-8 | 2.87 | 15 | 60 | 49.5 | 26 | 193.5 | 141.5 | 26 |
| 26-8 | 4.5 | 21.2 | 84.8 | 57.5 | 31 | 220 | 158 | 30 |
| 32-8 | 8.21 | 31.5 | 126 | 67.5 | 38 | 281 | 205 | 37 |
1.Super alloy steel.
2.Quenched and Tempered.
3.Suitable for G80 EN818-2 chains.
4.100% Magnetic powder inspection.
5.Individually proof load test at 2.5 times WLL.
6.Fatigue test at 1.5 times WLL for 20,000 cycles.
7.Strict breaking test.
8.Surface treatment: Powder coated.
