Super alloy steel.
Suitable for G80 EN818-2 chains.

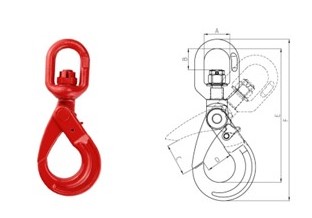

| ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | A±1(mm) | B±1(mm) | C±2(mm) | D±2(mm) | E±3(mm) | F±3(mm) |
| 6-8 | 0.71 | 1.12 | 4.48 | 32.5 | 25.5 | 32 | 28 | 152.5 | 184 |
| 7/8-8 | 1.15 | 2 | 8 | 36 | 29.5 | 40 | 35 | 189 | 228 |
| 10-8 | 1.86 | 3.15 | 12.6 | 42 | 35 | 50 | 45 | 223 | 268 |
| 13-8 | 3.51 | 5.3 | 21.2 | 50 | 41 | 60 | 52.5 | 267 | 324 |
| 16-8 | 7.33 | 8 | 32 | 70 | 58 | 65 | 63 | 330 | 416 |
| 18/20-8 | 10.3 | 12.5 | 50 | 72 | 63 | 82 | 85 | 370 | 452 |
| 22-8 | 17.5 | 15 | 60 | 97 | 98 | 85 | 76 | 466 | 564 |
| 26-8 | 23 | 21.2 | 84.8 | 123 | 115 | 112 | 96 | 544 | 661 |
| 32-8 | 81 | 31.5 | 126 | 140 | 147 | 135 | 135 | 679 | 830 |
1.Super alloy steel.
2.Quenched and Tempered.
3.Suitable for G80 EN818-2 chains.
4.100% Magnetic powder inspection.
5.Individually proof load test at 2.5 times WLL.
6.Fatigue test at 1.5 times WLL for 20,000 cycles.
7.Strict breaking test.
8.Surface treatment: Powder coated.
