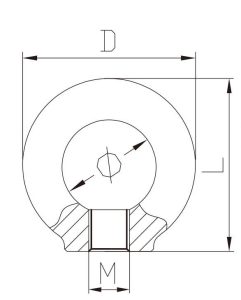

| ITEM NO. | WEIGHT (kg) | WLL(T) (4:1) | D | Φ | L | |
| WLL0° | WLL90° | |||||
| M6 | 0.05 | 0.4 | 0.15 | 36 | 20 | 36 |
| M8 | 0.05 | 0.8 | 0.4 | 36 | 20 | 36 |
| M10 | 0.09 | 1 | 0.4 | 45 | 25 | 45 |
| M12 | 0.16 | 2 | 0.75 | 54 | 30 | 53 |
| M14 | 0.24 | 3 | 1 | 63 | 35 | 62 |
| M16 | 0.24 | 4 | 1.5 | 63 | 35 | 62 |
| M18 | 0.34 | 5 | 2 | 72 | 40 | 71 |
| M20 | 0.36 | 6 | 2.3 | 72 | 40 | 71 |
| M22 | 0.58 | 7 | 2.8 | 81 | 45 | 81 |
| M24 | 0.72 | 8 | 3.2 | 90 | 50 | 90 |
| M27 | 0.72 | 10 | 4 | 90 | 50 | 90 |
| M30 | 1.32 | 12 | 4.5 | 108 | 60 | 109 |
| M33 | 1.29 | 14 | 5 | 108 | 60 | 109 |
| M36 | 2.10 | 16 | 7 | 126 | 70 | 128 |
| M39 | 2.09 | 20 | 8 | 126 | 70 | 128 |
| M42 | 3.11 | 24 | 9 | 144 | 80 | 147 |
| M45 | 3.05 | 28 | 10 | 144 | 80 | 147 |
| M48 | 5.02 | 32 | 12 | 166 | 90 | 168 |
| M52 | 4.94 | 36 | 13.5 | 166 | 90 | 168 |
| M56 | 6.69 | 40 | 15 | 184 | 100 | 187 |
| M64 | 9.30 | 50 | 17 | 206 | 110 | 208 |
1.Super alloy steel.
2.Quenched and Tempered.
3.Suitable for G80 EN818-2 chains.
4.100% Magnetic powder inspection.
5.Individually proof load test at 2.5 times WLL.
6.Fatigue test at 1.5 times WLL for 20,000 cycles.
7.Strict breaking test.
8.Surface treatment: Powder coated.
