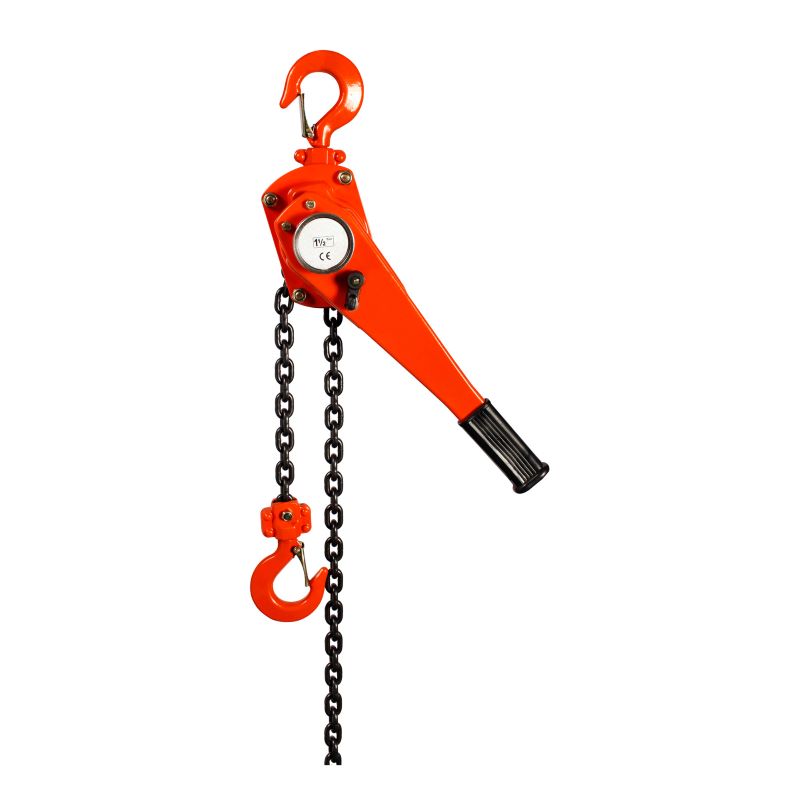

HSH-C Lever Block

Highly shock-resistant.

Forged reinforced hooks.

Model	HSH-7.5C	HSH-10C	HSH-15C	HSH-30C	HSH-60C
Rated load (T)	0.75	1	1.5	3	6
Test load (T)	1.125	1.5	2.25	4.5	9
Standard lift (m)	1.5	1.5	1.5	1.5	1.5
Min. distance between two hooks(mm)	295	310	335	405	550
Efforts required at capacity (N)	140	186	234	363	370
No. of load chains	1	1	1	1	2
Diameter of load chain (mm)	6	6	7.1	10	10

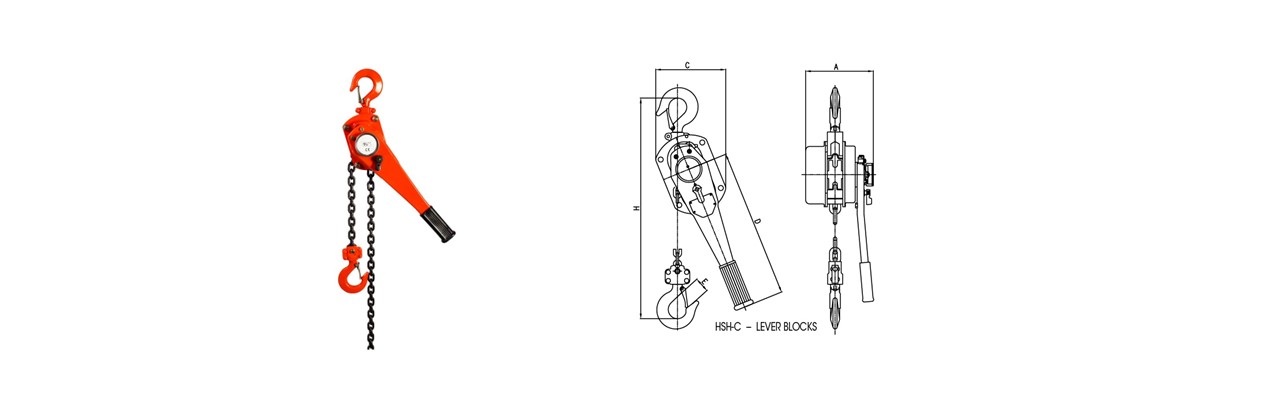

Dimensions (mm) A	148	148	163	191	191
C	128	128	148	181	244
H	295	310	335	405	550
D	256	256	368	368	368
E	26	26	30	34	47
Net weight (kg)	7.3	7.8	10.4	17.2	26

Capacity from 0.25T to 9T.
Chain guides provide smooth chain operation.
Light weight steel construction with durable powder coat finish.
Drop forged hooks and hook holders, heat treated to ensure the safety and durability.
Gear assembly provide smooth operation by little hand efforts.
Used in terminals, mining, shipbuilding, construction, transport, telecommunications and other sectors of the equipment installation, lifting objects, pulling parts, parts binding, the line taut and welding and other occasions.
