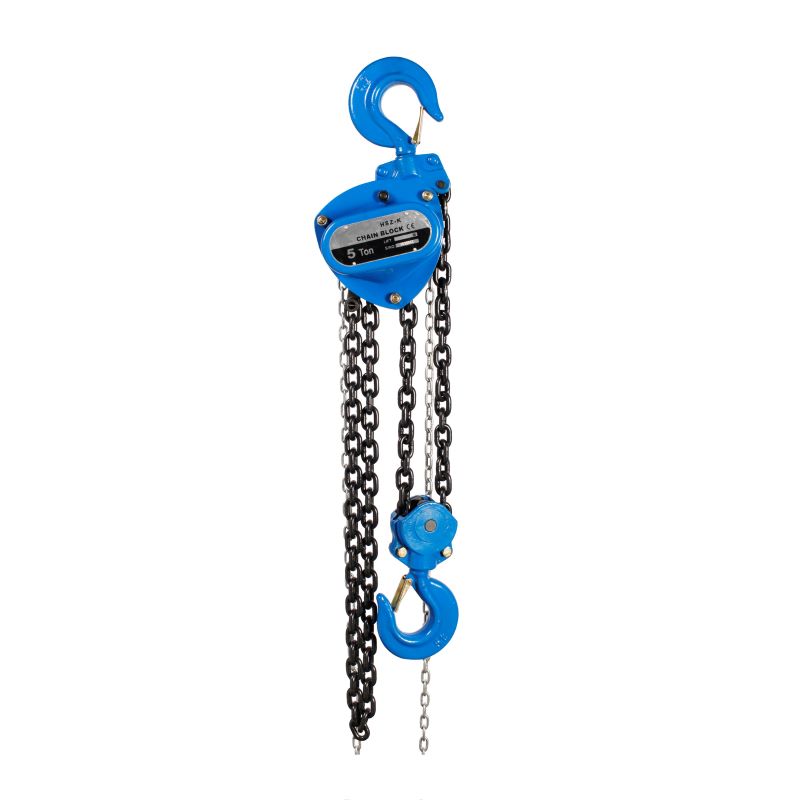

| Model | HSZ-0.5K | HSZ-1K | HSZ-1.5K | HSZ-2K | HSZ-3K | HSZ-5K | HSZ-10K | HSZ-20K | HSZ-30K |
| Rated load (T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 |
| Standard lift (m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Test load (T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | 37.5 |
| Efforts required | 262 | 324 | 395 | 330 | 402 | 430 | 438 | 438 | 442 |
| at capacity (N) | |||||||||
| Diameter of load | 5 | 6 | 7.1 | 6 | 7.1 | 10 | 10 | 10 | 10 |
| chain (mm) | |||||||||
| No. of load chains | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | 10 |

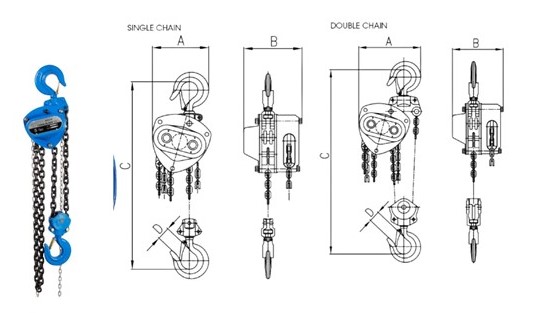

| Dimensions (mm) A | 120 | 147 | 181 | 158 | 202 | 228 | 373 | 638 | 703 |
| B | 116 | 136 | 147 | 136 | 148 | 178 | 178 | 195 | 397 |
| C | 285 | 332 | 410 | 470 | 550 | 640 | 737 | 1022 | 1050 |
| D | 28 | 32 | 38 | 40 | 44 | 50 | 64 | 82 | 82 |
| Net weight (kg) | 7 | 10 | 15 | 23 | 23 | 38 | 68 | 160 | 235 |
| Extra weight per meter of extra lift (kg) | 1.5 | 1.8 | 2 | 3.2 | 3.2 | 5.3 | 9.8 | 19.6 | 23.9 |
construction sites, agriculture and other fields, to lift goods
and lifting equipment, in particular in conditions with no
power supply or narrow, demonstrate superiority.
European safety standard.
Flexible and convenient.
Forged, quenched and tempered.
High tensile strength.
High tensile polyester.
Low elongation.
Wear resistant.
High quality carbon steel.
Used in pairs or multiples.
