Products

Dedicated for best quality innovations

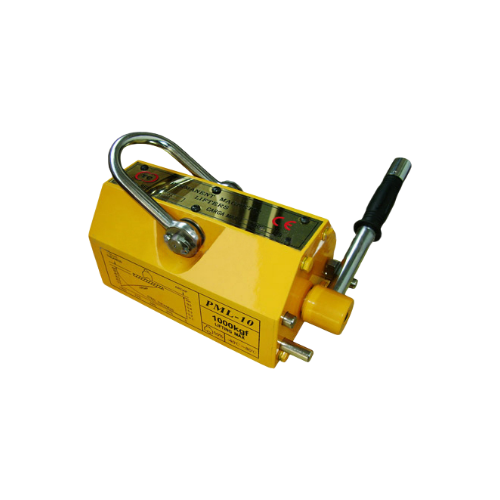

Permanent Lifting Magnet

Easy and safe for operation.

Widely used.

Product Details

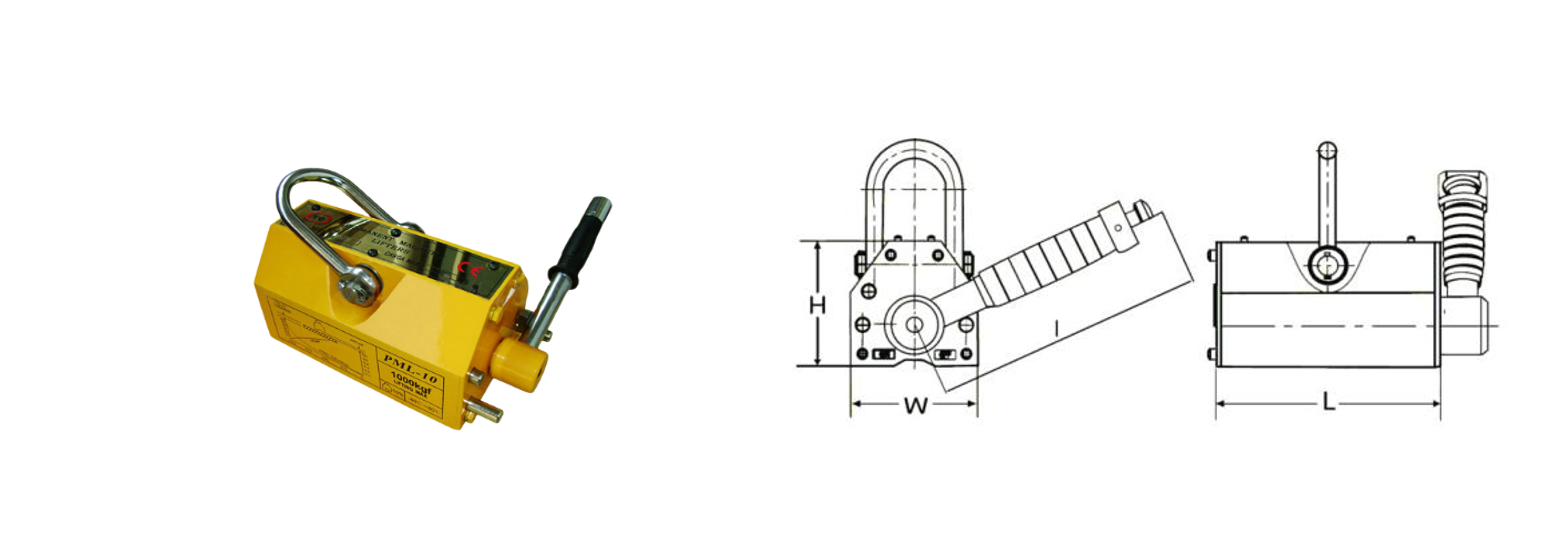

MODEL	Rated Capacity(plate)	Cylindrical Capacity	Max pull-off strength	L	W	H	I	Working temperature	Net Weight
MODEL	(kgs)	(kgs)	(kgs)	L	W	H	I	(℃)	(kgs)
PML-1	100	30	350	92	64	70	142	＜80	3
PML-2	200	60	700	158	64	70	142	＜80	5
PML-3	300	100	1050	165	88	96	176	＜80	10
PML-5	500	150	1750	216	118	120	219	＜80	20
PML-6	600	200	2100	236	118	120	219	＜80	24
PML-10	1000	300	3500	264	168	168	266	＜80	50
PML-15	1500	500	5250	353	172	168	380	＜80	70
PML-20	2000	600	7000	378	230	217	462	＜80	125
PML-30	3000	一	10500	453	290	265	567	＜80	220
PML-50	5000	一	17500	647	290	265	707	＜80	355
PML-60	6000	一	19200	713	290	265	707	＜80	398

Easy, safe for operation and handling, which are widely used as

hoisting devices in factories, docks, warehouses and transportation

industries.

Avoid of being bumped, which affected its lift-span and never bump handle or damage holding surface. After using, it's better to protect the lifter' holding surface by anti-rust oil.
