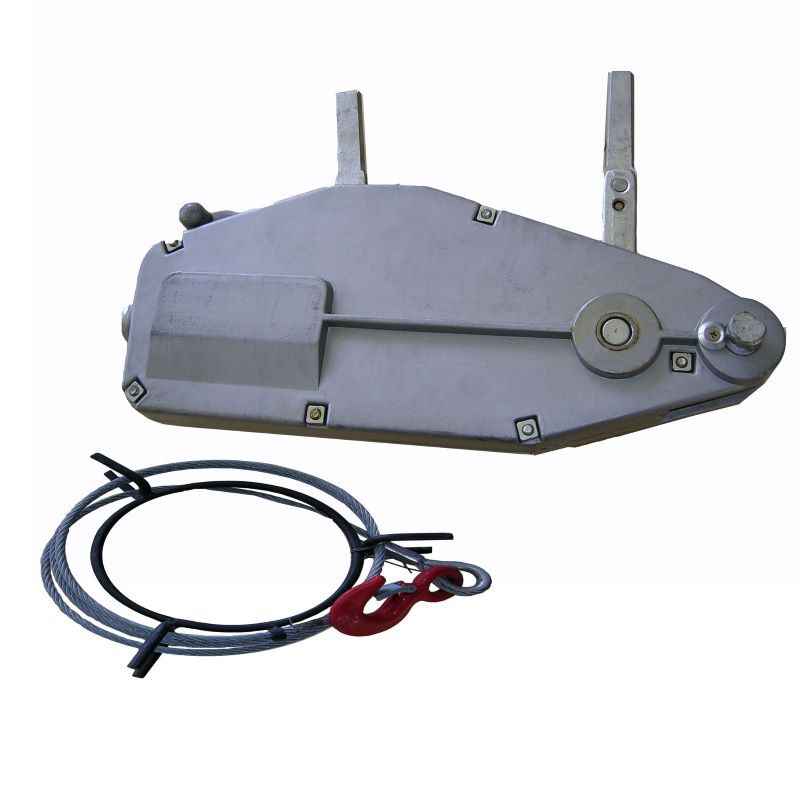

Wire Rope Pulling Machine

Overload protection.

Securing loads over long distances.

PDF
Get a Quote

Product Details

Item No.0.8T1.6T3.2T5.4T
Rated Capacity                             kg                             800160032005400
Rated Forward Handpower           N            343441441745
Rated Forward Travel                    mm                   ≥52≥55≥28≥30
Rope Diameter                              mm                            8.3111620
Wire Rope Safety Factor5555
Maximum Travelling Load               kg                  1200240050008000

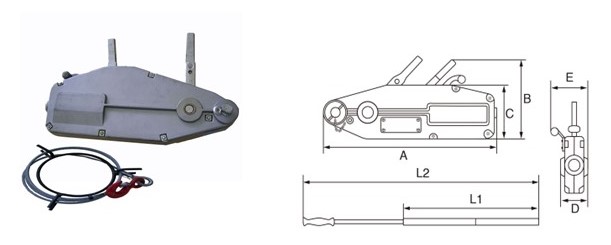

Dimensions(mm)A426545660932
B235280325420
C168190230300
D607291155
E6497116152
L1-800800880
L2800120012001350
  1. Versatile and portable unit for pulling, lifting and extending.
  2. Overload protection provides high safety.
  3. The attached wire rope is high tensile and wear resistant.
  4. Standard pulling machine includes the operating lever and 20M length of wire rope.
  5. Aluminium body and steel body are both available.
  6. Securing loads over long distances.
