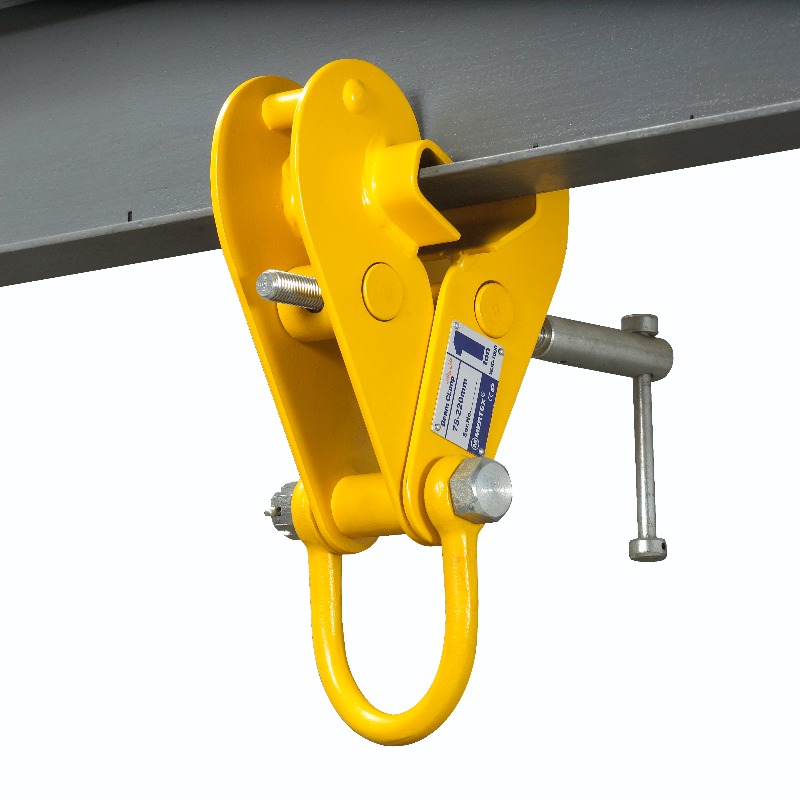

Beam Clamp with Shackle Type WJC

Highly flexible for lifting and pulling.

Product Details

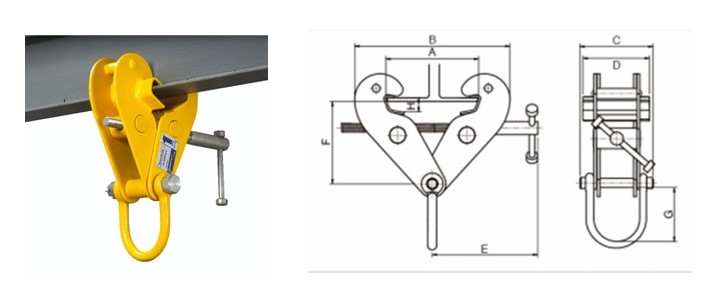

Code	Model	Capacity Load (T)	Test Load (T) [	I-Boam Width Range [mm]	A max	B		C	D	E	F		G	H	Net Weight (kg)
Code	Model	Capacity Load (T)	Test Load (T) [	I-Boam Width Range [mm]	A max	min	max	C	D	E	min	max	G	H	Net Weight (kg)
WJC010	WJC1T	1	1.5	75-220	260	180	330	138	122	220	132	155	88	22	5.5
WJC020	WJC2T	2	3	75-220	260	180	330	156	122	220	132	155	91	22	6.6
WJC030	WJC3T	3	4.5	80-320	390	265	466	195	150	262	178	228	108	35	12.5
WJC050	WJCST	5	7.5	80-320	390	265	466	237	150	262	178	228	108	35	17.5
WJC100	WJC10T	10	15	80-350	390	285	520	310	200	300	186	236	176	35	23

Shackle suspension point.
Suitable for pulling and lifting at angles across the beam.
Up to 45°side loading and 15°cross loading.
Highly flexible for lifting, pulling or as a semi-permanent anchor point.

5.Evenly distributed loads achieved through maximum jaw surface area.
