| Key Features: | |
| 1.Housing Material | |
| Die-casting Aluminum 12 | Excellent heat dissipation, which ensure the fixture's lifetime |
| 2.Lens Material | |
| PC with extremely high light transmittance | Compact, firm and efficient design pass 3G vibration test |
| 3.Optional Driver | |
| Moso / Sosen | Uniform illumination can comfort operators, which increase the efficiency |
| 4.Optional LED Chips | |
| Lumileds / Bridgelux | Special developed Lens with excellent narrow or wide light performace |
| Specifications | |||||||||||||

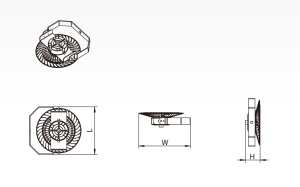

| Model | Wattage (W) | Input Voltage(V) | Frequency | Efficacy (lm/w) | Output (lm/fixture) | Output (lm /tower) | CRI | Beam Angle (°) | IP Degree | Dimension(mm) | Weight (kgs) | ||
| Length | Width | Height | |||||||||||
| GK503/150 | 150 | 100-277Vac /24Vdc /48Vdc | 50/60Hz (AC) | 140-160 | 21000-24000 | 84000-96000 | 70 | 60° /90° /120° | IP65 | 359 | 392 | 110 | 6.6 |
| GK503/200 | 200 | 28000-32000 | 112000-128000 | 430 | 460 | 110 | 7.9 | ||||||
| GK503/250 | 250 | 35000-40000 | 140000-160000 | 430 | 460 | 110 | 8.4 | ||||||
