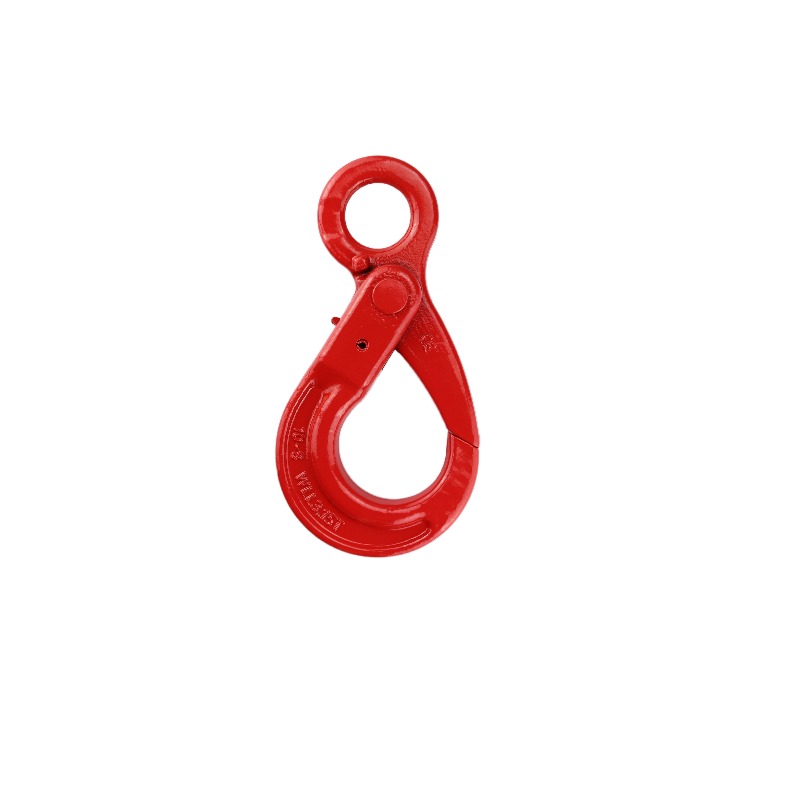

Super alloy steel.
Suitable for G80 EN818-2 chains.

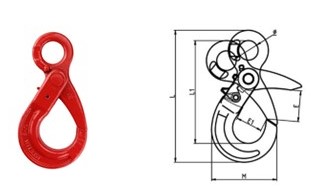

| ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | φ±1.5(mm) | E±2(mm) | E1±2(mm) | L1±3(mm) | L±3(mm) |
| 6-8 | 0.5 | 1.12 | 4.48 | 21 | 35 | 28 | 110 | 140 |
| 7/8-8 | 0.88 | 2 | 8 | 25 | 40 | 35 | 136 | 175 |
| 10-8 | 1.58 | 3.15 | 12.6 | 34.5 | 48 | 45 | 168 | 213 |
| 13-8 | 3 | 5.3 | 21.2 | 40 | 65 | 52.5 | 207 | 268 |
| 16-8 | 5.9 | 8 | 32 | 50 | 65 | 63 | 254 | 332 |
| 20-8 | 7 | 12.5 | 50 | 64.5 | 85 | 85 | 278 | 360 |
| 22-8 | 12.3 | 15 | 60 | 72 | 80 | 76 | 319 | 415 |
| 26-8 | 20 | 21.2 | 84.8 | 80 | 120 | 96 | 362 | 472 |
| 32-8 | 44 | 31.5 | 126 | 105 | 140 | 133 | 470 | 614 |
1.Super alloy steel.
2.Quenched and Tempered.
3.Suitable for G80 EN818-2 chains.
4.100% Magnetic powder inspection.
5.Individually proof load test at 2.5 times WLL.
6.Fatigue test at 1.5 times WLL for 20,000 cycles.
7.Strict breaking test.
8.Surface treatment: Powder coated.
